Beaquicy 5301EL1001A 5301EL1001H Dryer Heating Element Assembly - Replacement for LG Kenmore Dryer - Replaces 5301EL1001J 5301EL1001G 5301EL1001E 5301EL1001U AP5072170
$42.98
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.verifydependents.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$42.98
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.verifydependents.com
Free 30-day returns Details
Product details
| Management number | 217601023 | Release Date | 2026/04/19 | List Price | $17.19 | Model Number | 217601023 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- βπππ ππππ ππππππππ --- ππππππππ πππ ππππ πππ§ππ₯-π¦ππππ¦ π¦ππ₯π©πππ.If you have any quality problem during guarantee period, please contact us in time. We will try our best to solve the problem.Risk-free shopping.βΆThe 5301EL1001A Dryer Heating Element can FIXES FOLLOWING SYMPTOMS β Will not start, β‘Shuts off too soon, β’Takes too long to dry, β£No heat or not enough heat. Replace Part Number: 5301EL1001A, 5301EL1001AJ, 5301EL1001E, 5301EL1001H, 5301EL1001G, 5301EL1001U, AP4439759, 5301EL1001W, AEG72910301, AH3527791, EA3527791, and PS3527791, PS3527791

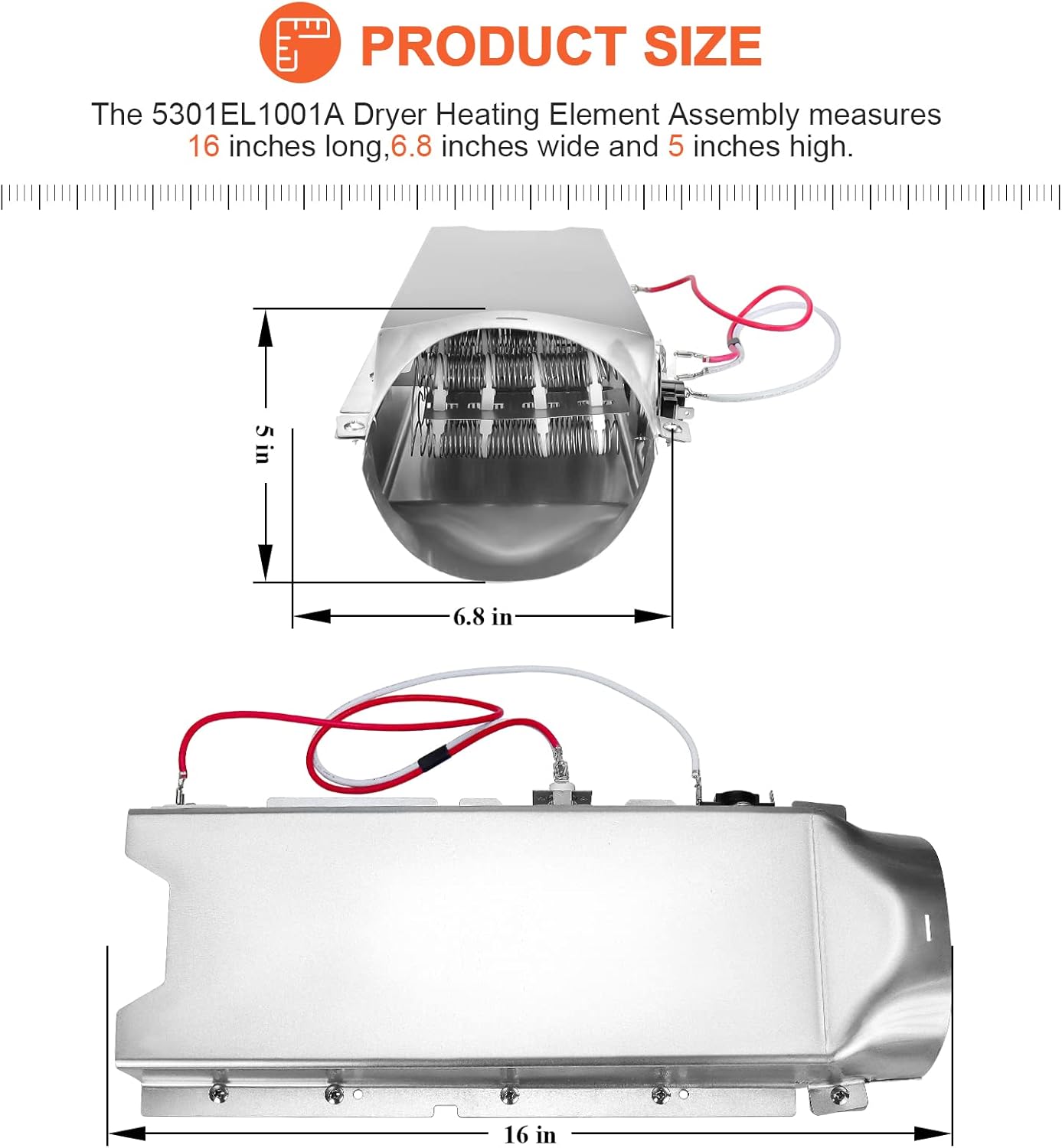

- πππππ πππππππ πππππππππππ ππ πππ πππππ--- The package includes 1 x 5301EL1001A Dryer Heating Element Assembly. It also includes housing, wiring, heater, 6931EL3001E 2-wire Thermostat and 6931EL3003D Thermal Fuse. The lg dryer heating element 5301el1001a is rated at 5400 Watts 240 Volts and has 2- 5/16" male terminals. It is fully assembled in a metal housing for easy installation Hi Limit Thermostat & Thermal Fuse is included and assembled on Heater Housing It has a 5" Round Opening on one side & 5-3/8" x 3-3/4" Rectangle Opening on the other

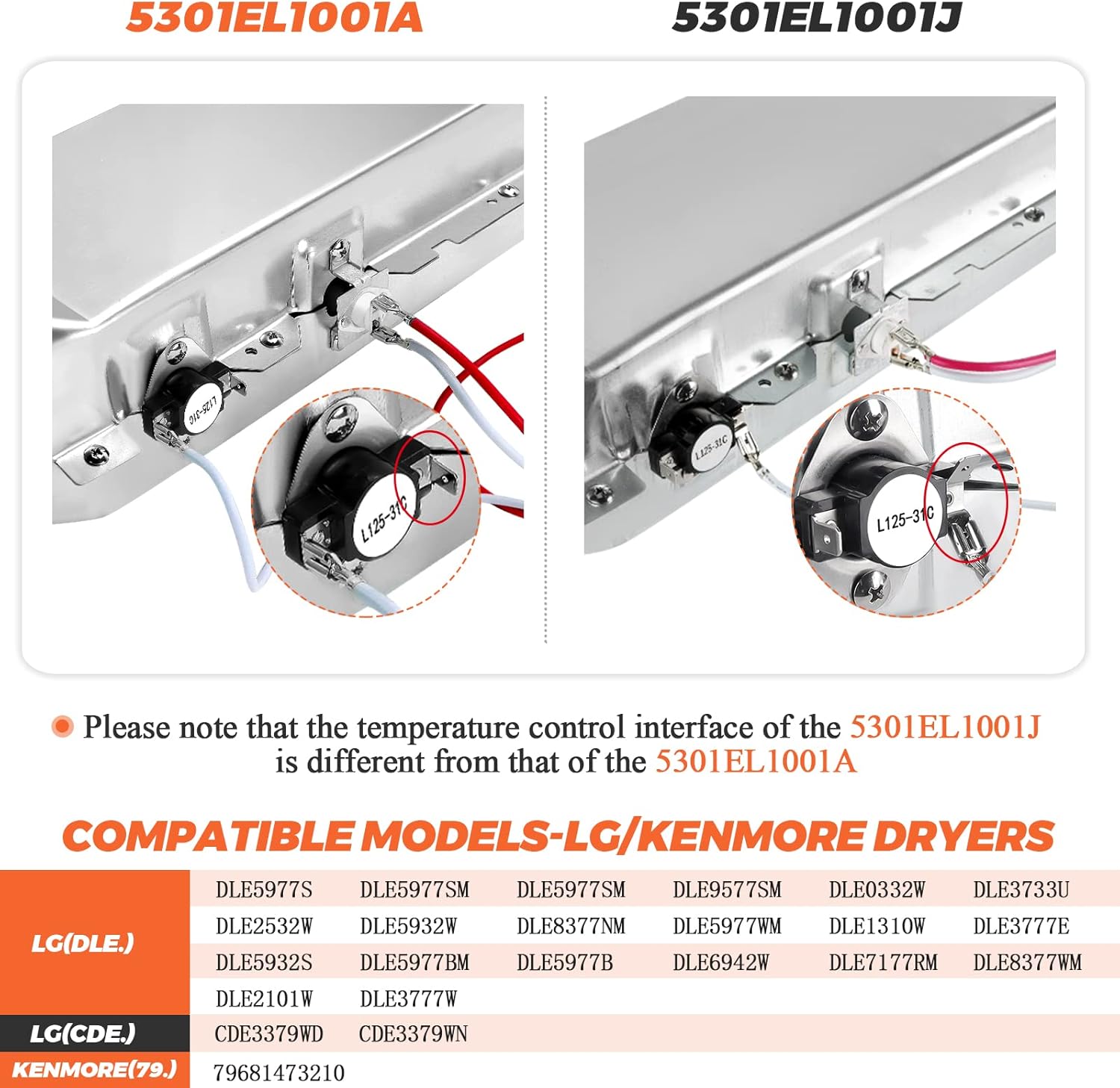

- ππππππ-ππππππππ πππππππ ππ ππ ππ ππ%--- 5301EL1001A Dryer heating element is made of high quality metal, the heating coil contains NICKEL-CHROMIUM content up to 85% heating coil, can generate stable and effective heat continuously in the dryer. lt has a high resistance that prevents itself from breaking and burning out, not easily deformed in high temperature use, effectively prolong the service life. >>>>ππππ If your dryer has three terminals at the temperature control, the 5301EL1001H or 5301EL1001J may be a better fit for your model
- ππππππππ π ππ ππ/πππ§π¦π¨π«π πππππ--- /// 5301EL1001A Dryer Heating Element π ππ ππ ππππππ: 4980461 AP4438941 DLE5977S DLE5977SM DLE9577SM DLE0332W DLE3733U DLE2532W DLE5932W DLE8377NM DLE5977WM DLE1310W DLE3777E DLE5932S DLE5977BM DLE5977B DLE6942W DLE7177RM DLE8377WM DLE9577WM DLE2101W CDE3379WD CDE3379WN DLE3777W DLE0442G DLE0442W DLE0442W01 DLE2140W DLE2240W DLE2514W DLE2515S DLE2516W DLE3733D DLE3733S DLE3733W DLE7177WM DLEX7177RM DLEX7177WM DLEX8377N DLEX8377NM DLEX8377WM etc. /// π ππ πππ§π¦π¨π«π ππππππ: 79681473210.( Refer to figure 5 for more models)
- ππππ ππ πππππππ---Before installing the 5301EL1001A Heating Element,ensure that the dryer has been completely disconnected from the electrical outlet to avoid the risk of electric shock.Prepare screwdrivers and pliers.Remove the rear cover first and carefully disconnect the wires from the heating element.Remember or mark the connection position of each wire to ensure that it corresponds correctly when reconnecting new components.Remove old element and install new heating element.Check that the heating element is firmly installed and the wires are connected correctly.Connect the power supply, turn on the dryer for test, and check whether the new heating element works properly
| Color | Silver |
|---|---|
| Style | 5301EL1001A Dryer Heating Element Assembly |
| Usage | β Prevent the dryer from overheating β‘Prevent the dryer from turning off β’Prevent the dryer circuit from tripping |
| Finish | Metal |
| Wattage | 5400 watts |
| Material | Stainless Steel |
| Item Weight | 4.49 pounds |
| Part Number | 5301EL1001A |
| Manufacturer | Beaquicy |
| Special Features | The 5301EL1001J dryer heating element is made of high quality metal, contains NICKEL-CHROMIUM content up to 85% heating coil, can generate stable and effective heat continuously in the dryer. |
| Item model number | 5301EL1001A |
| Batteries Required | No |
| Package Dimensions | 18.5 x 8.9 x 6.7 inches |
| Included Components | Includes 1 x 5301EL1001A Dryer Heating Element Assembly.It also includes housing, wiring, thermostats, and heater |
| Installation Method | βDisconnect the power to the dryer |
| Warranty Description | The product 5301EL1001A Dryer Heating Element Assembly supports 180 days return and exchange. Our company attaches great importance to the shopping experience of each customer.Risk-free shopping, If you have any quality problem during warranty period, please contact customer service in time. We will try our best to solve the problem. Customer satisfaction is our tireless pursuit. |
