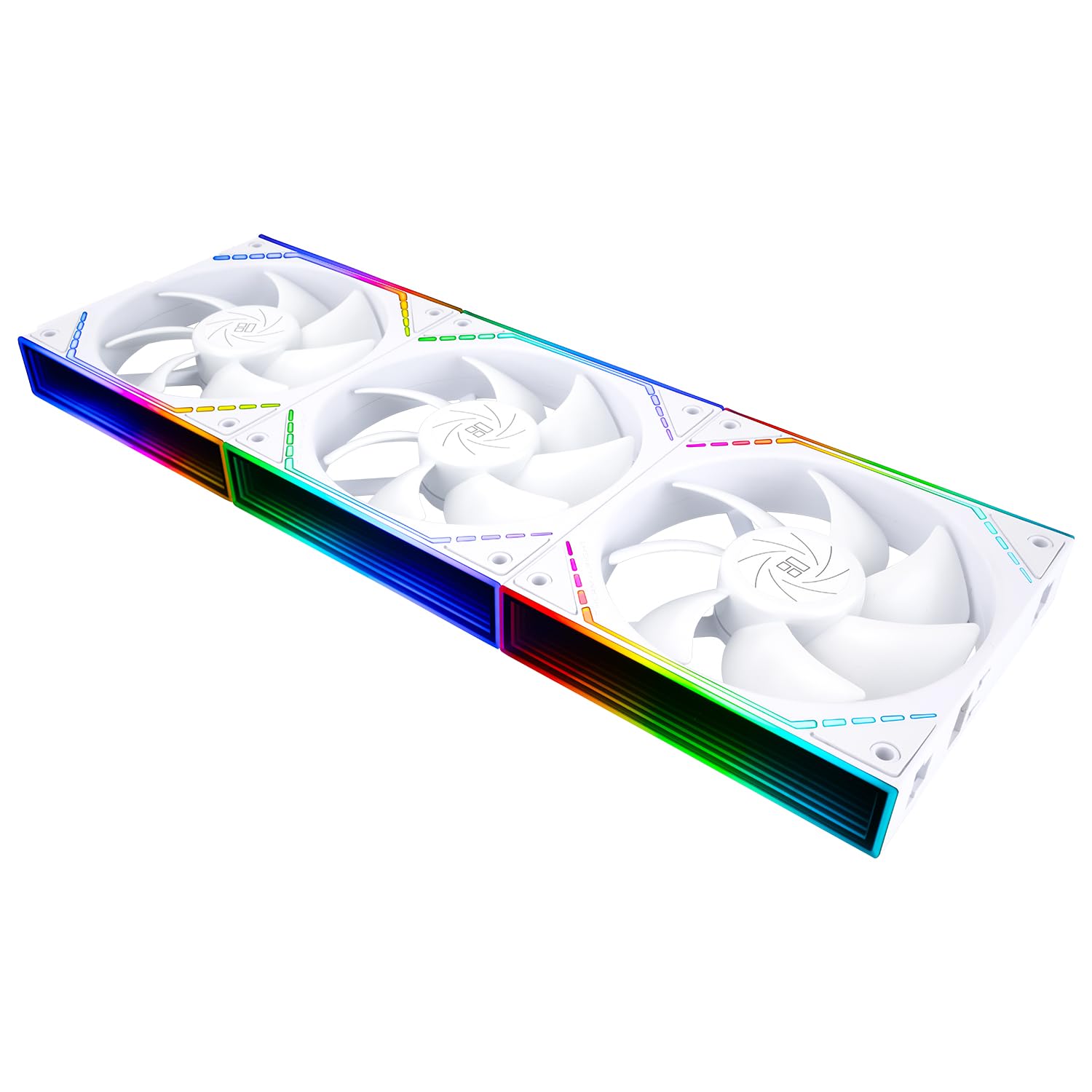

Thermalright TL-M12QR-S X3 Reverse CPU Fan Building Blocks 120mm Case Cooler, PWM Connector Silent Computer Cooling with ARGB Light,Wireless Splicing PC Fan with ARGB Mirror Light Effect,Low Noise
Product details
| Management number | 217033766 | Release Date | 2026/04/19 | List Price | $8.78 | Model Number | 217033766 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [Silent Fan Parameters] CPU Fan size: 124x120x25mm, speed: 1500RPM ± 10%, noise≤23.2DB (A), air volume: 47.6CFM, air pressure: 1.31mm H2O, power supply interface: 4PIN PWM, lighting interface: 5V 3PIN, voltage: DC 12V, current: 0.15A. Higher air flow can improve cooling performance and maintain low noise of the fan
- [Good Bearings] The case fan adopts S-FDB magnetic stable bearings, which solve the problem of blade vibration in lifting mode. The sealing structure of the bearings makes the fan durable, maintenance free, and does not require lubricant maintenance (do not disassemble)
- [ARGB Infinite Mirror] The two sides of the pc fan have an infinite frame structure and a segmented light effect design. There is a slender segmented LED light strip on both sides of the fan frame, giving the fan a rich ARGB lighting effect.
- [ Detail Optimization ] The cooler fan adopts industrial grade strength PBT+PC material with UL CLASSA insulation level, supports PWM series control of the fan, the power interface is 4pin PWM, and the lighting interface is 3pin ARGB. Fans of the same type are connected in series through buckles, and then connected to the corresponding interface of the motherboard through connectors that fasten the wires.
- [ Wireless Splicing ] The new power module cable simplifies wiring and reduces the complexity of internal cables in the chassis, providing powerful power for argb fans. The signals and power are transmitted between fans through contacts (note: the control cable needs to be connected to the side of the fan with pins, do not connect to the other side)
- [Perfect Match ] The CPU fan can not only be used as a chassis fan, but also suitable for pairing with the CPU heat sink to produce a cooling effect, taking away the temperature inside the chassis and the CPU, achieving maximum cooling
| UPC | 756993055519 |
|---|---|
| Brand Name | Thermalright |
| Unit Count | 1.0 Count |
| Noise Level | 23.2 Decibels |
| Manufacturer | THERMALRIGHT |
| Material Type | Aluminum |
| Cooling Method | Air |
| Air Flow Capacity | 47.6 Cubic Feet Per Minute |
| Compatible Devices | Desktop |
| Included Components | Case fan, cpu fan, pc fan, computer cooling fan |
| Power Connector Type | 4-Pin |
| Maximum Rotational Speed | 1500 RPM |
| Item Dimensions L x W x H | 4.88"L x 4.72"W x 0.98"H |
