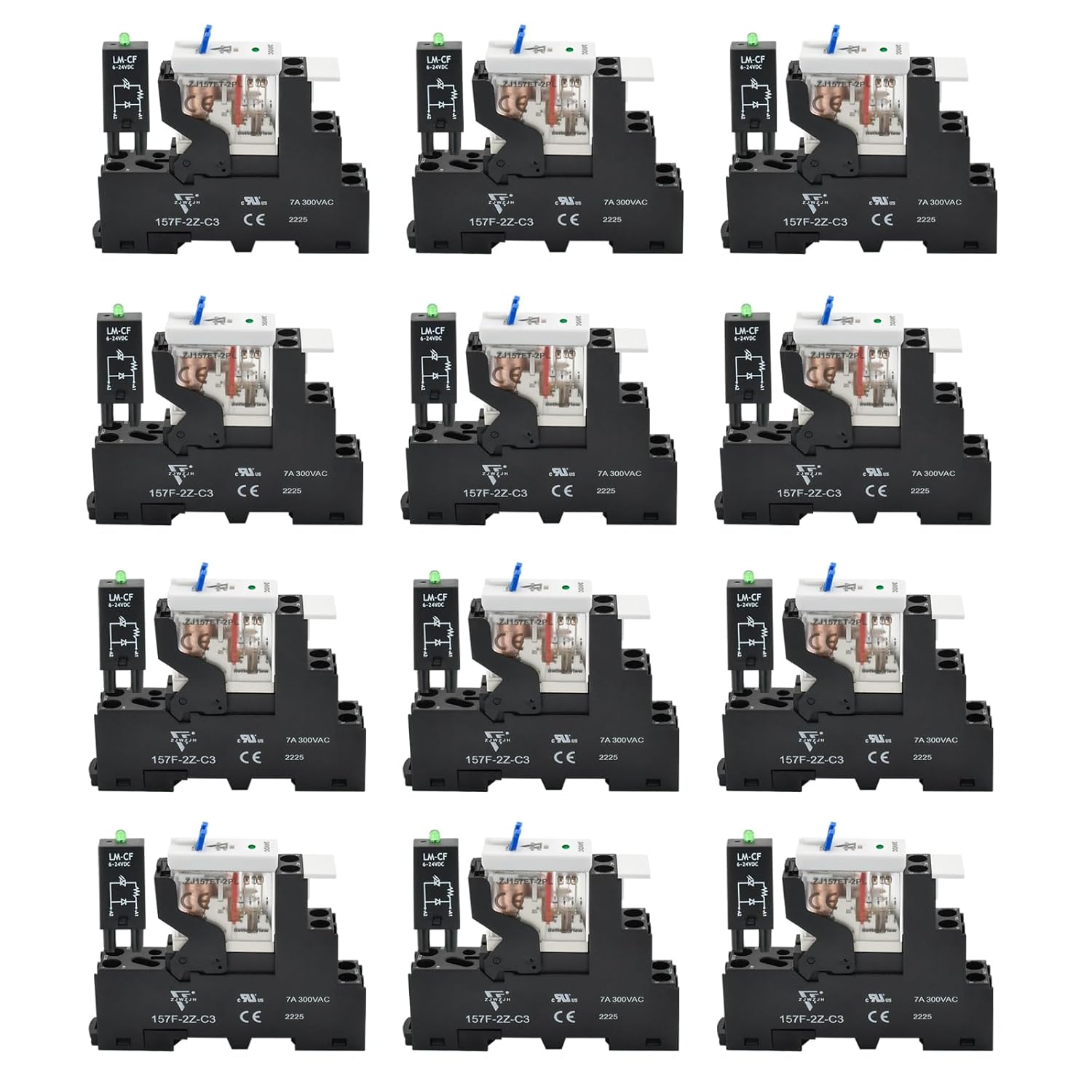

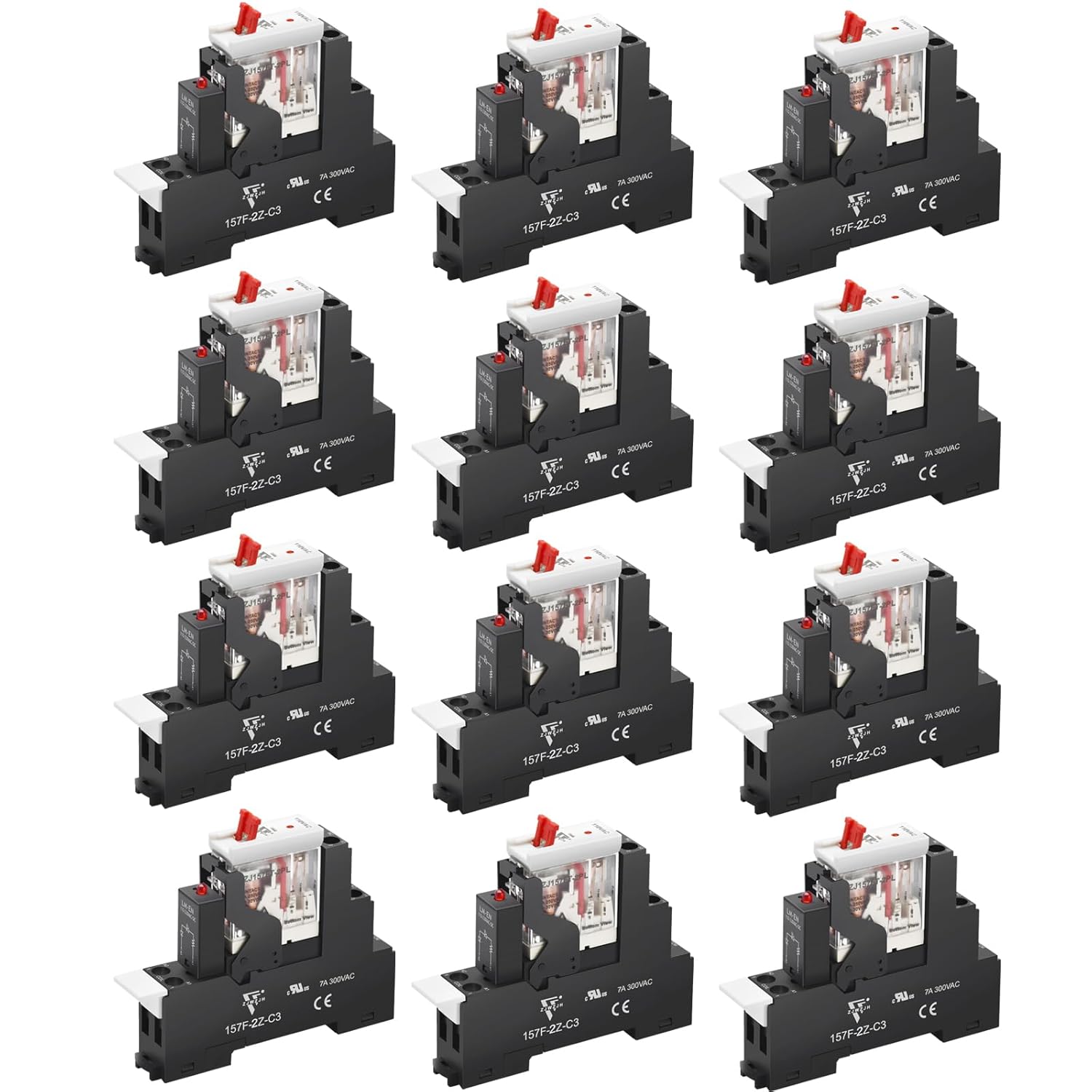

UL Listed 6 Pcs 8Amp Mini Relay Switch 110V-120V AC with Test Button DPDT 2NO 2NC Socket Base with Indicator LED Light UL Certification
Product details
| Management number | 215613643 | Release Date | 2026/04/12 | List Price | $19.00 | Model Number | 215613643 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Package include : Package Content : 6 Electromagnetic Relay, 6 Socket, 2 x Fixing clamp , 1 x DIN Rail, 4 x Screws. Relay Features 1.Small volume, 38.8*12.6*30.4mm, Easy installation 2.Get an electric shock load big: 12A3.[Test key] can be used to manually adjust the instantaneous change of contact state.4.[Frosted shell] The relay adopts a frosted upgraded shell with a toothed structure at the top to increase friction and facilitate plugging.5.[See for safe use of electricity] LED indicator, red represents AC, green represents DC.6.[High quality materials] The relay is made of high quality materials with high sensitivity, strong conductivity, high current carrying capacity and stable overall performance.Contact DataRated Load:1NO 1NC SPDT,12A 250VAC /12A 30VDCMechanical endurance:10,000,000 Times;Electrical endurance:100,000 TimesRated carry current:8 AmpsMax. contact voltage:AC250V,DC30VMax. contact current:12AMax. contact voltage:AC250V,DC30VMax. contact current:12AMax. switching capacity: 1250VA 150WCharacteristicsOperating time ≤20msRelease time ≤10msInsulation resistance ≥1000mΩ （500VDC)Ambient operating temperature:-40℃～+70℃Weight: 123gAmbientl humidity:5%～85%RH
- Our Miniature PCB Power Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state.
- Relay Name:ZJ157FT-2PL; Rated carry current:8 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.Contact:2NO 2NC DPDT 2 Poles.
- Socket Safety Standard:UL (NO.: E238167) ;Socket Name :157F-2Z-C3; Outline Size: 77.8×15.7×61.2mm(3.06*0.62*2.41");Number of plug–in and draw–out ≥500 times .
- Package: 6 Pcs Power Relay ,6 Pcs Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times
- The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,
| Model | ZJ157FT-2P 110V 6 |
|---|---|
| Brand Name | ZJWZJH |
| Item Weight | 0.13 Pounds |
| Part Number | ZJ157FT-2P 110V 6 |
| Coil Voltage | 110 Volts (AC) |
| Contact Type | 2no 2nc |
| Manufacturer | ZJWZJH |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 8 Amps |
| Operation Mode | ON-OFF |
| Contact Material | Silver Alloy |
| Specification Met | CE, UL |
| Included Components | 6 Pcs Power Relay ,6 Pcs Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws. |
| Warranty Description | If you have any question, please be free to contact us. |
| Contact Current Rating | 8 Amps |
| Upper Temperature Rating | 70 Degrees Celsius |
| Maximum Switching Current | 8 Amps |
| Maximum Switching Voltage | 250 Volts (AC) |
| Minimum Switching Voltage | 5 Volts (DC) |
