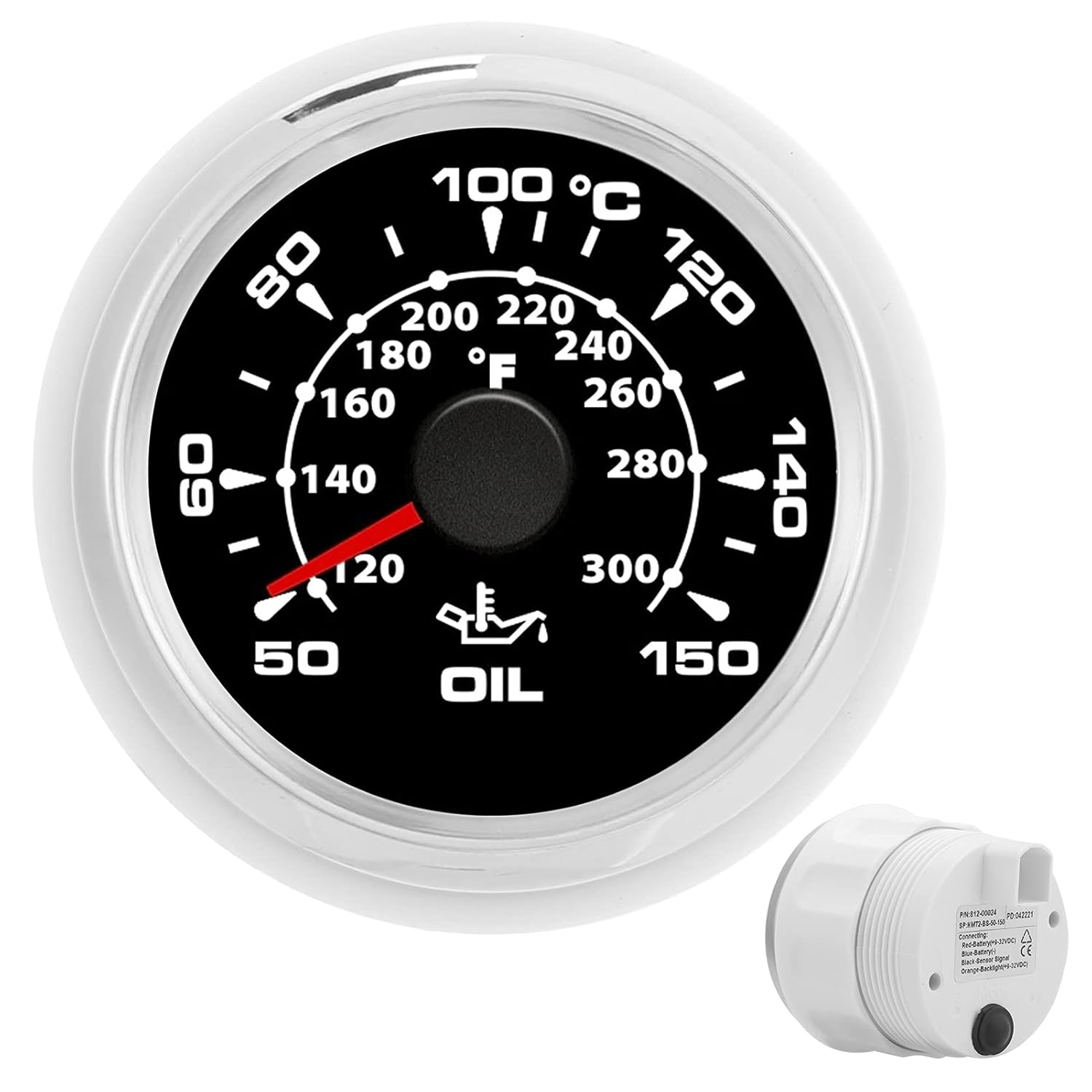

Oil Temperature Gauge, 2in Black Dial Silver Bezel, 50-150℃ Range - IP67 Waterproof, 8 Color Backlight, Wide 9-32V Voltage

Item Type: Oil Temperature GaugeMaterial: Stainless Steel 316L Bezel + Anti-Fog GlassColor: Black Dial Silver Bezel Functions: Display current Oil TempOperation Mode: Stepper MotorInstallation Diameter: Approx. 52mm/2inWorking Volt: 9-32V(12V/24V)Signal: 361-19ohmRange: 50-150℃Operating Temperature: -30℃-+75℃Storage Temperature: -40℃-+85℃Protection Class: IP67, can work underwater 1m positionBacklight: 8 Colors: red, green, blue, white, yellow, olivine, orange, purple, totally 8 kinds different backlight color,it will change automatically every 1 minute,or you can fix only one color that you like through press the gauge back ''set'' buttonHow to Use: Fix the meter on the instrument panel and connect the power cordWiring:The red wire is connected to the positive poleThe blue wire is connected to the negative poleThe black wire is connected to the sensorThe orange wire is connected to backlightInstallation Notes:1. Cut a hole 52mm in diameter in the panel (your engine room panel and instrument panel) and insert the meter into the hole corresponding to the panel marked with a and make a small notch in this position to ensure at least 52mm (2in) instrument panel on the back of the instrument.2. After installing the instrument into the panel, screw down with the fixing ring3. Connect the wires, the instrument shell is directly connected to the 12/24V power supply4. Insert the wire harness and fix it firmly on the tablePackage List：1 x Oil Temperature Gauge1 x Power Wire Harness1 x Manual

• 【Accurate Signal Monitoring】: Equipped with 361-19ohm signal input for precise oil temperature readings between 50-150℃, ideal for engine, generator, ship, and vehicle modification applications.
• 【Precision Stepper Motor】: High-torque stepper motor drive ensures smooth, low-power needle movement and long lifespan, supporting continuous 9-32V operation (peak to 36V for up to 1 minute).
• 【Premium Materials】: 316L stainless steel bezel resists in , alkali, and humid environments, while anti-fog curved glass delivers clear, distortion-free readings under all conditions.
• 【Customizable Backlight】: Choose from 8 vivid colors—red, green, blue, white, yellow, olivine, orange, purple—with automatic rotation every minute or lock your favorite hue via the rear “set” button.
• 【Rugged Protection】: IP67-rated waterproof and design withstands 1m underwater submersion, secure snap-in harness and vibration- mounting ring ensure reliable performance under harsh conditions.
