Car Ignition Coil Tester,ROYHH QDB-3A Drive Automobile Ignition Coil Tester Injector Solenoid Valves Idling Stepper Motor Instrument Car Fault Detector Solenoid Valves Tester
Product details
| Management number | 215319611 | Release Date | 2026/04/12 | List Price | $18.74 | Model Number | 215319611 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Name: Ignition Coil Tester Material: ABS PWM drive: Solenoid valves/lgnition coil/Solenoid Injector Step motor drive: Idle motor nstrument panel motor/Urea pump step motor PWM signal drive: 3-wire ignition coil/3-wire Urea pump motor/Electronic fan Signal output simulation: Air conditioner pressure sensor/Rail pressure sensors/Flow sensors Multimeter function: Resistance measurement/Voltage measurement Power input: 9-26V/100W Power output: Max 2.5A current VADJ output: 1.25-14.5V, max 1.5A current PWM drive: 1-100KHz frequency/0-100% duty/max 3A current PWM signal: 1-100KHz frequency/0-100% duty/1.25-14.5V VPP Step motor: Max 1.5A OTR: 0-55℃ Item size: 165 * 96 * 26mm / 6.50 * 3.78 * 1.02in Package size: 150 * 100 * 60mm / 5.91 * 3.94 * 2.36in Package weight: 550g / 1.21lbPacking List: 1 * QDB-A3 Ignition Coil Tester 1 * Power Cable 3 * Test Connection Cables 3 * Single Plugs 1 * Idle Speed Stepper Motor Plug 1 * Stepper Motor Welding Cable

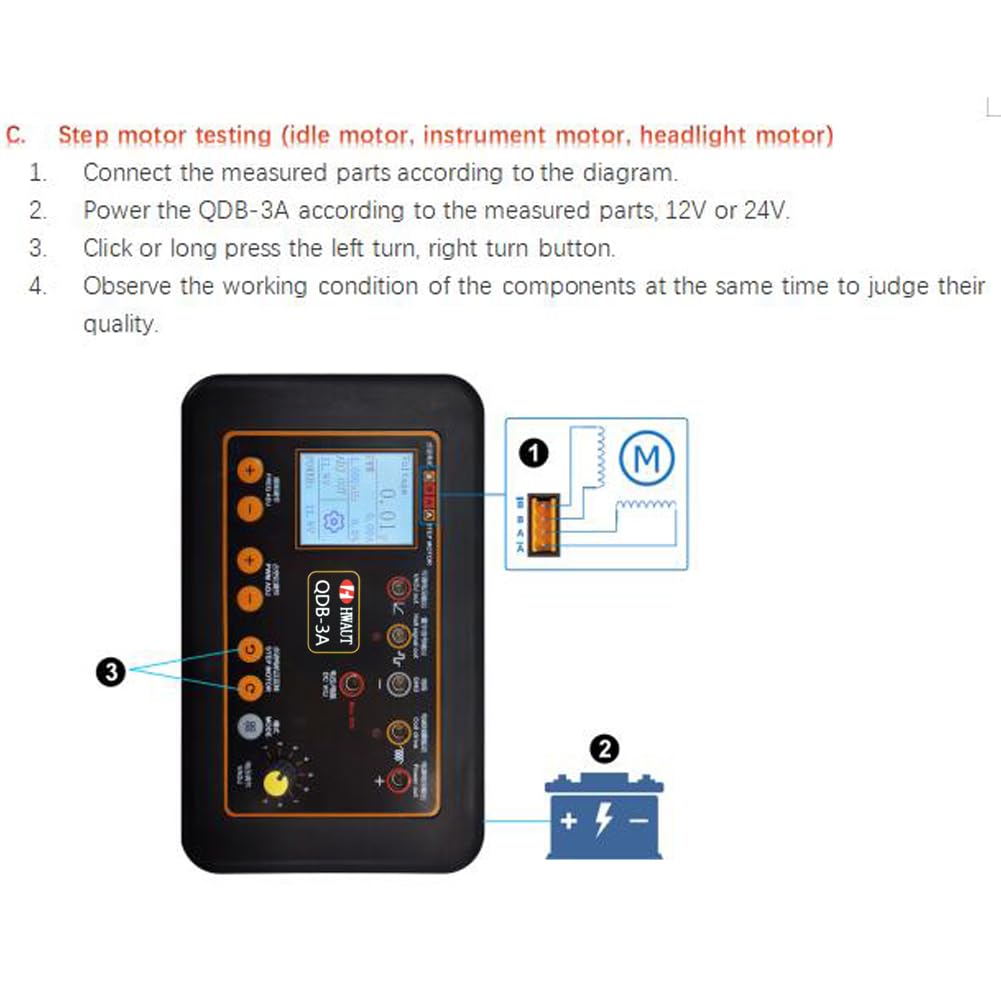

- 【Versatile Testing Capabilities】: This product can drive and test various parts, including ignition coils, fuel injectors, solenoid valves, fuel metering valves, idle stepping motors, instrument stepping motors, headlight follow-up steering stepping motors, and urea pump motors, to meet the testing needs of a variety of automobiles, making it suitable for a variety of automobiles.
- 【High Precise Simulation】: The Hall signal with adjustable output frequency, amplitude, and duty ratio can accurately simulate various duty cycle sensors such as air conditioning pressure sensors and air flowmeters.
- 【Enhanced Safety Features】: The powersupply voltage ranges from 12 to 24V, with reverse connection and overcurrent protections to ensure the safety of the equipment during use.
- 【Wide Adjustment Ranges】: The electromagnetic coil driving current ranges from 0 to 3.5A, the output frequency ranges from 1HZ to 100KHZ, the duty cycle adjustment is 1%-100%, and the adjustable voltage is 1.25V-11.5V, catering to different testing requirements.
- 【User-Friendly】: Easy to operate, all parameters are adjustable, making it easy to operate even for those without professional knowledge.
| UPC | 765041992546 |
|---|---|
| Brand Name | ROYHH |
| Manufacturer | ROYHH |
