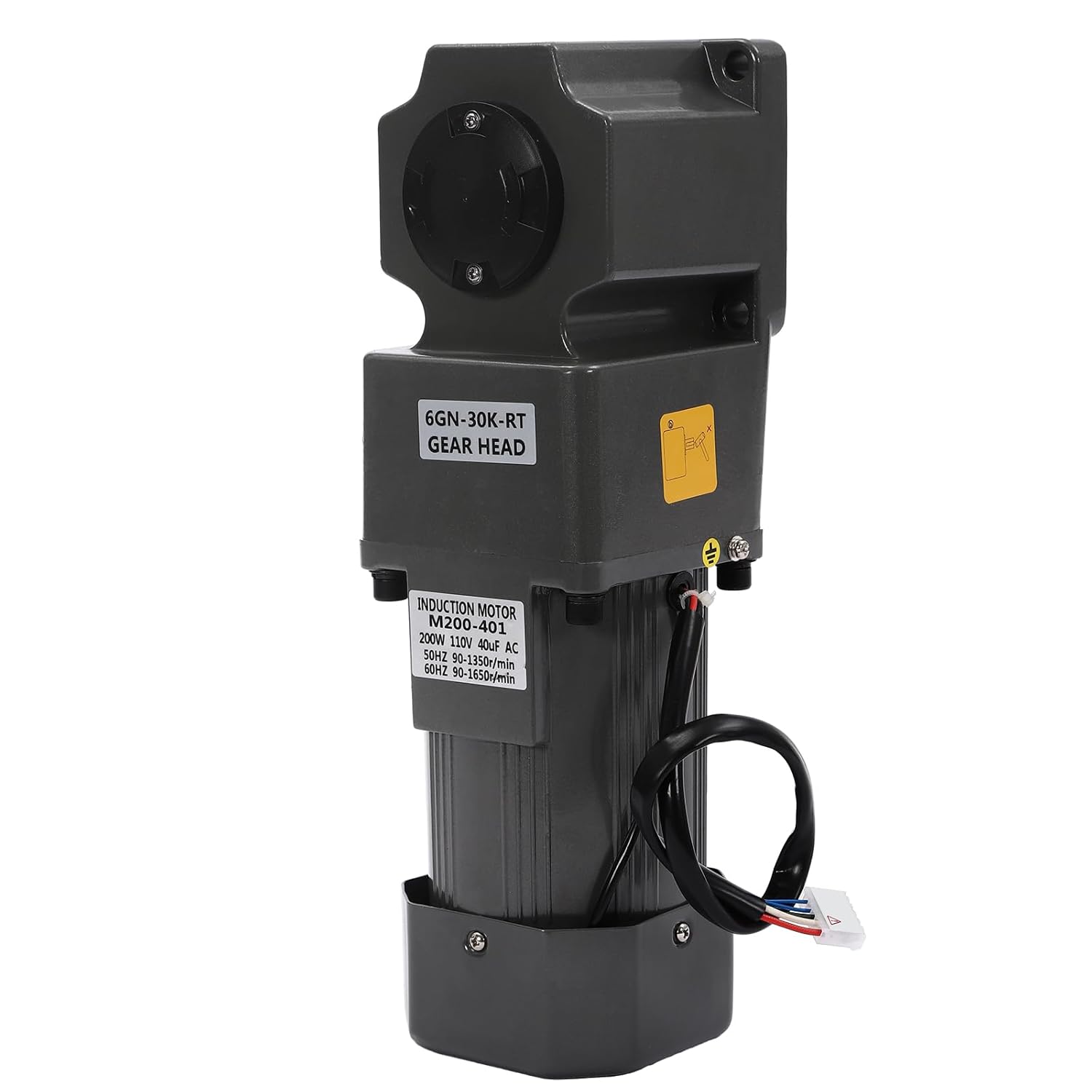

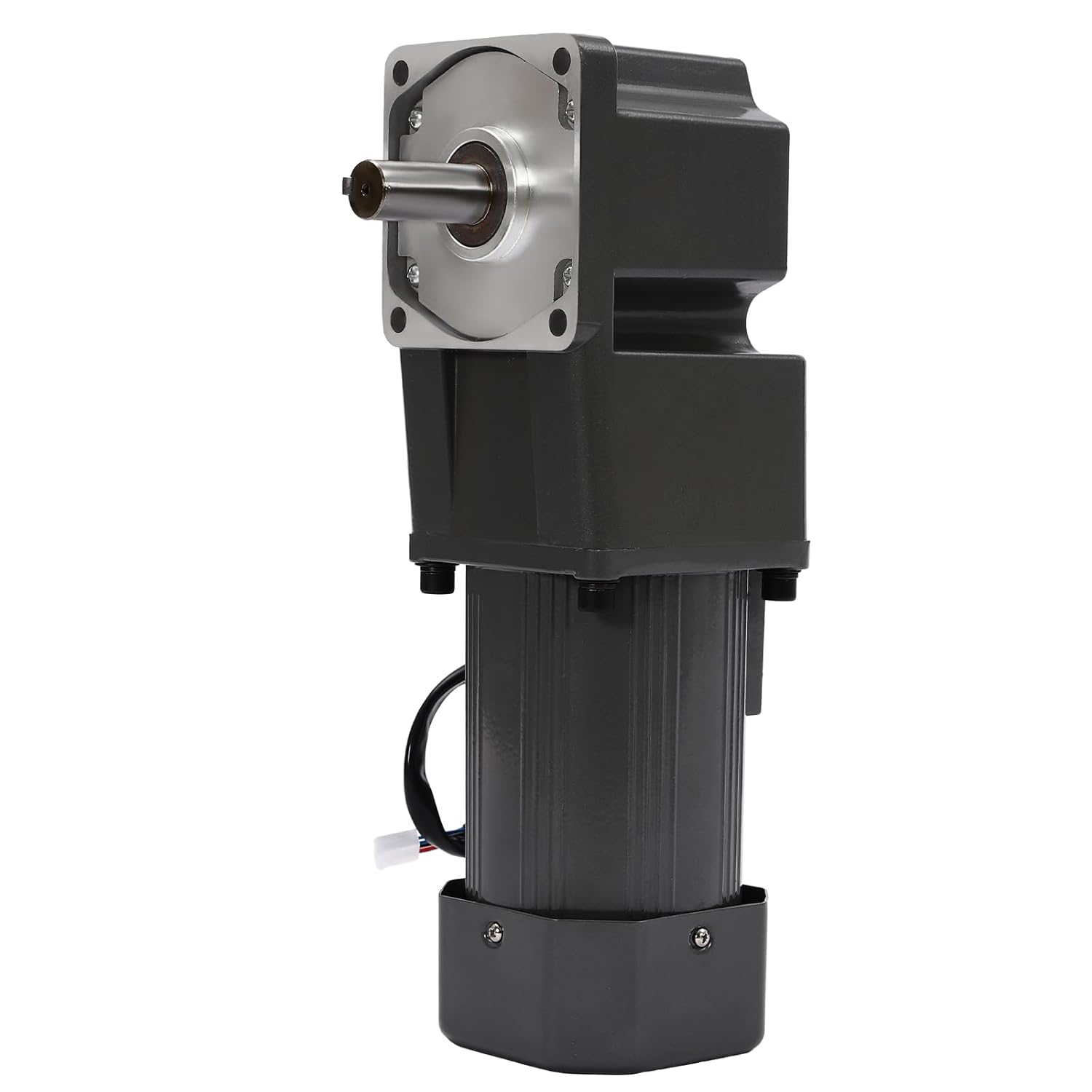

200W Adjustable Speed Gear Reduction Motor Kit, 90° Right Angle Output, 45RPM 30K Gears Head Induction Motors Angle Output Shaft for Engineering Machinery Equipment

SpecificationMaterial: Medium Carbon Tempered SteelColor: Dark GreyProcess: Plastic Spraying, One-piece Forming, Heat TreatmentType: Medium Solid MotorReduction Ratio: 1:30 (30K)Power Supply: WiringVoltage: 110VPower: 200WTorque: 36NMRotational Speed: 45R/MINOutput: 90° Right Angle OutputGross Weight: 10kg/ 22.05 lbs Net Weight:9kg/19.84lbsTotal Height: 34.4cm/13.54 inReduction Box Size: 10.4*10.4cm/4.09*4.09inGovernor Size: 10*6*9cm/3.9*2.4*3.5inPackage Size: 35*16.5*14.5cm/ 13.78*6.5*5.71 inPackage Included1 * Speed Reduction Motor1 * Speed Governor 1 * English ManualAll Accessories for InstallationNotes1. Our motors do not include the power cord and the bracket.2. Please do not plug and unplug the power cord with the power on. Please do not knock on the machine.3. The speed reduction motor is composed of a motor and a speed reduction gear. Different speed ratios can achieve different speed regulation ranges, and they have different strengths.4. The speed of the output shaft is different under different reduction ratios. When the gearbox decelerates, the higher the reduction ratio, the higher the force. The slower the speed regulated by the governor, the lower the torque.5. The motor can run for a long time within the safe speed regulation range. The safe speed regulation range for small loads is 50% of full speed-full speed. The safe speed regulation range for large loads is 70% of full speed-full speed.6. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

• 【 High Efficiency 】 The 200W high-efficiency motor offers a powerful rotational speed of 45rpm, simplifying tasks and saving precious working time. Built-in cooling fan, bottom heat dissipation window design, stable pure purple copper coil for effective heat dissipation and preventing overheating, ensuring consistent performance even under heavy load.
• 【 Speed Regulation & Reversing Function 】 High speed regulation accuracy and wide speed regulation range. Different speeds can be adjusted according to different applications, from precision work to heavy-duty operation. This product features a flexible normally open and normally closed control system. By replacing the wires or adding switches, it offers you greater freedom of use.
• 【 High Torque 】 The stable pure purple copper coil and gear set, composed of full ball bearings and medium carbon tempered steel gears, can effectively increase the motor's torque, providing you with a smoother and more powerful operation. The 5GU gear adopts vacuum plasma nitriding, which is of high strength. The keyway of the shaft is equipped with fixed key pins, which are wear-resistant and stable. The gearbox is equipped with solid lubricant inside, ensuring smoother rotation.
• 【Speed Range】 The lower the governor's speed, the slower the speed, the smaller the force. The normal reasonable speed range is 50%~100%. The larger the speed ratio, the slower the speed, the greater the force; the smaller the speed ratio, the faster the speed, the smaller the force. (Example: Both are 20 revolutions, but the 20 revolutions directly from the reducer are 2-3 times smaller than selecting a 40 revolution and then adjusting to 20 revolutions.)
• 【 Multi-Scenario Application 】 One motor, Infinite possibilities! This product can be used in construction machinery for packaging, printing, textile, dyeing and printing, chemical, food, pharmaceutical and other industries, as well as in equipment for advertising, office, petrochemical, instrument and meter, stage lighting, transmission, automated warehouse, parking lot, etc.
