13" Electric Steel Roller Thermal Laminator Automatic Single/Double Sided Hot Laminating Machine, with Conveyor Belt & Winding Collection, 70-130˚C, 5m/min Laminating Speed for Prints Photos

Specification Max Laminating Width: 350mm (13.78in) Laminating Speed: 5m/min Laminating Temperature: 70-130˚C Power Supply: AC110V 50/60Hz 18A Heating Power: Single side 850W / Double side 1800W Heating Mode: Steel Roller Internal Heating Laminating Mode: Single-sided or double-sided laminating Operation Mode: Automatic mode or foot switch control Paper Feeding Mode: Conveyor belt Paper Discharging Mode: Winding collection Size of Laminator: about 23.62x35.04x22.05 inches Net weight: 114.64LBS Package included: (120121) 1set 110V 13" Electric Thermal Laminator Machine Operation Method 1. Turn on the Power switch, turn the Motion switch on the forward position and turn the control switch on the Foot control position. 2. Install the film rolls on the supporting rods and fix the film rolls at the center position, make sure the adhesive side of film to face away from rollers. The top and bottom film rolls should be aligned with each other if doing double-sided lamination, which prevents the exposed adhesive from making contact with the rollers. Install the winding roll on the winding supporting rod to collect the finished products. 3. Thread the film according to the Diagram. 4. Use a lead board to evenly push the film into the main roller nip. Pull the film by the pull rollers while pressing the Foot switch. 5. Set the laminating temperature to a certain degree (normally 70~100℃) according to the nature of film. You need to adjust it to get the good laminating result. Do not set the temperature over 115˚C to avoid damaging the laminator. After the work of laminating is finished, always lift up the upper steel roller to prevent the bottom roller from deformation and damage. 6. Clean any adhesive that may stick to the main rollers to prevent the adhesive from accumulation.

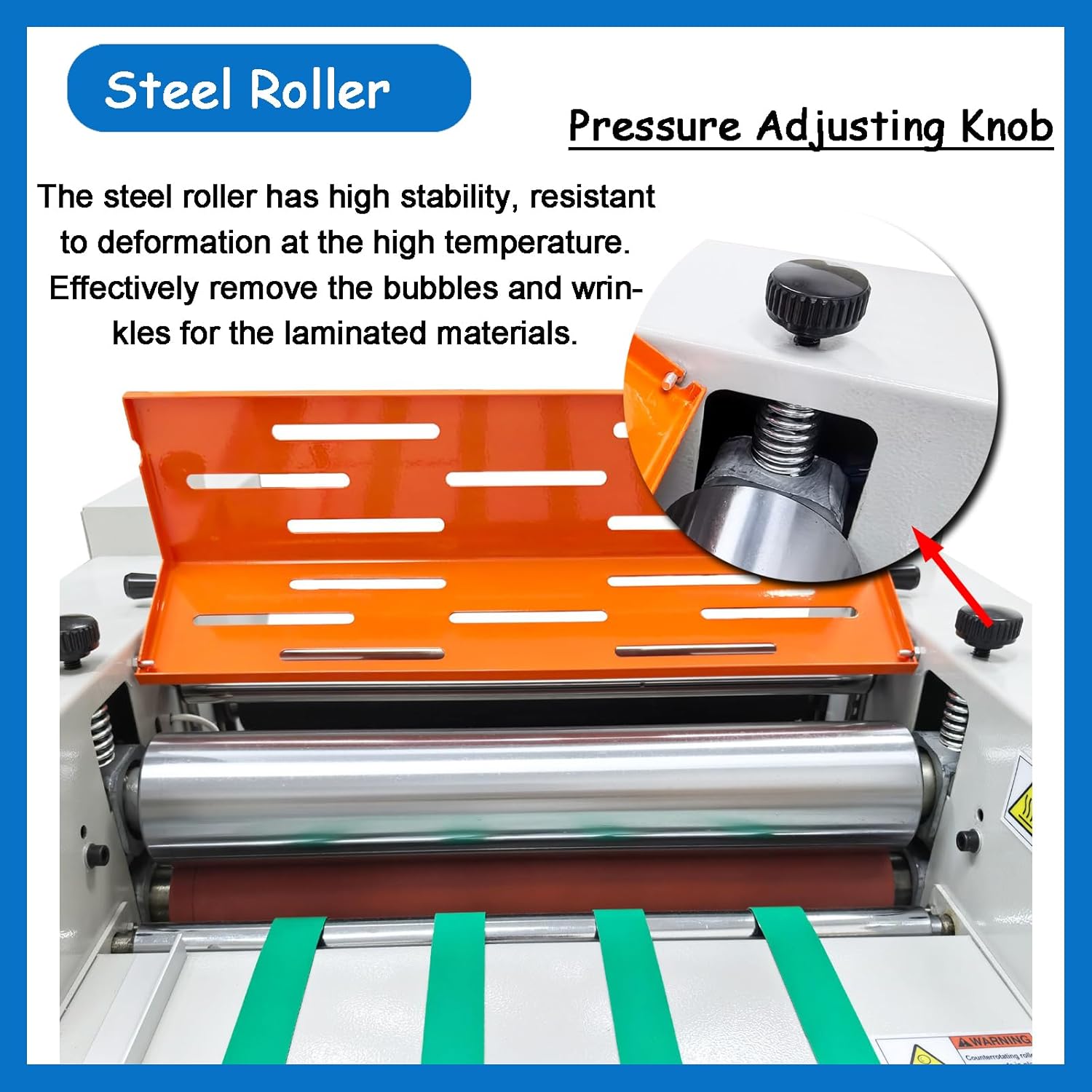

• Professional Steel Roller & Adjustable Pressure: This electric thermal laminator features an upgraded internal steel roller heating system with high thermal conductivity, stability, and deformation resistance. The pressure between rollers is easily adjustable by the black knob to eliminate bubbles, ensuring a perfect, smooth finish on various materials.
• Dual-Sided Laminating & Precise Digital Control: Our laminating machine supports both efficient single-sided (850W) and double-sided (1800W) laminating. The digital temperature controller allows for precise heat adjustment (70-130°C), with clear display for accurate settings to meet different film and material requirements.
• Automatic Conveyor Belt & Anti-Deviation Guide: This roll laminating machine is equipped with a large conveyor belt for smooth, stable and continuous automatic feeding of the materials. The integrated paper baffle effectively prevents material deviation during the process, ensuring precision and improving overall laminating efficiency.
• Integrated Winding Collection System: The laminator is equipped with a finished product winding mechanism, which can wind and collect the finished laminating product orderly and neatly. The finished laminating products can be prevented from scattering and deformation, so the laminating quality is well ensured.
• User-friendly Design: Adopt the hollow protective cover, ensuring operator safety by preventing scalds while the user can easily observe the roller and convenient for heat dissipation. Also with foot pedal, the user can choose between automatic operation or foot pedal switch for flexible control of laminating speed.
• Versatile Applications: The electric steel roller laminator is a special laminating machine for single-sided and double-sided laminating operation, designed for high-quality clear lamination of prints, presentations, menus, documents, book covers, photos, ect. Suitable for the industries of printing, packaging, manufacturing and so on.
