TECHTONGDA 17.72in Thermal Roll Laminator with Conveyor Belt and Winding Mechanism, Single & Roll to Roll Hot Laminating Machine, Stepless Speed Adjustable 0-15m/min, Steel Roller Laminator

Product Overview The automatic steel roller thermal laminating machine is a professional and efficient laminator, which can continuously press the films (BOPP film, pre-coating film, protective film, etc.) with the printed matter to make the printed matter have smooth surfaces, bright colors and clear lines. It has the advantages of resisting water, keeping cleanliness and increasing the strength of the paper. The machine is applicable to paper, packaging cartons, ABS coils, non-woven materials and so on, is an ideal device for improving the printing product quality. Product Parameters Model: ZXFM-520J Maximum laminating width: 450mm (17.72in) Applicable material: ≤8mm (0.31in) in thickness Laminating speed: 0~15m/min (0~49.21ft/min) Stepless variable frequency speed regulation Laminating temperature range: 0~140˚C Pressure range: Cam Spring type Pressurization Heating mode: Electric heating built-in mirror tube Feeding frame: Conveyor belt type automatic feeding frame Collecting and unwinding frame: Manual deviation correction fine adjustment film unwinding frame, backing paper winding, discharged material winding Voltage: 110V Total power: 2Kw Machine size: 90*142*110cm (35.43*55.91*43.31 inches) Net weight: 159KG (350.53LBs) Item Included (120130): 1 x Steel Roller Thermal Laminator 110V

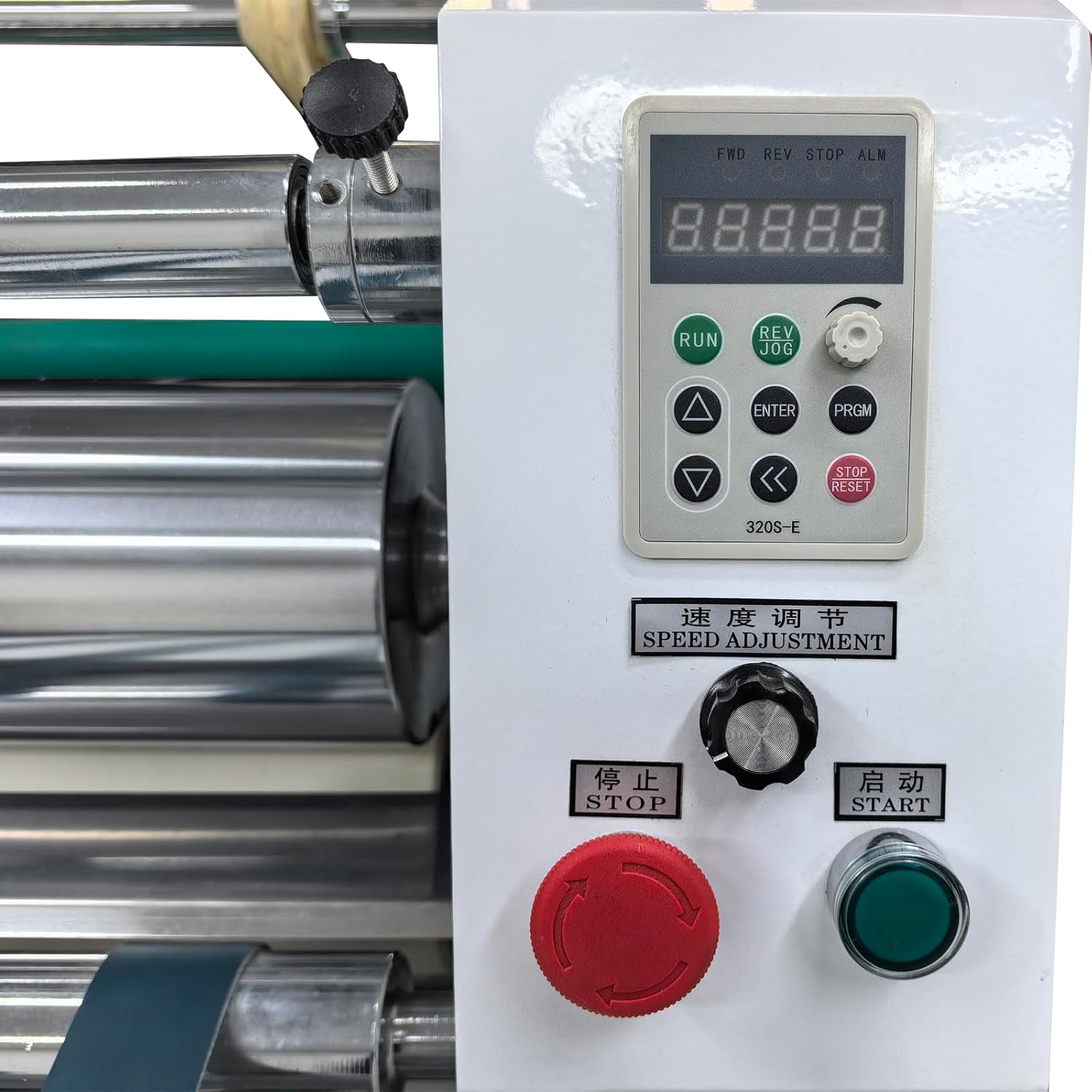

• Variable Speed Control: Equipped with stepless variable-frequency speed regulation, the thermal laminating machine offers adjustable speed from 0 to 15m/min (0~49.21ft/min), adapting to different lamination needs. The variable-frequency speed regulation controller can clearly display the adjusted frequency and convenient to observe.
• Precise Temperature Control: The built-in temperature regulator enables precise adjustment of heating temperature (0~140˚C) with clear digital display of present and set temperatures, allowing real-time monitoring of heating status. The electric heating built-in mirror tube ensures uniform heat distribution for consistent lamination quality.
• Conveyor Belt & Transmission Mechanism: The lengthened conveyor belt mechanism is adopted to achieve automatic feeding of paper, the feeding process is smooth and stable. The high-quality chain and chain wheels are adopted to achieve meshing transmission so as to ensure smooth operation of the conveyor belt mechanism.
• Multiple Adjustment Settings: The winding force adjustment wheel is designed specifically to effectively adjust the winding force of the winding mechanism, ensuring uniform material winding. The tension adjustment mechanism is used to achieve precise tension control of film rolls and can automatically compensate for tension fluctuations.
• Professional Laminating Effect: Our automatic steel roller thermal laminating machine is designed to deliver high-quality lamination results, continuously pressing BOPP film, pre-coating film, protective film, and other films onto printed matter. The steel roller laminator is applicable to paper, packaging cartons, ABS coils, non-woven materials.
