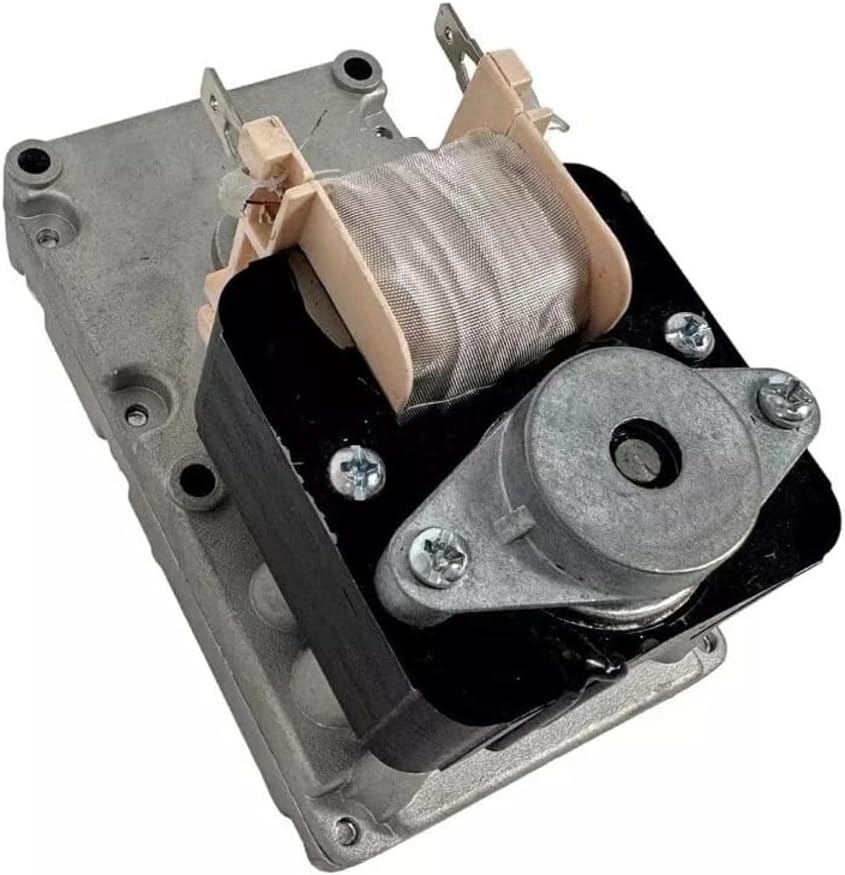

1 RPM Auger Motor 4515UI-050, PU-047040,Replacement for Merkle Korff OEM

1 RPM Auger Motor

• This motor will replace factory part number PU-047040. For the units specified that will use this motor as the auger motor, it will be the correct replacement for the upper or lower motor. For multi-fuel units that have 10-CPM, 49-SHCPM, 49-SHCPML or 49-TRCPM in model number, this will be the agitator/stirrer motor. Please see our model notes for specific details.
• This is a 1 RPM counter clockwise direction (facing shaft) sealed bearing motor assembly. This motor has electrical tabs directly on the motor. If you are replacing a motor with wire leads, please see our related listings. This gearbox motor has a solid shaft to secure with the auger collar set bolt as well as a hole drilled in the shaft for cotter/set pin installations.
• Electrical: 120V, 60 HZ, 1.03 Amps, Continuous Duty. Direct Electrical Tabs/Spades on the Motor. It doesn’t matter which wire connects to which lead.
• Size: 3/8” Diameter x 1” Length Shaft. Gearbox Measures 2-¾” Wide x 4-5/8” High x 1” Width (Width to screw mount hole 1-5/16”) Total width including magnet, armature and gearbox measures 2-1/8”.
