Rainfall Sensor Rain Barrel Sensors Rainwater Automatic Sensor Pulses Low Power Consumption Weather Station Transmitters(0.5MM-0-2V)
Product details
| Management number | 214775476 | Release Date | 2026/04/12 | List Price | $49.24 | Model Number | 214775476 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

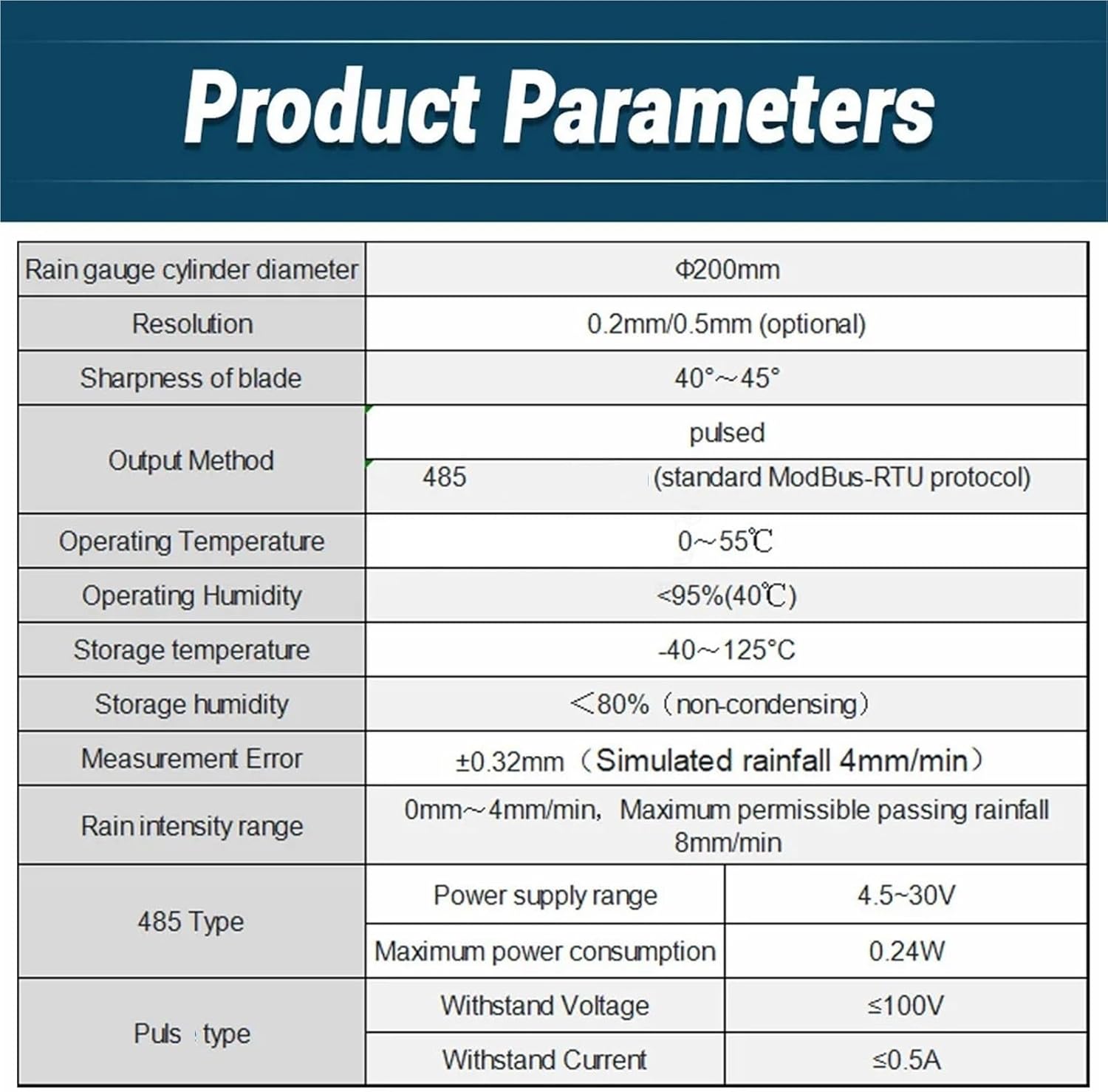

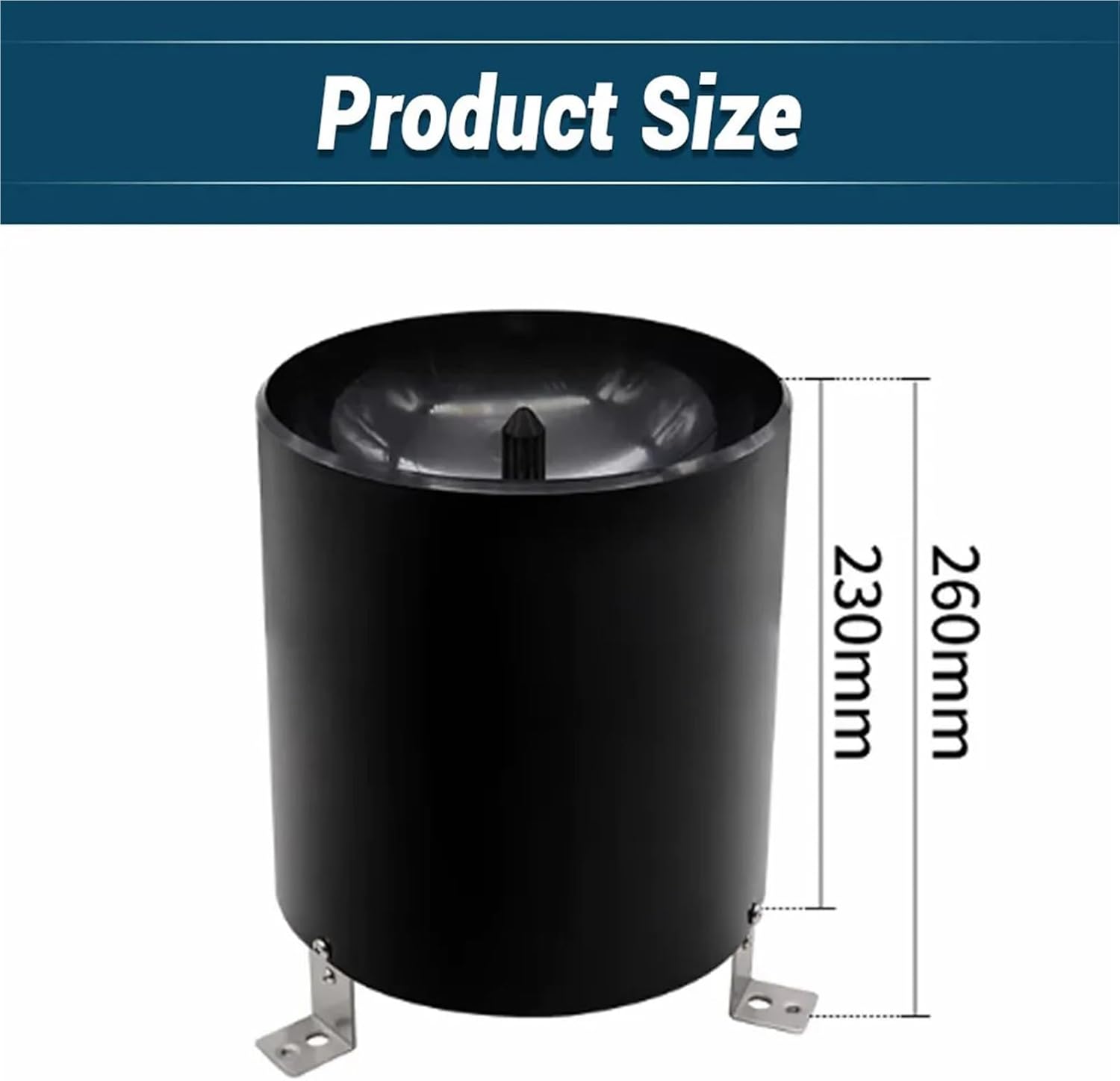

Rainfall Sensor Rain Barrel Sensors Rainwater Automatic Sensor Pulses Low Power Consumption Weather Station TransmittersTechnical parametersSize of rain-bearing mouth: 200mm; sharp edge angle: 40-45Resolution:0.2/0.5 mmRainfall intensity range: 0mm-4mm/min (maximum allowable rainfall of 8mm/min)Accuracy: ± 3%Output Signal: A: voltage signal (0-2v, 0-5v, 0-10V)B: 4-20mA (current loop)C: RS485(standard Modbus-RTU protocol, device default address: 01)D: Pulses Signal (one pulses represents 0.2/0.5 mm rainfall)Supply voltage: 10-30V DCOperating Temperature: 0 ° C ~ 70 ° C (optional heating function, can be as low as ~ 40 °C)Working humidity:
- Less wear and long service life
- No angle limit, can measure wind speed and direction data at the same time
- Adopting the random error identification technology, the low discrete error of the measurement can be ensured under the strong wind to make the output more stable
| Department | unisex-adult |
|---|---|
| Item Weight | 3.31 pounds |
| Manufacturer | SKESTORE |
| Number of pieces | 1 |
| Assembly required | No |
| Item model number | SKESTORE |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
