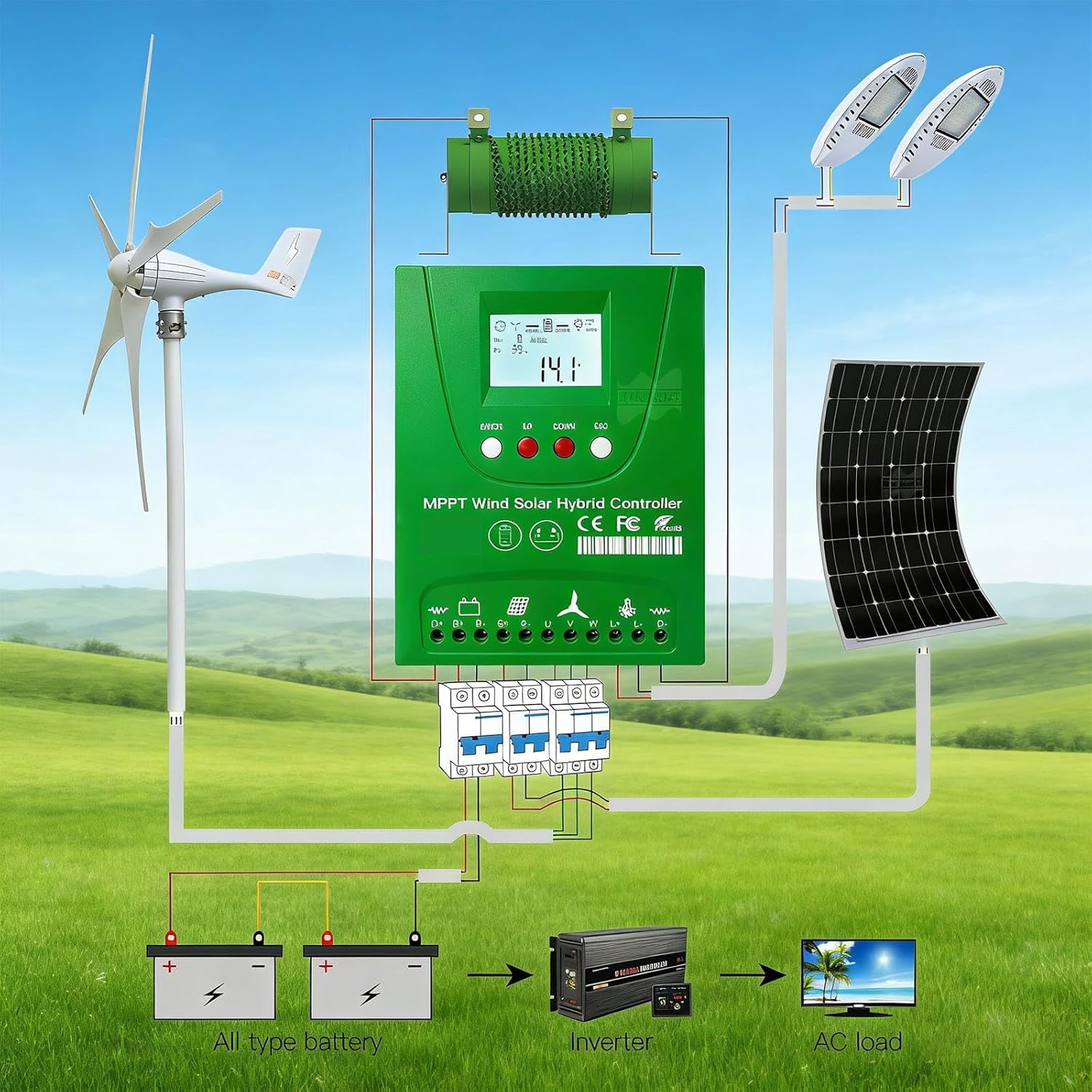

6000W-10000W Renewable Energy Controller Universal for Off Grid Wind Solar Hybrid Systems Hybrid Charge Controller(48V,8000W)

Are you still frustrated by the power supply dilemma of "wind but no light, light but no wind" for outdoor off-grid equipment, and helplessly watching the equipment stop and work be interrupted? Specification: Item Type: Wind Solar Hybrid Charge Controller Host Size: Approx. 174 x 145.5 x 70 mm / 6.9 x 5.7 x 2.8 in Shell Color: Green Material: ABS System Rated Voltage: 12V/24/48V automatic identification Model and power configuration: Battery Voltage: 24V/48V Wind Turbines Rated Power: 6000W PV Module Rated Power: 6000W Electrical characteristics: Maximum Input Voltage: <;80V <;95V No Load Current (DC): 0.05A The Controller Takes Power: Battery or photovoltaic panel Control Functions Control Method: Fan MPPT boost charging function PWM unloading function PWM overcurrent limiting function Load Modes: Pure light control mode Normally open mode Light control + time control mode (four periods + morning light) Display System Display Mode: LCD, Chinese display Display Parameters: Voltage Battery power Current Power Load mode Temperature Protection Mechanism Protection Type: Solar battery anti reverse charging Battery open circuit protection Battery reverse connection protection Overcurrent/overvoltage soft automatic braking Overload protection Environmental adaptability Heat Dissipation Method: Aluminum + self cooling Operating Temperature: -20°C to +55°C Operating Humidity: 35%-85%RH (non-condensing) Physics and Accessories Weight: Approx. 2289g / 80.7oz Applicable Battery: General acid lithium battery Application: Wind solar hybrid energy storage power station Wind solar hybrid monitoring system Wind solar hybrid lighting system Package List: 1 x Controller 1 x Resistance 2 x Cable 2 x Screw 2 x Nuts 1 x Manual

• 【Versatile Compatibility】: The controller is compatible with both 12V/24V and 48V systems and can automatically identify the battery voltage. It supports a wide range of wind turbines and solar panels, with rated power ranging from 6000W to 10000W
• 【Robust Protection Features】: The controller offers multiple layers of protection, including solar battery anti-reverse charging protection, battery open-circuit protection, battery reverse connection protection, overcurrent and overvoltage soft automatic braking protection, overload protection, and more
• 【Easy-to-Read LCD Display】: The controller features an LCD display with a clear and intuitive interface, showing vital system information such as voltage, battery power, current, power, load mode, temperature, and more
• 【Efficient Heat Dissipation】: The controller is designed with aluminum heat dissipation and self-cooling technology, ensuring stable and reliable operation even in high-temperature environments
• 【Wide Operating Temperature Range】: The controller can operate in temperatures ranging from -20C to +55C, making it suitable for various climates and environments
