Renogy Wanderer 30 Amp 12V Advanced PWM Negative Ground Solar Charge Controller Battery Regulator Compatible with Sealed, Gel, and Flooded Batteries and Wanderer Temperature Sensor

The Renogy Wanderer is a 30A PWM solar power charge controller. This advanced negative-ground controller is designed for off-grid solar applications and can be used with a 12V battery or battery bank. Integrating highly efficient PWM charging, the Wanderer increases battery life and improves system performance. The controller comes equipped with fully comprehensive self-diagnostics and electronic protection functions to prevent damage from installation mistakes or system faults. SpecificationsNominal Voltage: 12 VDC Rated Charge Current: 30A Self-Consumption: Over-Voltage Reconnect: 15V Low Voltage Reconnect: 12.6V Under Voltage Recover: 12.2V Equalization Voltage: Sealed:14.6V; Flooded: 14.8V; Gel: N/A Float Voltage: 13.8V Boost Duration: 120 min Working Temperature: -20°F - 113° Max Gauge Size: Up to 4AWGDimensions: 6.45 x 4.31 x 1.76 inches Weight: 0.65 lbs

• The Wanderer is a negative ground controller. This ensure compatibility with any negative ground system, which is the standard and most conventional way of grounding. Any negative connection on the solar module, battery and load can be safely earth grounded as required

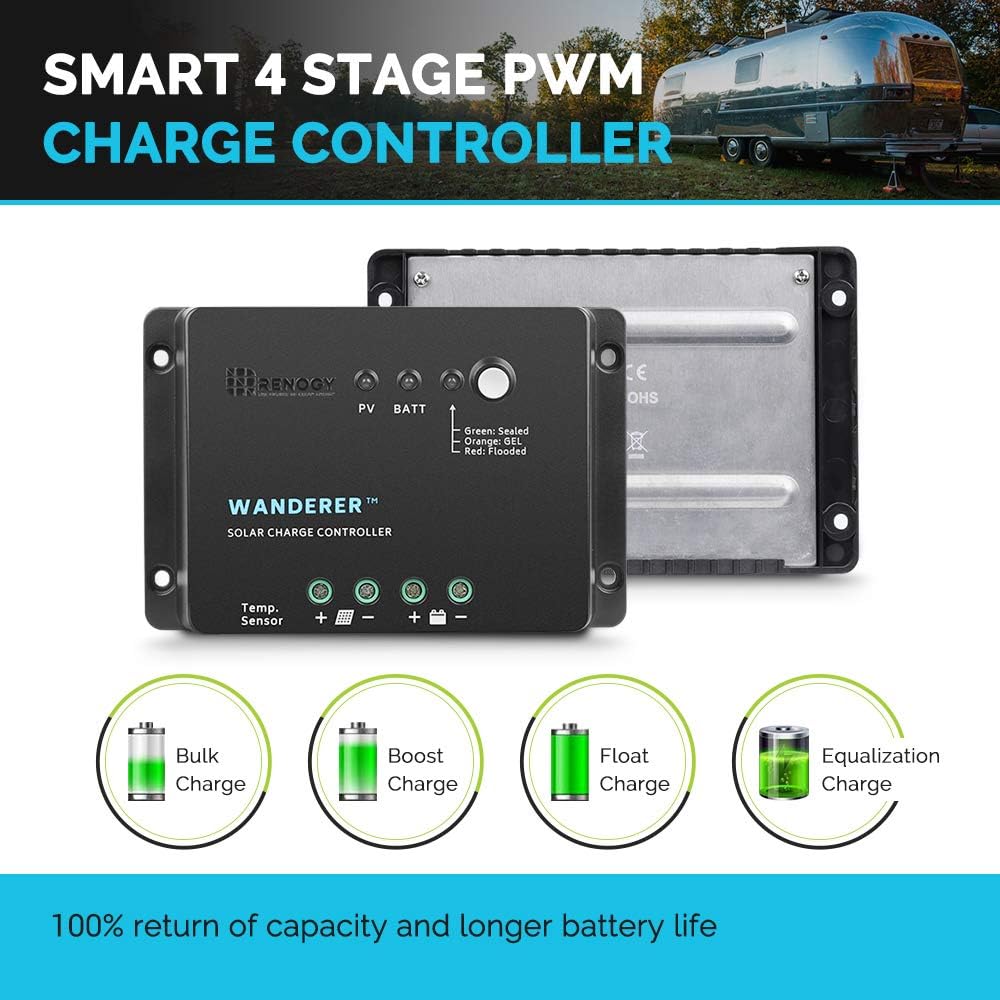

• 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) prevents batteries from over-charging and over-discharging. Protection against: overcharging, overload, short-circuit, and reverse polarity
• Compensates for temperature, automatically corrects charging and discharging parameters, and improves battery longevity.
• LED Indicators that inform you about the charge controller's status
• Compatible with Sealed, Gel, and Flooded batteries
