EPEVER Solar Charge Controller 60A 12V/24V/36V/48V Auto with USB Output Light and Time Control LCD Display for Solar Panel Power System (60A , VS6048AU)

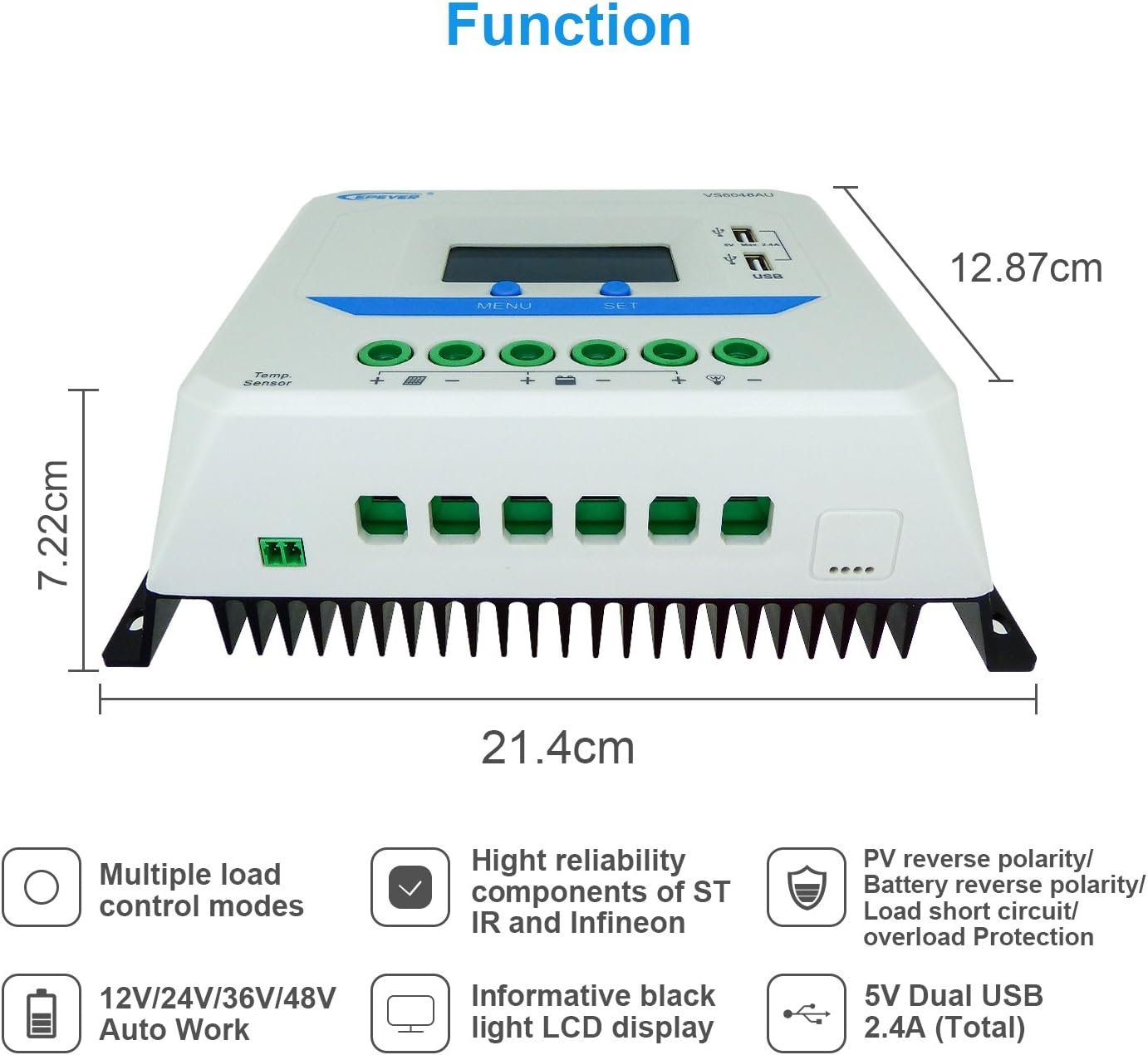

EPever VS6048AU solar charge controller is a common positive PWM charge controller with built in LCD display that adopts the most advanced digital technique. The multiple load control modes enable it can be widely used on solar home system, traffic signal, solar street light, solar garden lamp, etc. Specifications: Model:VS6048AU 60A 12/24/36/48V auto work Battery input voltage range: 9V～64V Rated charge/discharge current:60A Max. PV open circuit voltage: 96V Terminals: 3AWG(25mm2) USB output: Max. 5VDC/2.4A Battery type: Sealed(Default) / Gel / Flooded Boost charging voltage:Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V Equalize charging voltage:Sealed:14.6V/ Gel: No/ Flooded:14.8V Float charging voltage:Sealed/Gel/Flooded:13.8V Low voltage reconnect voltage:Sealed/Gel/Flooded:12.6V Low voltage disconnect voltage:Sealed/Gel/Flooded:11.1V Self-consumption:≤10mA(12V): ≤18mA(24V) Temp. compensation:-3mV/℃/2V(77℉) Features: ● 3-Stage intelligent PWM charging：Bulk, Boost/Equalize, Float ● Support 3 charging options: Sealed, Gel, and Flooded ● LCD display design, dynamically displaying device’s operating data and working condition ● Double USB design, the power supply charge for electronic equipment ● With humanized button settings, operation will be more comfortable and convenient ● Multiple load control modes ● Energy statistics function ● Battery temperature compensation function ● Extensive Electronic protection Electronic protections: ● PV reverse polarity protection ● Battery over voltage protection ● Battery over discharge protection ● Battery reverse polarity protection ● Battery overheating protection ● Load overload protection ● Load short circuit protection ● Controller overheating protection Package : 1X 60A VS6048AU solar charge controller 1X English Manual 1x Gift

• EPever 60A PWM Charge Controller VS6048AU ,12/24/36/48V Auto Wrok,Max Input Solar Panels 720W/1440W/2160W/2880W . Double USB design , 3-Stage intelligent PWM charging：Bulk, Boost/Equalize, Float . Support 3 charging options: Sealed, Gel, and Flooded

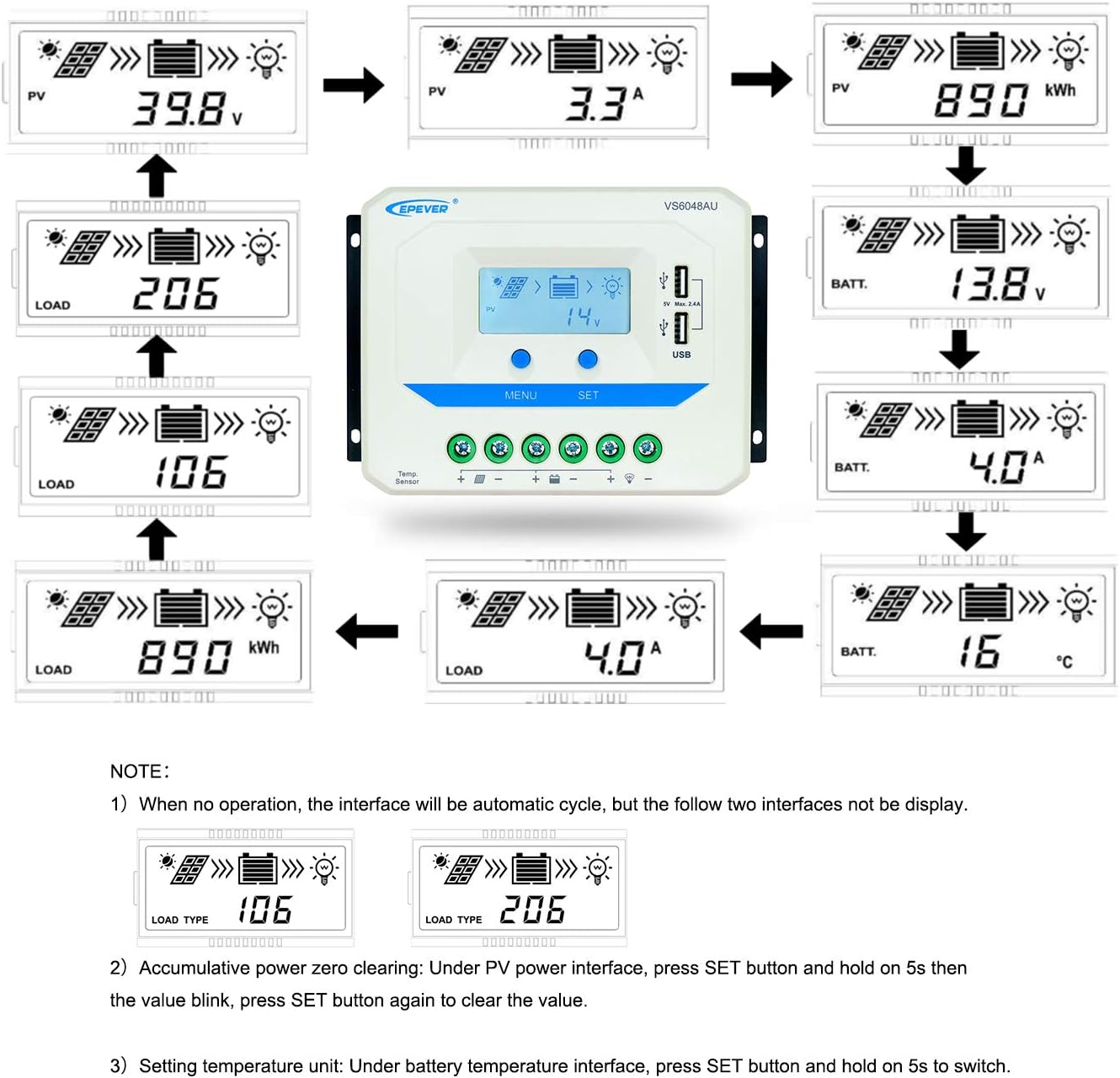

• LCD display design, dynamically displaying device’s operating data and working condition . the power supply charge for electronic equipment
• With humanized button settings, operation will be more comfortable and convenient . Multiple load control modes
• Energy statistics function . Battery temperature compensation function ,Extensive Electronic protection
• Controller come with (RTS300R47K3.81A) 3m Temp sensor cable *1 for you . US Local warehouse and services center supply technical support and free solar system design .
