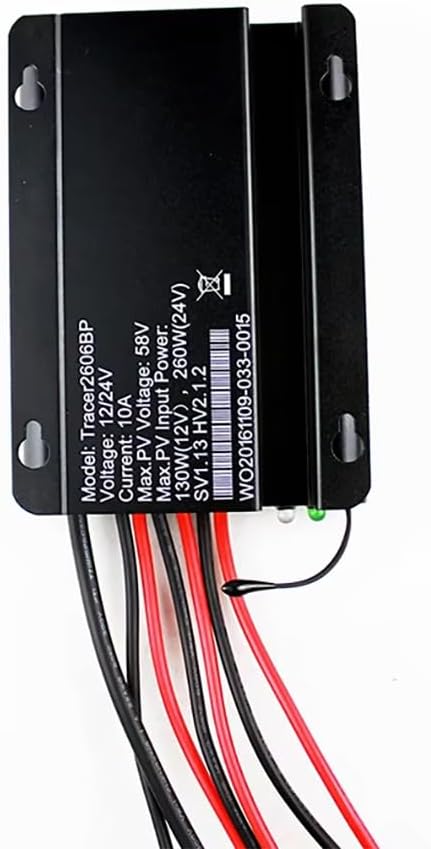

EP Solar Tracer2606BP 10A MPPT Solar Charge Controller 12V/24V Waterproof Regulator TracerBP MPPT Controller 60V PV Input

SpecificationsModel: Tracer2606BPNominal system voltage: 12V/24Vdc AutoBattery type: Lead-acid(Sealed/Gel/Flooded)/Lithium(LiFePO4/Li(NiCoMN)O2)/User Battery input voltage range: 8.5~32VDC Rated charge current:10ARated discharge current: 10ARated charge power: 130W/12V 260W/24V Max. PV open circuit voltage: 60V(At minimum operating enviornment temperature) 46V(At 25℃ environment temperature)Communication interface: RS485(Waterproof)Operating temperature range: -40℃~60℃Dimensions(LxWxH)(mm): 124 x 89 x 30Net weight:0.54kg Overview: The Tracer BP series solar charge controller adopt to the advanced Maximum Power Point Tracking charging methods, it enables the system charging and discharging management to obtain the most radical optimization. Increase the system flexibility, yet lower down the system cost. The controller support a variety of battery, for example sealed, gel, flooded and lithium battery. User can view and modify the working status and parameters. It can be widely used on solar home system, traffic signal, solar street light, solar garden lamp, etc. Features: Adopt high quality cpmponents of ST,IR and Infineon, make sure product using lifespan Wide working environment temperature Apply to lead-acid battery and lithium battery Lithium battery self-activating and low temperature protection function Maximum converse efficiency of 98% Advanced Maximum Power Point Tracking (MPPT) technology, with tracking efficiency no less than 99% Ultra-fast tracking speed and guaranteed tracking efficiency Accurately recognizing and tracking of multiple power points PV power limitation function Monitoring and setting parameter via Mobile APP, PC Monitor setting software with RS485 communication interface Use of standard Modbus communication protocol for RS485 bus connections, communication protocol compatibility much better Connecting the IOT(Internet of Things) module and Cloud Server monitoring software to realize remote monitoring of the multi-machine system The RS485 conncetor can provide power supply Aluminum housing for better cooling Real-time energy statistics function IP68 waterproof degree

• MPPT（maximum power point tracking）charging
• Support lead-acid and lithium-ion batteries
• Lithium battery self-activating function
• Multi load control mode
• Extensive electronic protections
• RS 485 communication, support IoT monitoring
• IP68 Ingress protection(1.5 meters, 72h)
