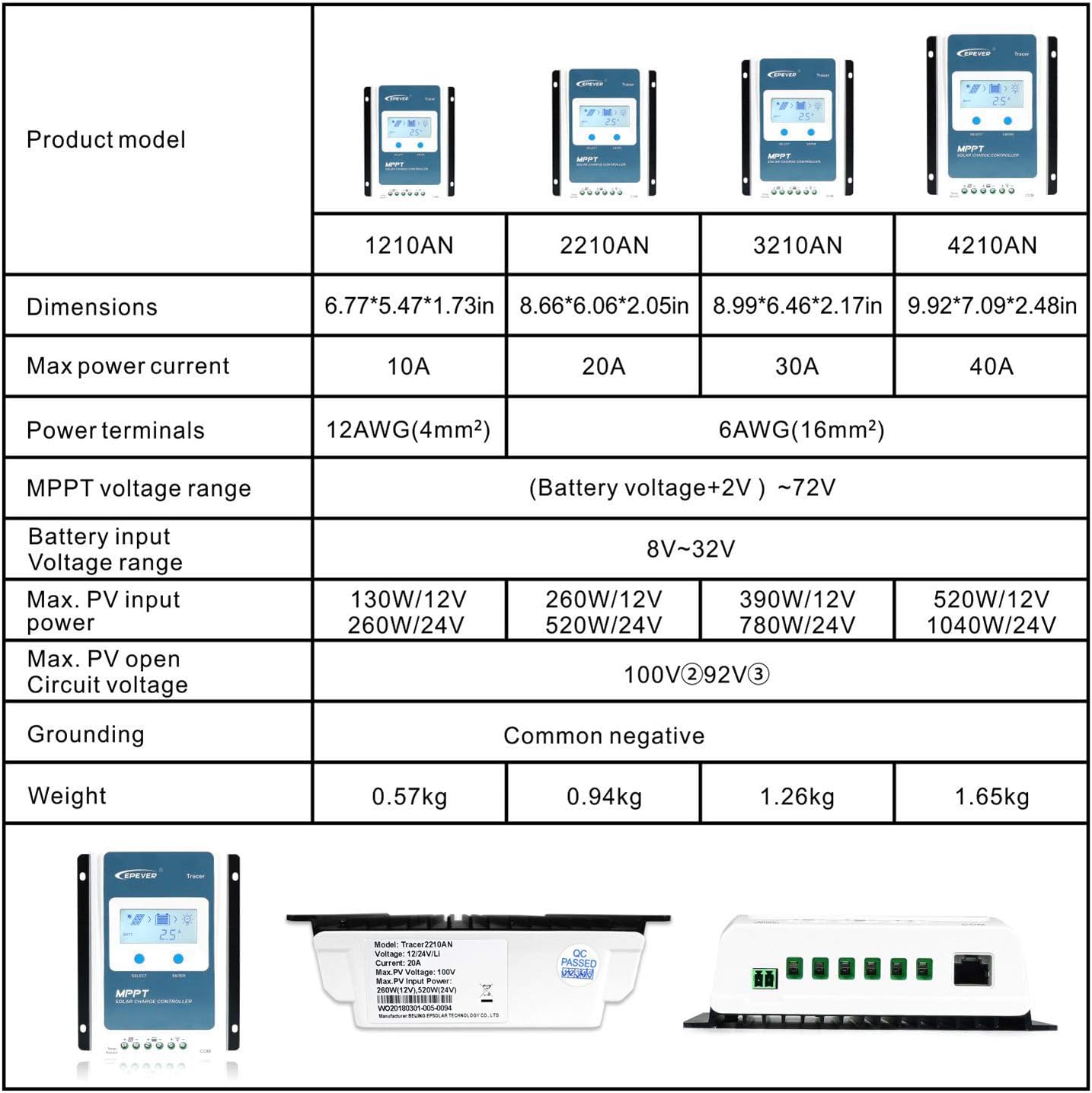

EPEVER MPPT 20A Solar Charge Controller， Max.Open PV 100V 12V/24V Auto Work, Common Negative Grounded with LCD Display for Lithium Gel Sealed Flooded AGM Battery (Tracer2210AN-G3)
Product details
| Management number | 214765712 | Release Date | 2026/04/12 | List Price | $31.60 | Model Number | 214765712 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ★ Build-up >> EPever 20A MPPT solar charge controller fits for 12V/24V Battery DC automatically identifying system. Charge/Discharge current of 40A. Max. PV input power:260W/12V battery, 520W/24V battery. Max PV voltage of 100V. Common Negative ground design.
- ★Multiple Battery types and Control Modes >> 20A MPPT Charge controller is compatible with Lead-acid batteries, GEL/AGM and Lithium batteries. (AGM battery setting same as GEL parameters, or more accurate parameters follow battery factory advice by User type ) Four load control modes: manual mode, light ON/OFF, light On+ Timer and test mode. The communication port adopts professional protection chip, which can provide 5VDC power supply.
- ★Advanced Maximum Power Point Tracking(MPPT) Technology >> accurately recognizing and tracking of multiple power point, with HIGH tracking efficiency more than 99.5%, PEAK conversion efficiency of 98%.
- ★Showing and operation >> Backlight LCD displays. Support RS485 Communication, you can DIY your personal using experience via optional modules (MT52, RTS, PC Cable, Bluetooth, Wifi are available in store).
- ★EPEVER Tracer-AN MPPT Controller has been one of the most stable and reliable controller models on the market since 2008, so you can use it with complete confidence. The G3 Version is the latest iteration, which reduces noise and offers even greater stability than previous versions.
| UPC | 791262788231 |
|---|---|
| Color | MPPT 20A |
| Voltage | 12 Volts |
| Brand Name | EPEVER |
| Display Type | LCD |
| Manufacturer | EPEVER |
| Material Type | Aluminum |
