2 String Solar PV Combiner Box IP65 2 in 1 Out DC500V 32A Circuit Breaker with Surge Protector and 15A PV Fuse,Solar Disconnect Switch Outdoor Waterproof for Solar Panels System
Product details
| Management number | 214765452 | Release Date | 2026/04/12 | List Price | $24.00 | Model Number | 214765452 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [2 Input 1 Output PV Combiner Box]: CNLonQcom's solar combiner box is designed to optimize the connection between the PV array and the inverter. The device supports up to 500V DC and 1,5000W. The device maximum input current of 15A per string and maximum output current of 32A per string, and provides a quick disconnect for safety during maintenance of the PV system
- [MCB+SPD+FUSE]: CNLonQcom's PV Combiner Box are equipped with 32A DC500V circuit breaker, DC500V T2 surge protector and 15A DC1000V fuse. Capable of switching circuits and providing short circuit, overvoltage, leakage and lightning protection
- [Durable IP65 Waterproof Box]: The junction box is made of high quality PC+ABS material and is IP65 waterproof, flame retardant and UV resistant. It is suitable for both indoor and outdoor use and is resistant to sand, dust and rain

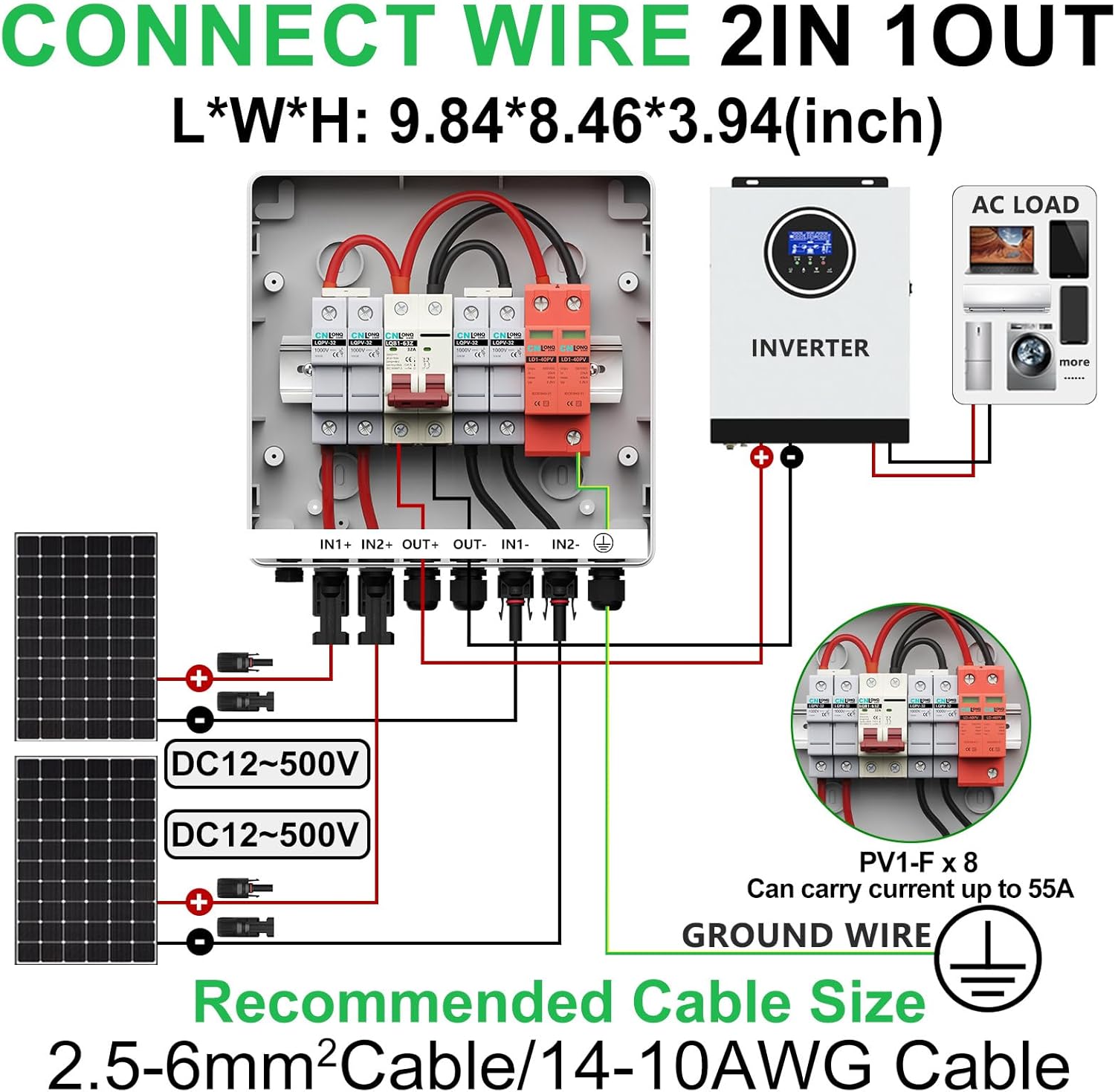

- [Easy Wiring and Wall Mount]: CNLonQcom's Solar Combiner Box come pre-wired with 10AWG PV1-F cable inputs and jumpers to simplify installation, just connect the outputs and ground wire. A free ground wire is included in the package for use if needed
- [Application]: Designed for grid-tied or off-grid solar systems, including solar panels, RVs, boats, rooftops, and other wind or solar systems. Supports up to 360W in a 12V system, up to 720W in a 24V system, and up to 1,440W in a 48V system, making it a powerful and reliable solution for small to medium-sized solar projects
- [Trusted Expertise in PV Solutions]: Trust in the CNLonQcom brand, a dedicated manufacturer and service provider deeply rooted in the photovoltaic industry. Our focus on manufacturing and servicing PV combiner boxes reflects our commitment to quality and reliability in solar energy solutions.
| Brand Name | CNLonQcom |
|---|---|
| Phase Type | Single Phase |
| Item Weight | 2.42 Pounds |
| Manufacturer | CNLonQcom |
| Material Type | Acrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC) |
| Item Type Name | PV combiner box |
| Number Of Circuits | 3 |
