25 Pack Misting Nozzles For Outdoor Cooling Misting System, 10/24 UNC High Pressure Water Mist Sprayers, Anti Drip Cleanable Mister Head, 3/8" Brass Fittings (Size : Orifice 0.1mm)
Product details
| Management number | 214723972 | Release Date | 2026/04/12 | List Price | $50.47 | Model Number | 214723972 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

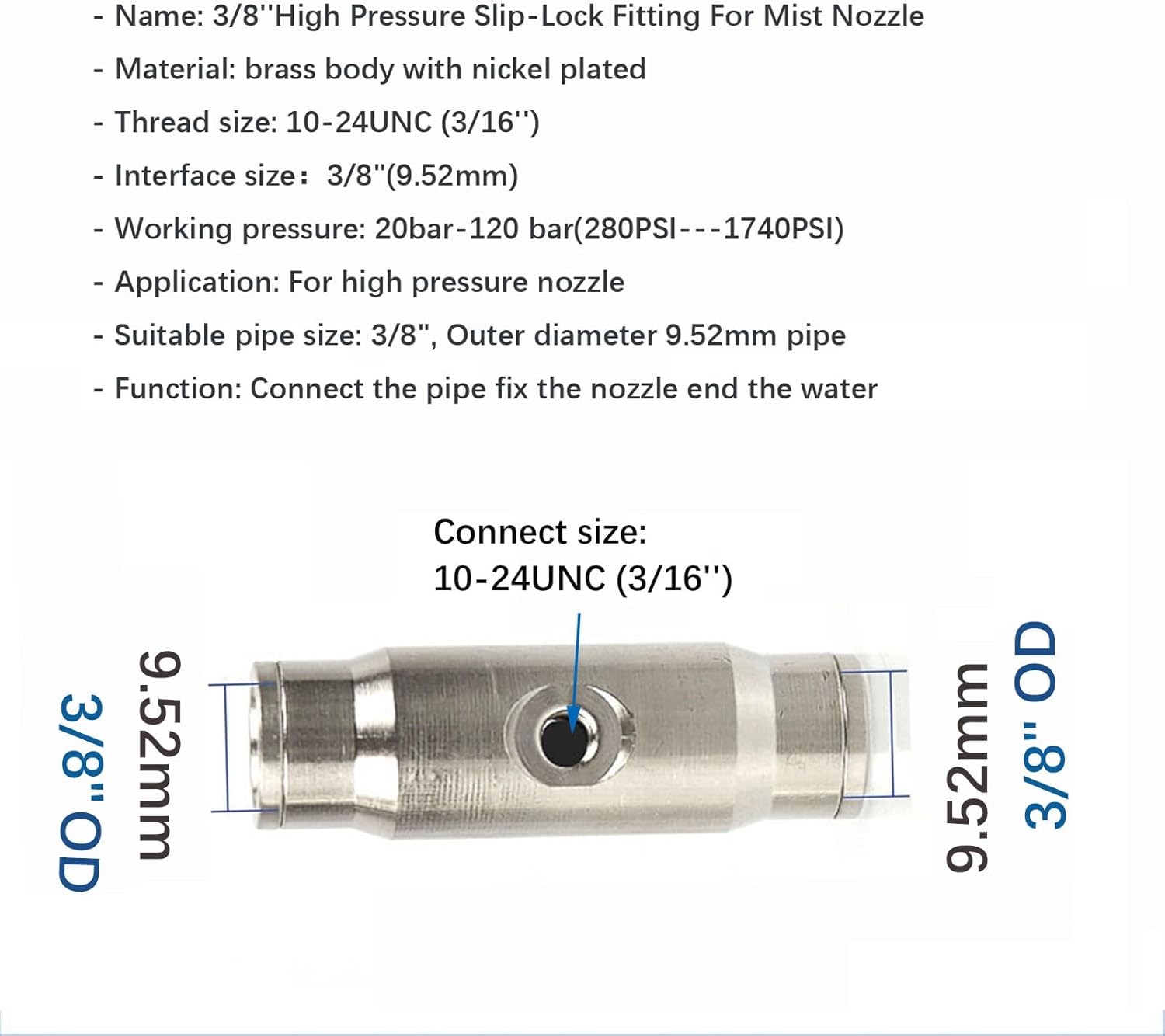

Why choose nozzles?- Nozzle specification: Name: High pressure mist nozzles Material: Brass coated with nickle body +Ceramic Head Thread size: 10-24UNC (3/16'') Feature: Anti-drip Application pressure: 20 to 70 bar(280PSI---1000PSI) Spray particle size of around 50 microns Orifice dia: 0.1mm,0.15mm,0.2mm,0.3mm0.4mm,0.5mm,0.6mm,0.7mm,0.8mm,0.9mm,1.0mm Flow rate: 0.02 lpm - 0.06 lpm Usage: Irrigation, humidification, dust removal, cooling, landscaping. The packaging includes: 25 Nozzle+25 tee- Tee specification: Name: 3/8''High Pressure Slip-Lock Fitting For Mist Nozzle Type: Quick coupling/Quick release Material: brass body with nickel plated Thread size: 10-24UNC (3/16'') Interface size：3/8"(9.52mm) Working pressure: 20bar-120 bar(280PSI---1740PSI) Application: For high pressure nozzle Suitable pipe size: 3/8", Outer diameter 9.52mm pipe Function: Connect the pipe fix the nozzle end the water- Feature: DurabilityOur Nozzles are made of high purity brass with Nickel plated to better prevent corrosion. Standard connecting threadFit with any standard 10/24 UNC thread.- ApplicationWet cleaning Air humidifying;The chemical treatment Chemical sprays;Tobacco humidification Tablets coating;Evaporative cooling flue gas Fruit spray wax;Parts of cooling Salt spray test;The workshop humidifying Artificial fog;Other places humidification;
- Premium brass: nozzles are made of brass coated with nickle. High pressure resis tance, corrosion resistance, long service life; Each mister nozzle come with a black sealing O-ring to prevent side leakage
- Universal: Standard 10/24 UNC thread, Fit with any others with standard 10/24 UNC thread (3/16" Thread)

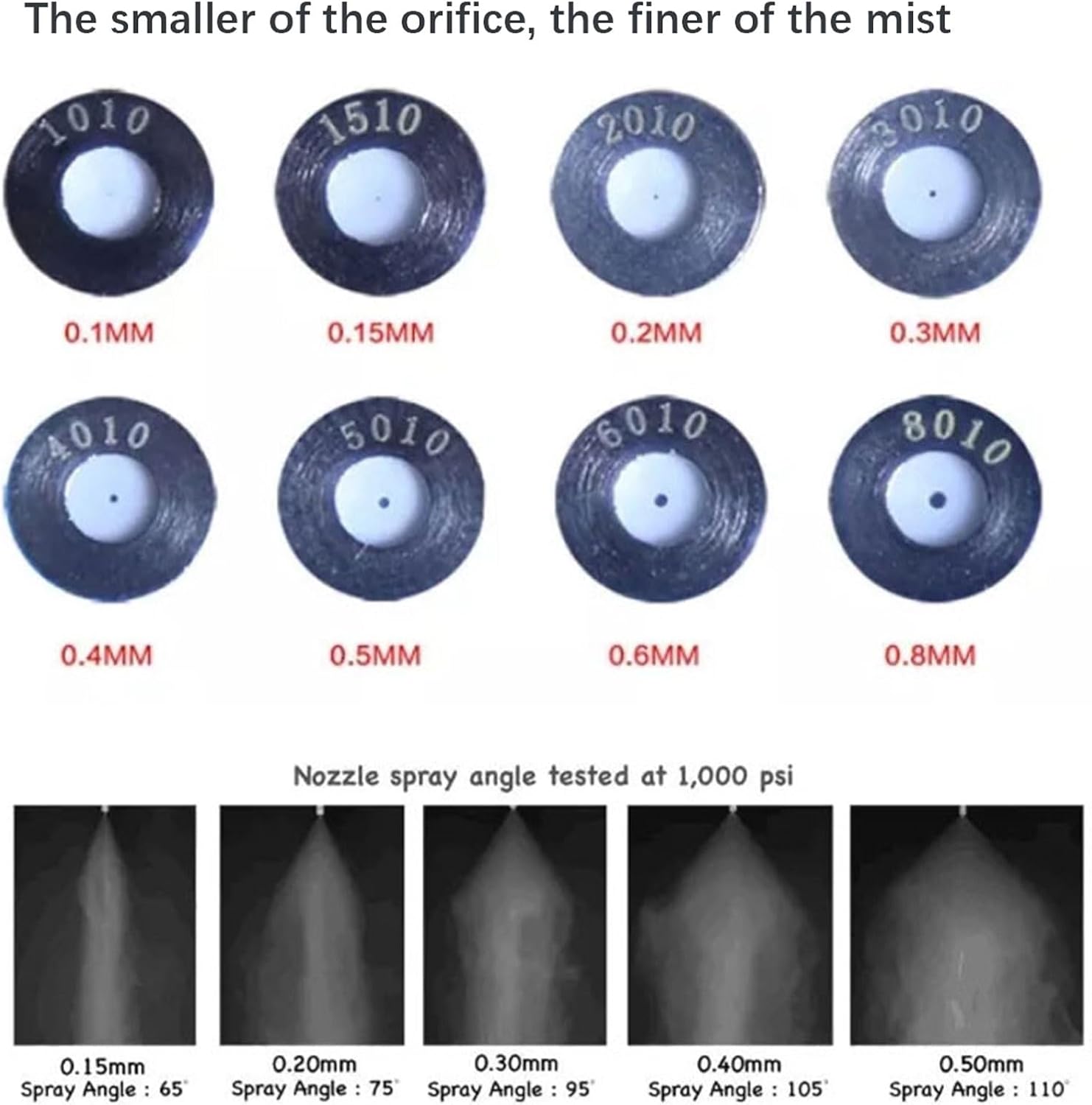

- Orifice diameter: 0.1mm-1.0mm, The smaller of the orifice, the finer of the mist
- Working pressure: Work with working pressure from 20bar to 70bar (280PSI---1000PSI)
- Widely applied: The nozzles with spray particle size of around 50 microns, can be widely used for garden, patio, lawn misting system, outdoor cooling, greenhouse, humidification, deodorant air purification, small fountain, outdoor cooling system, agriculture irrigation system, etc.
| Size | Orifice 0.1mm |
|---|---|
| Part Number | 9468573927833 |
| Manufacturer | YLMAYOK |
