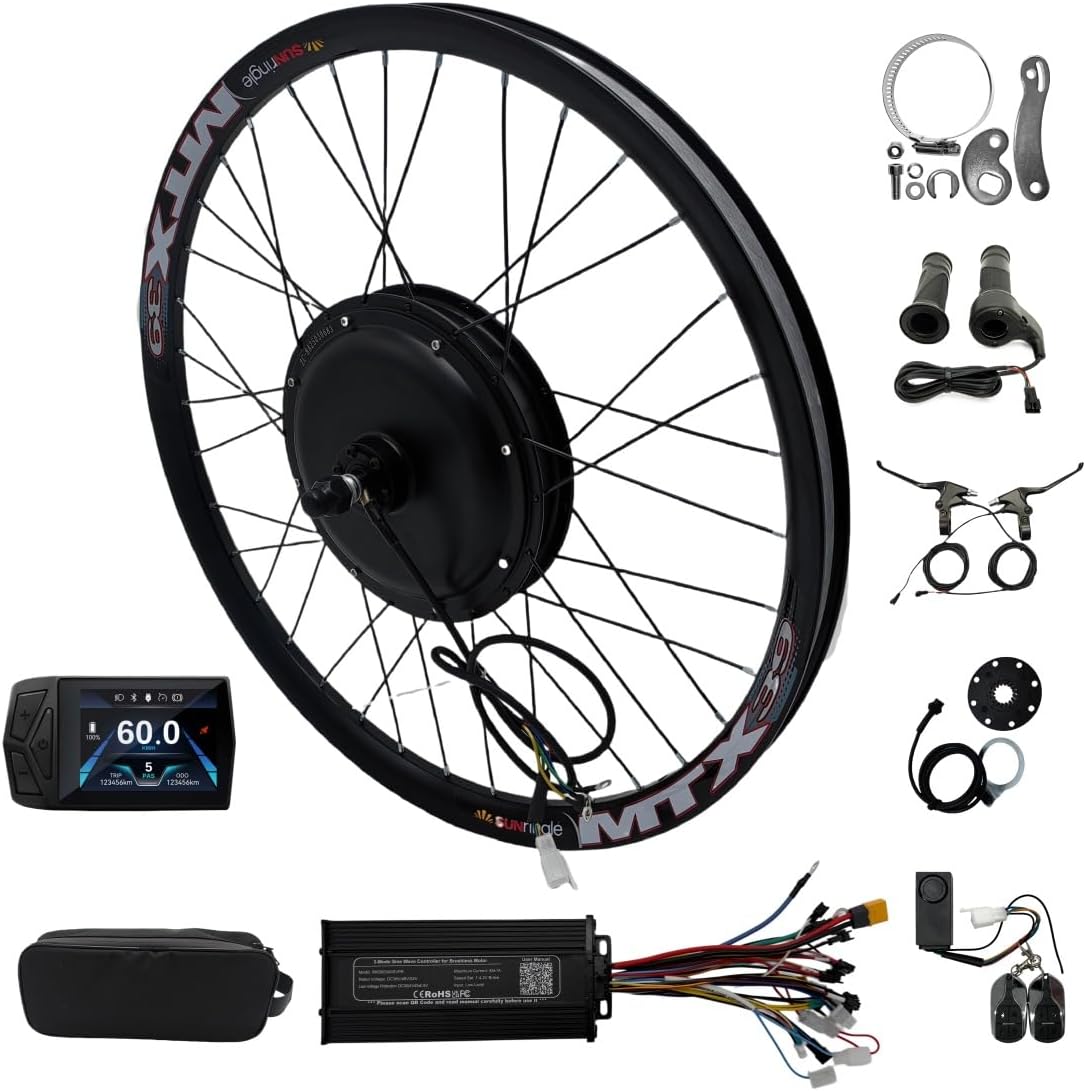

36V- 48V 1500W Rear Wheel, MTX39 Cassette Wheel 20" 24" 26" 27.5" 29" 700C, with T24 Color Display, 135mm Dropout
Product details
| Management number | 214500128 | Release Date | 2026/04/12 | List Price | $175.96 | Model Number | 214500128 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
36V-48V 1500W Ebike Rear Wheel Conversion Kit, 20" 24" 26" 27.5" 29" 700C MTX39 Rear Wheel Electric Bike Motor Kit with T24 Color Display, 135mm Dropout, for Mountain Bike Ebike Upgrade Parts Including: 1. 48V 1500W 20 Inch, 24 Inch, 26 Inch, 27.5 Inch, 29 Inch, 700C MTX39 Cassette Rear Wheel (without tire and tube) 1piece 2. 36V 48V 52V 45A Sine Wave Controller 1piece 3. 24V-72V T24 Color Display 1piece 4. Full Bar Twist Throttle 1pair 5. Brake Levers OR Brake Sensor, Brake Lever is default. If you need brake sensor, please notify us!!! 6. PAS 1piece 7. Alarm Devise 1piece 8. Controller Bag 1piece Specification of the 48V 1500W motor: 1) Flywheel type: Cassette 2) High Motor Efficiency: max 88% (Save Power) 3) Torque: max torque 50 N.m. 4) RPM: max 550 5) Max Speed: 58-60km/h (different road&weather condition and rider's weight will have different speed) 6) Hub Width (Frame dropout requirement for 7-speed): 135mm rear hub motor 7) Support standard 6-hole type disc brake Technical Data of the 36 V 48V 52V 45A Controller: 1. Model: RM365245SVPR 2. Maximum Current: 45±1A 3. Rated Voltage: DC36V/48V/52V 4. Speed Set: 1-4.2 V Brake 5. Low Voltage Protection:DC30/41/43±0.5V 6. Input: Low-Level 7. Rated Power: 36V 792W/ 48V 1056W/ 52V 1144W 8. Peak Power: 36V 1620W/ 48V 2160W/ 52V 2340W 9. Brake: Low Voltage Brake 10. Alarm: Low Voltage Alarm 11. Rotor Position Detecting Method: Hall sensor 12. Size: 185x85x47mm 13. Net Weight: 700g 14. Waterproof Grade: IP65 Specfication of T24 Display: 1. T24 TFT LCD Color display: Consists of a 2.4 inch IPS colour display and three integrated buttons, it is a good choice for beginners. It offers an affordable price, easy operation and basic features, including optional 0-9 PAS levels and a Type-C charging port 2. T24 TFT LCD Color display is exclusively compatible with Controller that use the UART Nr. 2 Communication protocol . It fits handlebars with a diameter of Ø22.2/25.4 mm and its plug is a SM/Waterproof Connector. If you are not sure about the compatibility, please contact us before purchase. 3. Slim, modern design with a large, easy-to-read display. The case is made of high quality ABS plastic. Waterproof according to IP 67 4. The Firmware can be updated through Blutoth. 5. The Display can be turned on via Blutoth.
- POWERFUL MOTOR: Features a 36V-48V 1500W hub motor delivering strong, reliable power for demanding rides and steep terrain.
- UNIVERSAL WHEEL COMPATIBILITY: Fits a wide range of bike sizes including 20", 24", 26", 27.5", 29", and 700C frames.
- T24 COLOUR DISPLAY: Comes with a T24 full-colour display for easy monitoring of speed and ride data.
- CASSETTE REAR WHEEL DESIGN: MTX39 cassette-compatible rear wheel allows smooth gear shifting and integrates seamlessly with standard drivetrains.
- 135MM DROPOUT SPACING: Built with a 135mm dropout width, ensuring a precise and secure fit on most standard mountain and hybrid bike frames.
| Color | Black |
|---|---|
| Rim Width | 2.5 Inches |
| Brand Name | ebsenopower |
| Wheel Size | 26 Inches |
| Item Weight | 14 Kilograms |
| Manufacturer | ebsenopower |
| Material Type | Aluminum |
| Number of Spokes | 36 |
| Wheel Backspacing | 135 Millimeters |
| Included Components | 45A Controller, Rear Wheel, T24 Color Display, Throttle |
| Warranty Description | 1 |
| Maximum Weight Recommendation | 150 Kilograms |
