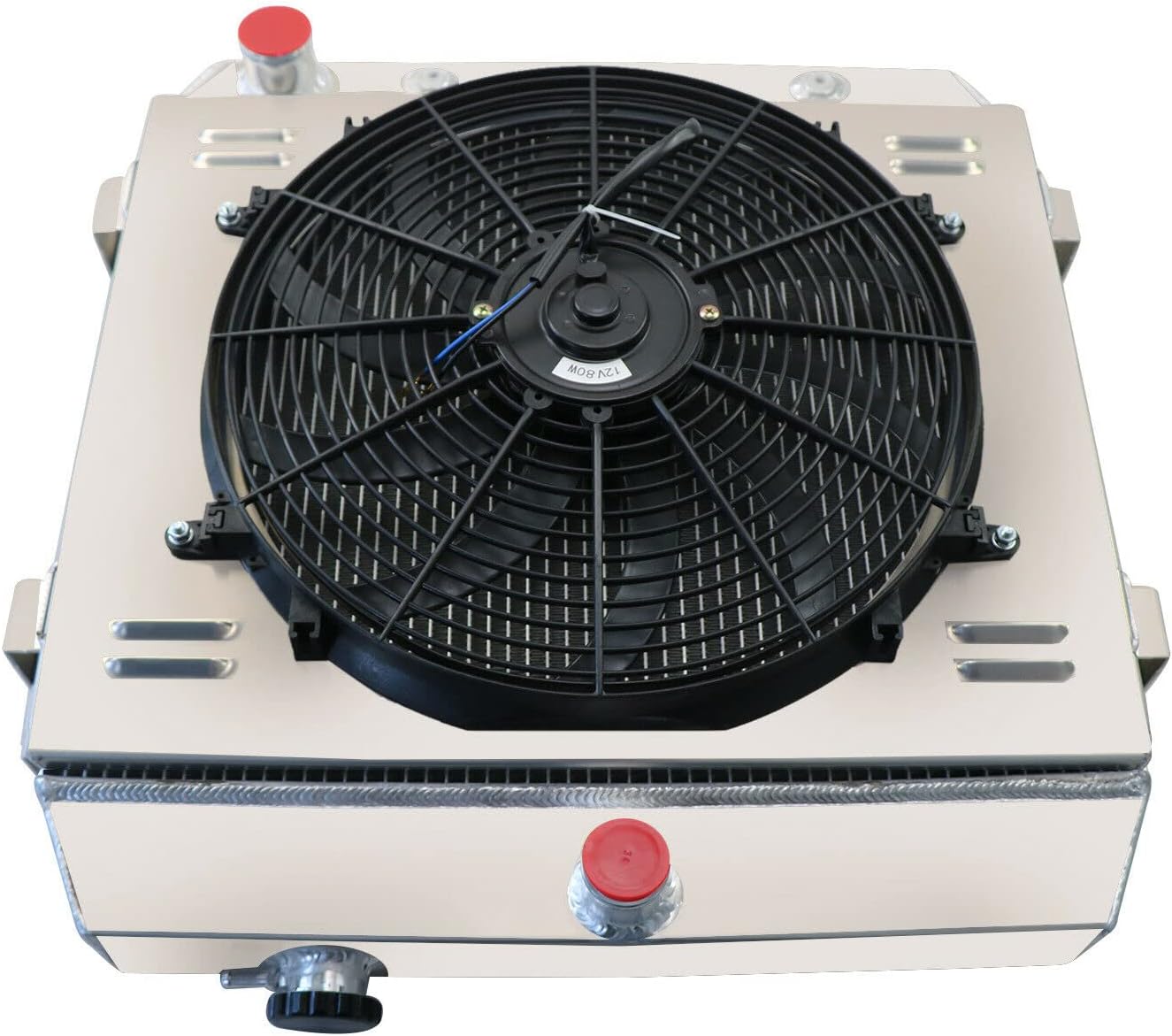

CU5057 3 Row Aluminum Radiator For Chevy Bel Air/One-Fifty Series/Two-Ten Series 1955-1957 55 56 57 Radiator + Shroud + Fan + Relay

FitmentFor Chevy Bel-Air/Nomad V8 Engines 1955 1956 1957 Radiator Details Row Count: 3 Row Upper Inlet: 1.5in located on driver side Lower Outlet: 1.75in located on passenger side Surface Finish: Aircraft Grade Raw Aluminum OEM style brass petcock drain CNC machined filler neck and cap Fans Size Maximum Fan CFM: 2000±200 Fan Diameter (in): 16.050 inches Thickness (in): 2.790 inches Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Part Number Manufacturer Part Number: 5057, CC5057, CU5057, RAD5057, MC5057

• For Chevy Bel-Air/Nomad V8 Engines 1955 1956 1957 55 56 57
• Core Size: 17.25" H x 21.5" W x 1.73" T; Overall Size: 24.5" H x 23.75" W; Inlet/Outlet Diameter: 1.5"/1.75"; Part Number: 5057, CC5057, CU5057, RAD5057, MC5057
• High Performance. Full AA5052 Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
• Easy to Install. Meticulously built to superior OE standards a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed Installation
• Crafted by our professional team using the highest-grade materials for exceptional longevity.
