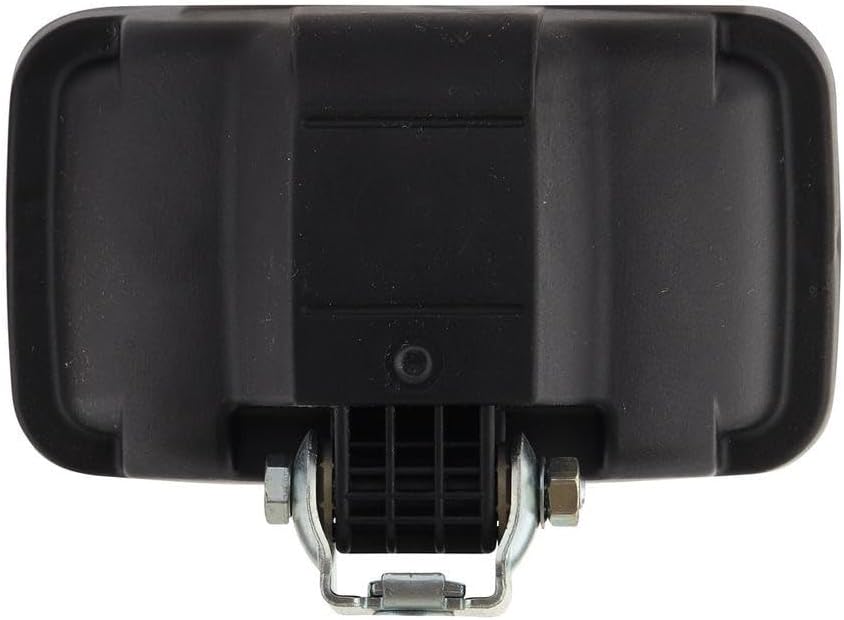

Hella 1AB 007 145-001 Halogen-Headlight 7145-12V - Reference number: 10 - mounting - left/right
Product details
| Management number | 214044489 | Release Date | 2026/04/12 | List Price | $52.64 | Model Number | 214044489 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Size Name:H4 - Anbauscheinwerfer | Style Name:for standing or hanging attachment Item Name: Headlight Part Brand: HELLA OEM Numbers: 03004150000 / 0 707657 1 / 0924746/0 / 14735700 / 160 29758 / 34203700 / 4107058A / 41L0 6H3 020 / 533399 / 6 004 186 / 7.512.044.000.0 / AZ 50 258 Mounting Type: mounting Number of light functions: 3 Frame Colour: Black Bulb Type: H4.T4W Depth [mm]: 120 mm Light Design: Halogen Left-hand / Right-hand Traffic: for right-hand traffic Light Function: with low beam.with high beam.with position light Rated Voltage [V]: 12 V Overall Height [mm]: 126 mm Housing Type: Synthetic Material Housing Illuminated Area [mm]: 148 x 84 mm Diffusing Lens Material: Glass Fastening Type: Suspended.Vertical Supplementary Article/Info 2: without bulbs Inspection Tag: E1 44439 Frame Material: Plastic Width [mm]: 180 mm Height [mm]: 106 mm Manufacturer Restriction: Ref. 10 Housing Colour: Black Fitting Position: Left.Right Colour: Black Remarks: With H4 main light and side light. Black plastic housing and lens-retaining rim. Universal bracket with M10 fixing screw. Additional attachment possibility with U-bracket 9XD 130 261-001. For upright or pendant mounting. Light aperture: 148 x 84 mm. H4 external-fitting headlamp.
- Width: 180mm - Height: 106mm - Depth: 120mm - Overall Height: 126mm - Lamp Type: H4/T4W - without bulbs
- Light functions: 3 - with low beam/with high beam/with position light
- for right-hand traffic - Appr. stamp: E1 44439/ECE
- Synthetic Material Housing - Frame Material: Plastic - Housing Colour: Black - Colour: Black - Frame Colour: Black - Diffusing Lens Material: Glass
- Fastening Type: Suspended/Vertical
| Color | Black |
|---|---|
| Voltage | 12 Volts |
| Wattage | 12 watts |
| Brand Name | Hella |
| Lens Color | Black |
| Model Year | 2000 |
| Unit Count | 1 Count |
| Item Weight | 0.69 Kilograms |
| Light Source | Halogen |
| Manufacturer | Hella KGaA Hueck & Co. |
| Lens Material | Glass |
| Item Dimensions | 7.32 x 5.55 x 6.5 inches |
| Auto Part Position | Right |
| Additional Features | High Beam |
| Specific Uses For Product | Head Lights |
| Compatible with Vehicle Type | Car |
| Global Trade Identification Number | 04082300096880 |
