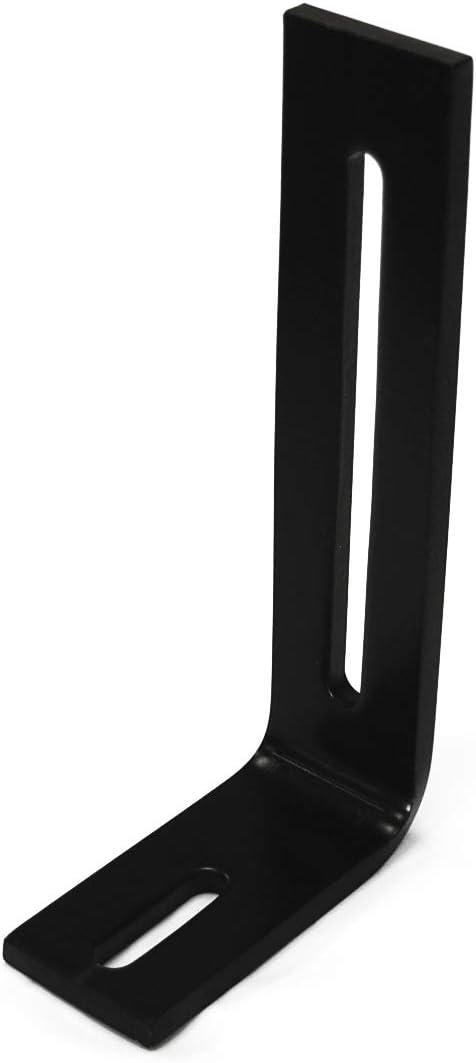

10 Tall Black L Bracket Foot for Solar Panel PV Module Mounting Racking Installation
Product details
| Management number | 213801645 | Release Date | 2026/04/12 | List Price | $14.00 | Model Number | 213801645 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Magerack L bracket foot can be used for solar installation on sloped residential composition shingle roof with most common rails or other applications L bracket is made of anodized aluminum alloy and Extra Tall L Bracket is made of stainless steel The vertical portion has serration on both sides except Extra Tall L Bracket L and Tall L bracket's top slot through which a fastener is attached to rail is for up to 3/8" bolt. The bottom slot is for 5/16" lag screw L bracket is 3-1/2" tall, 1-1/2" wide and 3" long (deep), and made of anodized aluminum alloy Tall L bracket is 4-1/2" tall, 1-1/2" wide and 3" long (deep), and made of anodized aluminum alloy Extra tall L bracket is made of 304 stainless steel with black coating for outdoor use. The L bracket is 8" tall, 1-3/4" wide and 0.31" (8 mm) thick. The bottom is 4" long. Each order comes with 10 L brackets. The two slots are for up to 3/8" or M10 bolt. Compatible with most common solar mounting rails
- Magerack L bracket foot can be used for solar installation on sloped residential composition shingle roof with most common rails or other applications
- L bracket is made of anodized aluminum alloy and Extra Tall L Bracket is made of stainless steel
- The vertical portion has serration on both sides except Extra Tall L Bracket
- L and Tall L bracket's top slot through which a fastener is attached to rail is for up to 3/8" bolt. The bottom slot is for 5/16" lag screw
- L bracket is 3-1/2" tall, 1-1/2" wide and 3" long (deep), and made of anodized aluminum alloy
- Tall L bracket is 4-1/2" tall, 1-1/2" wide and 3" long (deep), and made of anodized aluminum alloy
- Extra tall L bracket is made of 304 stainless steel with black coating for outdoor use. The L bracket is 8" tall, 1-3/4" wide and 0.31" (8 mm) thick. The bottom is 4" long. Each order comes with 10 L brackets. The two slots are for up to 3/8" or M10 bolt.
- Compatible with most common solar mounting rails
| Color | Silver or Black |
|---|---|
| Brand Name | Magerack |
| Manufacturer | Magerack |
| Model Number | 400-003 |
| Material Type | 10 Tall Black L Bracket |
| Item Type Name | Magerack L Bracket Foot for Solar Panel PV Module Mounting Racking Installation |
| Item Dimensions | 4.5 x 1.5 x 3.5 inches |
| Included Components | Magerack L bracket |
