Locking Drawer Slides 20 Inch 1 Pair Heavy Duty Full Extension Drawer Slides with Lock 250 lb Load Capacity 3-Fold Full Extension Side Mount Ball Bearing Industrial Locking Rail
Product details
| Management number | 213706972 | Release Date | 2026/04/12 | List Price | $12.00 | Model Number | 213706972 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【1 pairs Locking Soft Close Drawer Slides】- You will get 1 pairs locking soft self close drawer slides ,20 inch.And match with 8pcs screws. All of the drawer slides which made by HLC are made from high-grade cold rolled steel that is electrom zinc plated.Rust resistant for your lifetime use.Side mounted Steel ball-bearing action.
- 【3-fold full extension】- Slides Width: 2.0" (51mm)--length:20" (500mm)--Fully extended length:40.5"(1025mm)-Maximum load-bearing: 150 lb/68 kg.The 3-fold full extension allows for the entire drawer to be accessed.Three-stage stretching can pull out the drawer completely.Make full use of your drawer space.
- 【industry and home use】- This heavy duty drawer slides kit is mainly used for Goods shelf, Industrial drawers, Mechanical Cabinets, factory machines, office, vehicle, exhibition drawers, heavy truck drawers, etc. It is perfect for room furniture, industrial drawers, modified car drawers, office cabinets, etc.

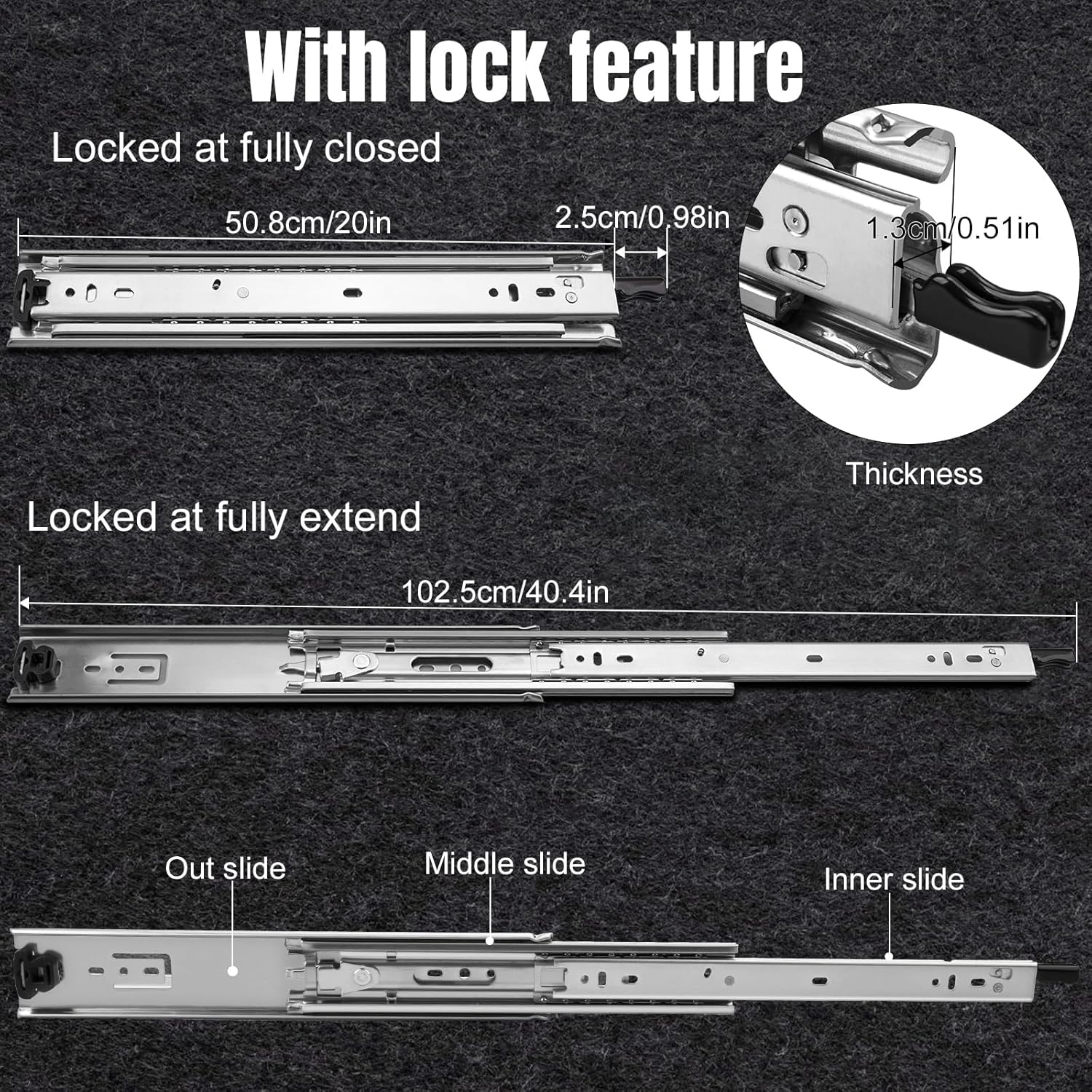

- 【With hold-still lock & Detachable】 There is a black handle to lock-in and lock-out .When it is fully extension or fully closed,the slides will be hold still automatically (in locking state), and no chance of drawer separating from the cabinet.Press the lock handle gently,it's unlocked and get back in free sliding.A double row of ball-bearing action provides a smooth slide performance when closing and opening the drawer.
- 【installation notes】 The length of drawer≥length of slides,the tolerance 0.7in/20mm-1in/30mm is okay. Installation clearance: 0.76"±0.01"（19.2mm±0.3mm). Same clearance on both sides.The space between drawer and cabinet wall need to be 19mm/0.75in each side(total 38mm/1.5in). Choose the size of the rails according to the depth of the drawer.
| Color | Silver |
|---|---|
| Brand Name | HLC |
| Drawer Type | locking drawer slides |
| Finish Types | Powder Coated |
| Manufacturer | HLC |
| Material Type | Alloy Steel |
| Mounting Type | Side Mount |
| Included Components | 1pair 20 inch locking drawer slides,8pcs screws |
| Maximum Weight Capacity | 150 Pounds |
| Item Dimensions L x W x Thickness | 20.01"L x 2"W x 1"Th |
