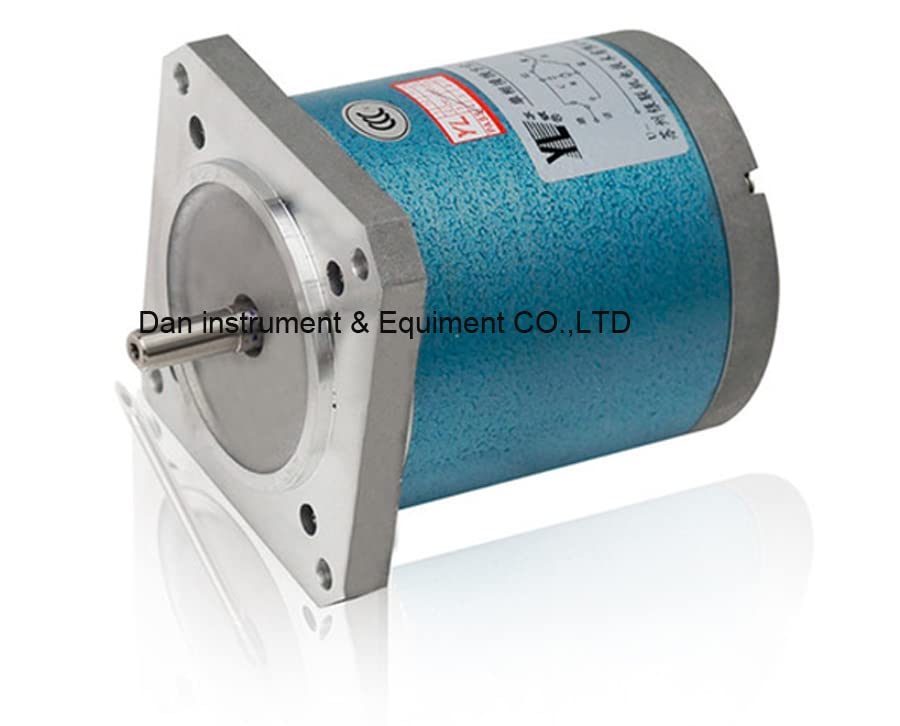

Permanent magnet low speed synchronous motor 70motor Single phase Motor 220V 60rpm 70TDY060, 70TDY115 - (Speed: 70TDY060)

Permanent magnet low speed synchronous motor 70 motor Single phase Motor 220V 60rpm 70TDY060/70TDY115 Model: 70TDY060/115 Voltage: 220V Power supply: AC power Product Type: 70TDY060 Synchronous speed: 60 r / min Voltage: 220V Input current: 0.38A Rated torque: 2000 mN.mThis product is a non- reduction gear unit obtained directly by the motor of the new synchronous motor, they have : a closed structure , smooth operation, noise at the end , reliable , long life, no maintenance , especially for the some special conditions. Start and reverse as well as different load input current is relatively stable , you can start and stop as well as the frequent reversal of conditions of work, even if the stall will not burn. Start, stop and reverse the response time is very short, usually in 10-50 milliseconds , so you can use as a servo motor , with pulse power can also be used as a stepping motor . Equipped with variable frequency power supply, will be able to get different synchronous speed , if necessary, a lower speed and higher torque , you can match with our special gear box. The motor itself has a self-locking torque , if the need for greater self-locking torque windings can be combined with the appropriate DC power supply. This product as a low-speed drive components , has been widely used in instrumentation , lighting , equipment and machine tool feed , such as low-speed valve drive settings, they can be used in open-loop control system as an electric actuator .Temperature-25 ~ +40Relative Humidity90 to 95 ( % )Pressure74.8Kpa (56mmlFor LG) (2500m)Vibration10 ~ 55Hz double amplitude 1.5mmShock:( peak acceleration ) 150m / s2

• Speed: 70TDY060
