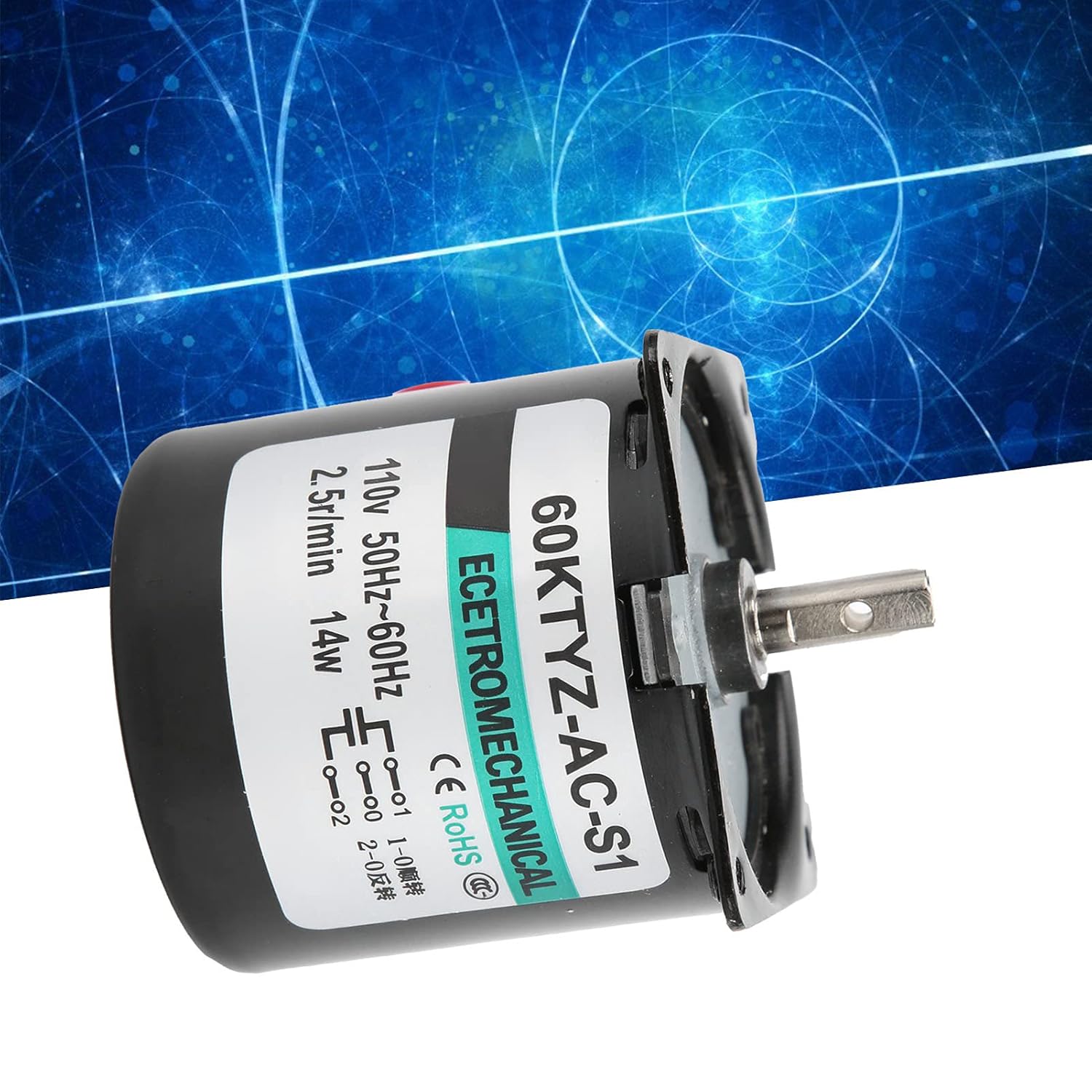

Synchronous Motor, Permanent Magnet Motor, AC Electric Synchron Motor 2-Way Controllable Motor 14W Permanent Magnet Slow Speed 2-Way High Torsion Central Shaft XD60KTYZ (2.5rpm/min AC110V)

Item Type: AC Synchronous Motor Model No.: XD60KTYZ Material: Copper Output shaft size: approx. 7 x 19 mm. Protection level: IP20. Insulation resistance: after rated motor operation at normal temperature and humidity, when measuring the insulation resistance between the coil and the motor housing with a DC500V resistance meter, it does not exceed 20MΩ TEMPERATURE INCREASE - It is normal to install a gearbox or equivalent heat sink and perform rated operation at normal temperature and humidity using the resistance method to measure the coil temperature rise between 75-80℃ Insulation class: Class E (130°C). Operating Environment Temperature: Motor: -10~+40℃ (without ice) Ambient Humidity Usage: 85% or less (non-condensing) CW/CCW: Yes Adjusted speed: no. Model voltage (V) Rotation speed) rpm/min) Normal Torque) kgf·cm) Long-life work Larger torque: kgf·cm) Intermittent working power W) XD60KTYZ AC220V 2.5 38 50 14 10 20 26 14 15 15 20 14 20 12 17 14 AC 110V 2.5 38 50 14 10 20 26 14 15 15 20 14 20 12 17 14 Package Content: 1 x AC Synchronous Motor

• High Quality Materials The AC synchronous motor gears are made of metal, wear-resistant, quiet, long life, with small size, high torque, ultra quiet, stable operation, etc.
• ELECTRONIC TORQUE IMPROVEMENT The AC synchronous motor has a pure copper coil stator and rotor, improved deceleration resistance and electrical conductivity, thereby increasing the torque of the motor.
• SUPERIOR PERFORMANCE - Permanent magnet motor gears with high temperature grease, low friction, low noise, slow temperature rise, improve gear life.
• HIGH EFFICIENCY, LOW LOSS - Using the low-speed motor of high-quality magnetic tiles, higher efficiency and lower dynamic loss.
• Wide range of uses: 2-way controllable motor widely used in various industries, such as micro machinery, various robots, various CNC machine tools, high-precision measuring instruments, electronic manufacturing equipment, pharmaceutical equipment, financial machinery, military industry and other industries.
