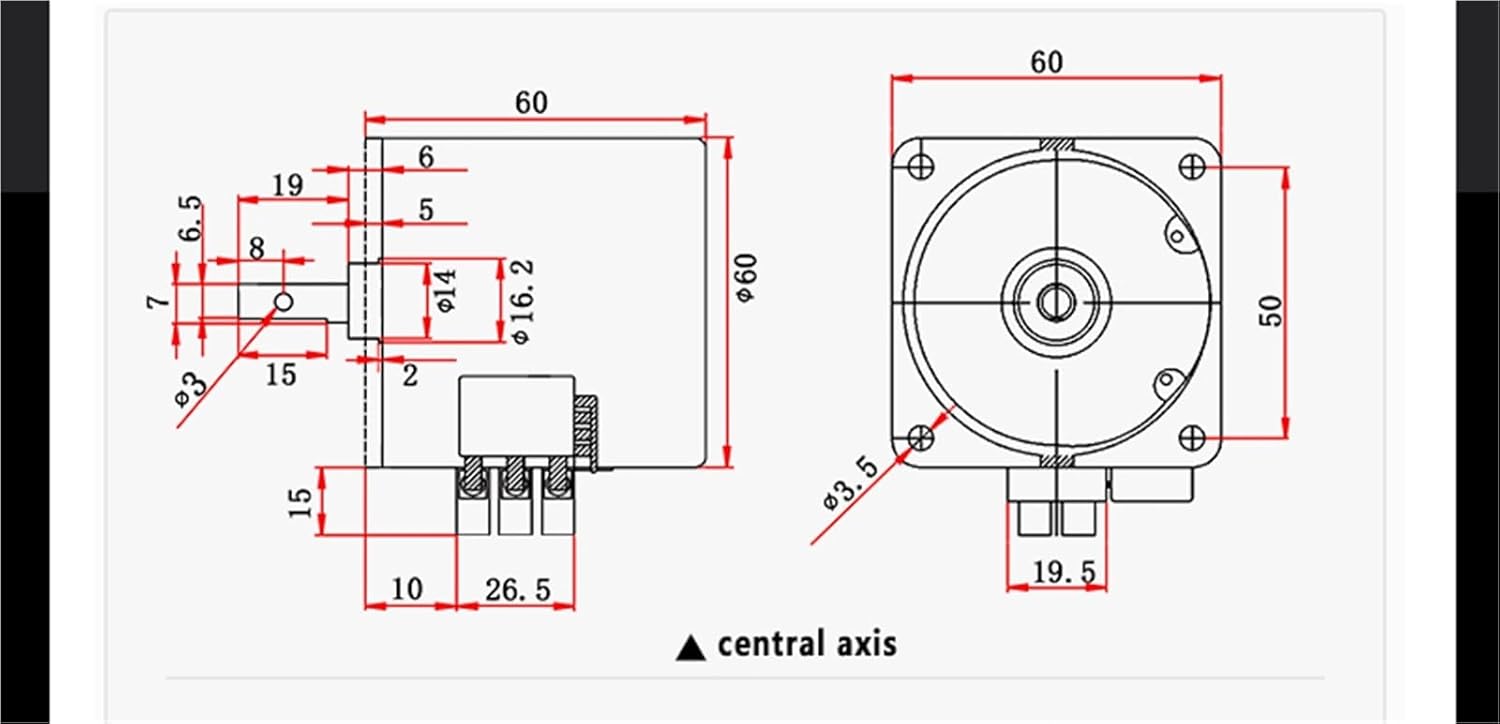

60KTYZ Center Axis AC Synchronous Motor 220V 14W 2.5rpm -110rpm Micro Gear Motor Permanent Magnet MotorThis product is metal toothThis model is center shaft/axis. if need eccentric axis model, click the picture to order.Features:Small size, high torqueProduced with pure copper wire and metal gears for constant speed.Fuselage diameter: 61MMFuselage height: 60MInput Voltage: 220VACPower: 14WDirection of rotation CW / CCWNoteSynchronous motor series, the number of revolutions is not the same, the output torque is not the same.The higher the rotational speed, the lower the force and the lower the weight driven.The lower the rpm, the greater the relative force, the greater the weight to be driven.Number of revolutions per minute (rpm/min): 2.5, 5, 10, 15, 20, 25, 30, 40, 50, 60, 80.This kind of motor is synchronous motor (model KTYZ),fixed speed (can not adjust the speed, the motor supports forward and reverse)Motor*1PC The motor will be more stable,lower noise and higher torque after mounting with bracket.Model Number : XD-60KTYZ AC Synchronous MotorPhase : Single-phaseProtect Feature : Totally EnclosedType : Synchronous MotorEfficiency : IE 2AC Voltage : 208-230 / 240 VOutput Voltage : 14wAC Voltage : AC220Vspeed : 2.5rpm~110rpmMax. Torque : 77kgf.cmNoise : about 30dB
| Model | LGYMSZSS |
|---|---|
| Brand Name | LGYMSZSS |
| Model Name | LGYMSZSS |
| Manufacturer | LGYMSZSS |
