Koei KFBS01-3305 Resin Saddle Bands, 0.9 inches (23 mm), Pipe Fixing Fittings, Joint, Electrical Conduit, Wire Stopper, Screws Included, Black, 10 Pieces

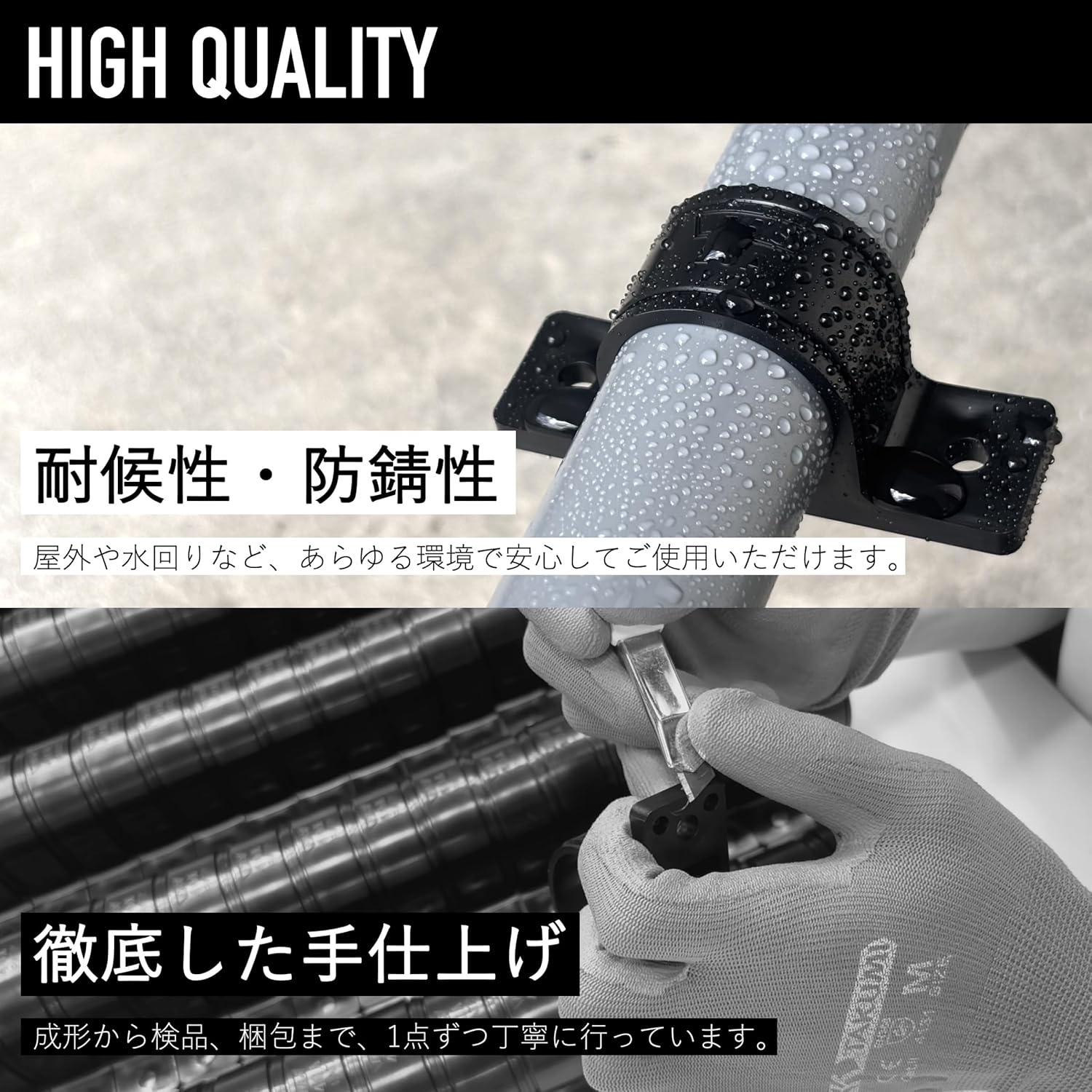

Product Features: Fix pipes by lifting from the mounting surface such as walls or floors. Prevents dust accumulation, corrosion and scratches on mounting surfaces By stacking the resin saddle band base (sold separately), you can adjust the height of 0.2 inches (5 mm) at a time. Made with weather resistant polypropylene, which is common in all colors. "Black" is recommended for outdoor environments. Expected life: 7 - 9 years) Excellent insulation and heat resistance, water resistance and abrasion resistance. Lightweight It will not rust, so you can use it safely around water. The elastic of the resin allows the band to spread and be easily removed from the middle of the pipe. This product is made in Japan from development, production and sales at municipal factories in Yamanashi Prefecture. (Precautions) Please use the appropriate size according to the outer diameter of the pipe. Depending on the manufacturer, it is recommended to check the "outer diameter" as the nominal diameter is different, such as the actual size is 1.0 inch (27.5 mm) and 1.0 inch (25.4 mm)). Please use it to secure it with a pin or screw. Base height (T) is basically 0.2 inches (5 mm) (1.8 inches (46.3 mm) or more 0.Please be careful when using the resin saddle band base (sold separately). The images are representative sizes. Shape varies by size. Thickness (t2) varies depending on the size. The small diameter and thick size may make it difficult for the band to expand when putting on or taking off. Depending on the usage environment, such as when used outdoors or at high temperatures, the surface discoloration and deterioration of the properties may occur. The color of the actual product may differ slightly from that of the product due to sunlight or lighting. Allowable Heat Resistance: Up to 176°F (80°C)

• For mounting on walls or floors: Supports and fixes pipes from the mounting surface. Prevents dust, corrosion and scratches. By layering the resin saddle band pedestal (sold separately), you can adjust the installation height of 0.2 inches (5 mm) at a time
• [Made of weather resistant polypropylene] Lightweight material improves energy efficiency for the power | Moderate flexibility and strength, so it can be easily removed and installed from the middle of the pipe | Also suitable for outdoor use
• (Available in a variety of sizes) Matches all pipes including errector pipes, single pipes, stainless steel pipes, aluminum pipes, PVC pipes, etc
• (Included Screws) Size: 5 x 20; Type: + A Trace Packing Type 1; Material: Austenitic Stainless Steel (SUSXM7); Surface Treatment: SS Black (Black Dyeing); Number of Attachments: 20 pieces; Rust resistant, safe even in outdoor environments
• Product Dimensions: A: 0.9 inches (23 mm) | C: 1.0 inches (25 mm) | L: 2.4 inches (62 mm) | P: 1.8 inches (45 mm) | T: 0.2 inches (5 mm) | D: 0.2 inches (6 mm) | Compatible pedestal size: No. 1 [Note] It differs from the nominal diameter Please choose the right size according to outer diameter (diameter)
