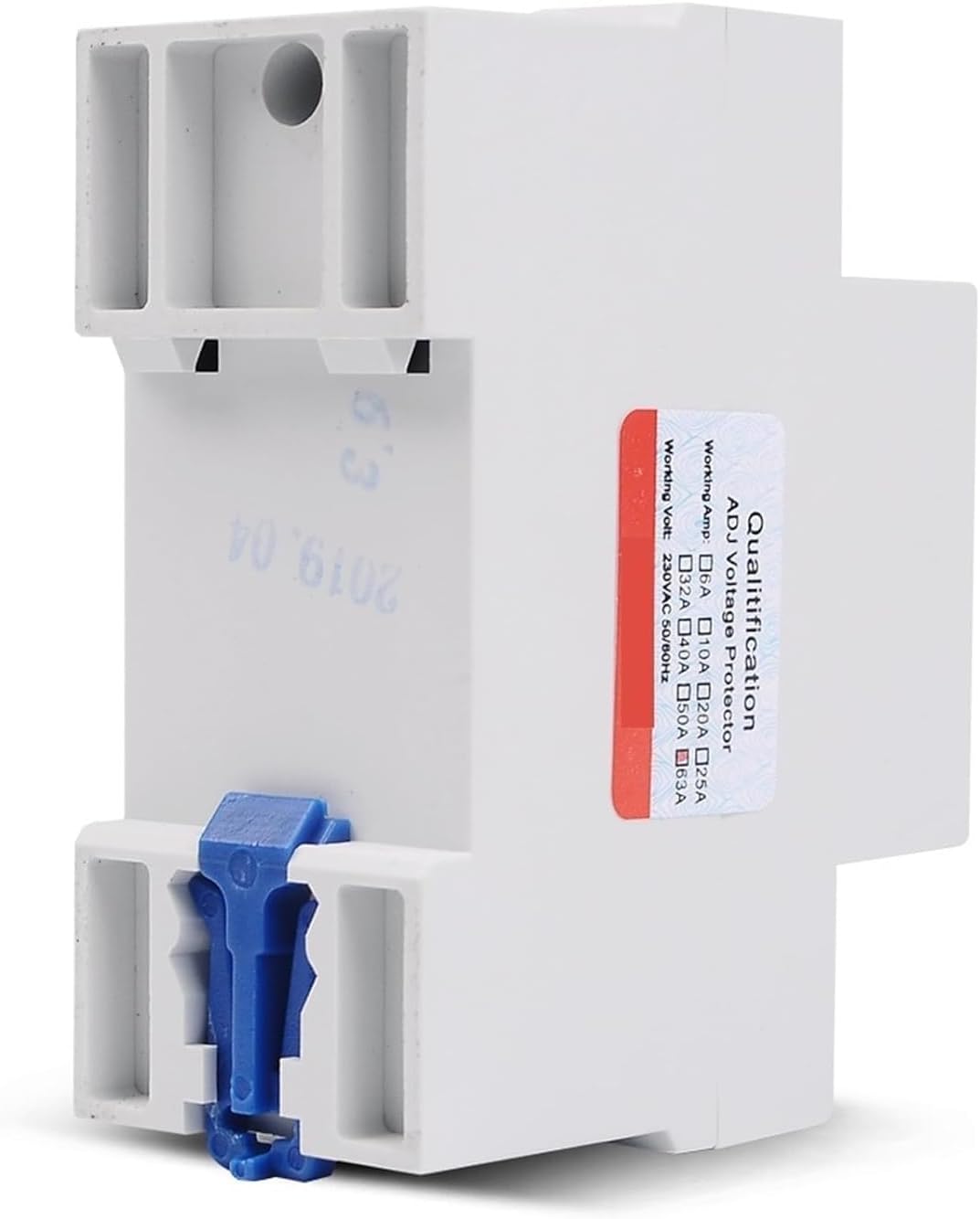

ALKOY Circuit Breaker Household 63A 220V Din Rail Adjustable Voltage Protector Relay with Over Current 1Pcs (Size : 63A 110V)
Product details
| Management number | 213629561 | Release Date | 2026/04/12 | List Price | $19.27 | Model Number | 213629561 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Circuit Breaker PanelsMagnetic Circuit Breakers63A 230V 50/60Hz Din Rail Adjustable Over And Under Voltage Protector Automatic Recovery With Over Current Product Parameters:1.Model number:SVP916-63A2.Power supply:230VAC 50/60Hz3.Max.Loading power:1~63A Adjustable(default:63A)4.Over-voltage protection value range:221V~300~OFF(default:280V)Over-voltage recovery voltage range:220V--299V(default:250V)Over-voltage protection action time:0.1s~10s(default value:0.1s)5.Under-voltage protection value range:219V--150V --OFF(default:160V)Under-voltage recovery voltage range:151V--220V (default:180V)Under-voltage protection action time:0.1s~10s(default:0.1s)6.Over-current adjustment range:1-63A (default:63A)Over-current action range:0.1~512second(default:5.0s)7.Recovery delay time:2s~120s(default:60s)8.Power-on delay time:2s~10s(default:2s)<;;2W10.Electric machinery life : 100,000 times11.Installation:35mm DIN rail
- Circuit Breaker Panels
- Magnetic Circuit Breakers
| Department | Unisex Adult |
|---|---|
| Item Weight | 1.76 ounces |
| Manufacturer | ALKOY |
| Number of pieces | 1 |
| Assembly required | No |
| Item model number | ALKOY |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
