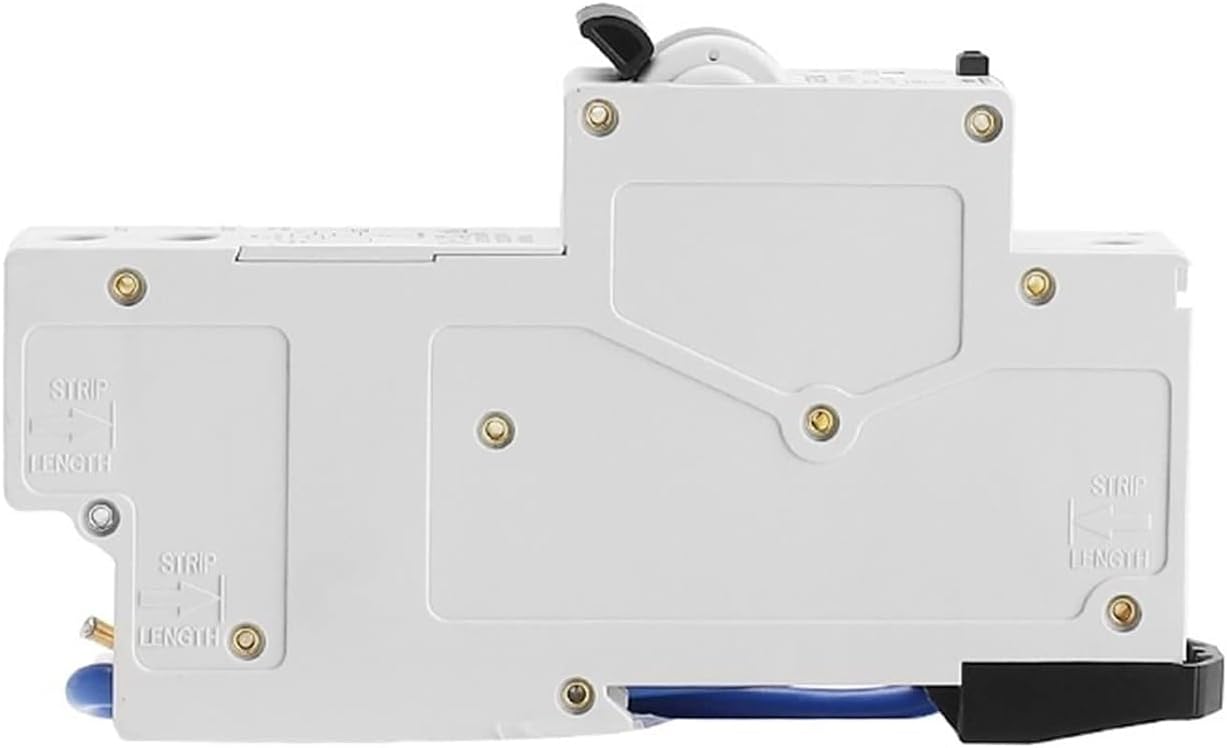

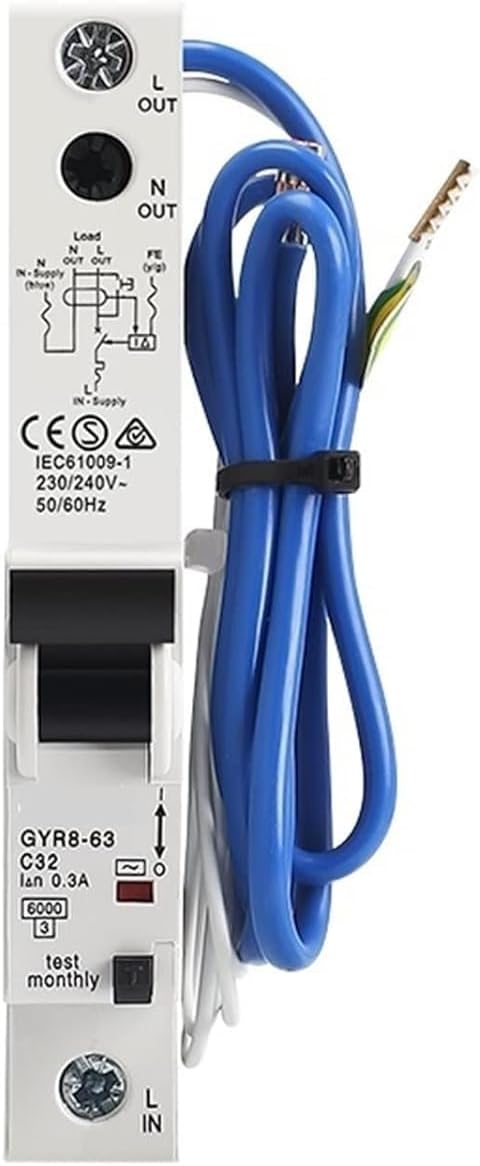

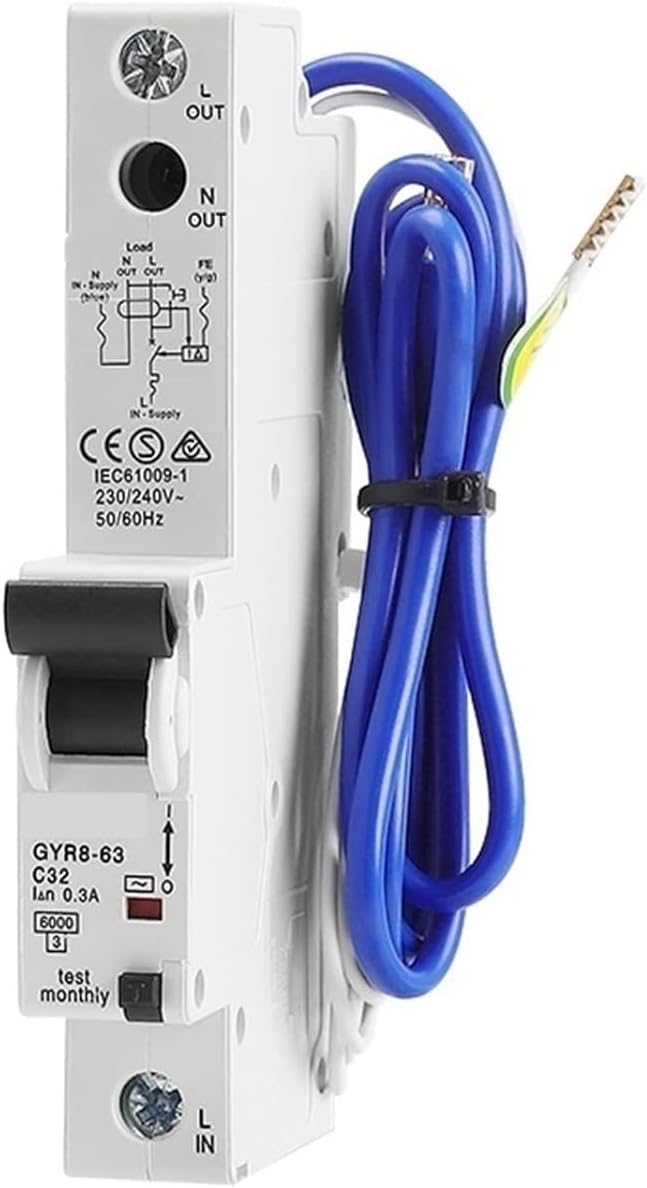

ALKOY Circuit Breaker GYR8 Electronic Type RCBO 18mm 230V 1P+N 6KA Residual Current Circuit Breaker with Over Current Potection 32A 10mA 30mA 1Pcs (Color : 16A, Size : 10mA)

Circuit Breaker PanelsMagnetic Circuit BreakersGYR8 Electronic Type RCBO 18mm 230V 1P+N 6KA Residual Current Circuit Breaker With Over Current Potection 32A 10mA 30mA 1PcsGeneral***It is AC Electronic type RCBO with wires1P+N 6A 10A 16A 20A 25A 32A 10mA 10mA 30mA/100mA/300mA***GYR8 Series RCBO- Residual current circuit breaker with over-current protection are mainly used in lines with AC 50Hz or 60Hz, rated voltage of 230V/240V and rated current to 32A.Protection against earth fault/leakage current,short-circuit,overload,and function of isolation.Indicator window easy to see the breaker ON or OFF operation. Provides complementary protection against direct contact by human body.Effectively electric equipment against insulating failure.It used to be DIN rail 35mm mounting. Provides complementary protection to household and commercial distribution systems.Rated Current(In):6A,10A,13A,16A,20A,25A,32ANumber of Pole :1P+NRated working voltage(Ue):230/240V ACRated frequency:50/60HzTripping curve:B,C,DRated short-curcuit capacity:6KaType:Electro-magnetic Rated residual operating current(mA)0.01, 0.03, 0.1, 0.3 ( 10mA, 30mA, 100mA, 300mA)Electro-mechanical endurance:4000 cyclesTripping duration:instantaneous0.1sConformed standard:IEC61009-1
