ER20 Air-Cooled Spindle Motor G-Penny 1.5KW Square Spindle Without mounting Flange 0.01mm 4 PCS Ball Bearings(110v)
Product details
| Management number | 213596265 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 213596265 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

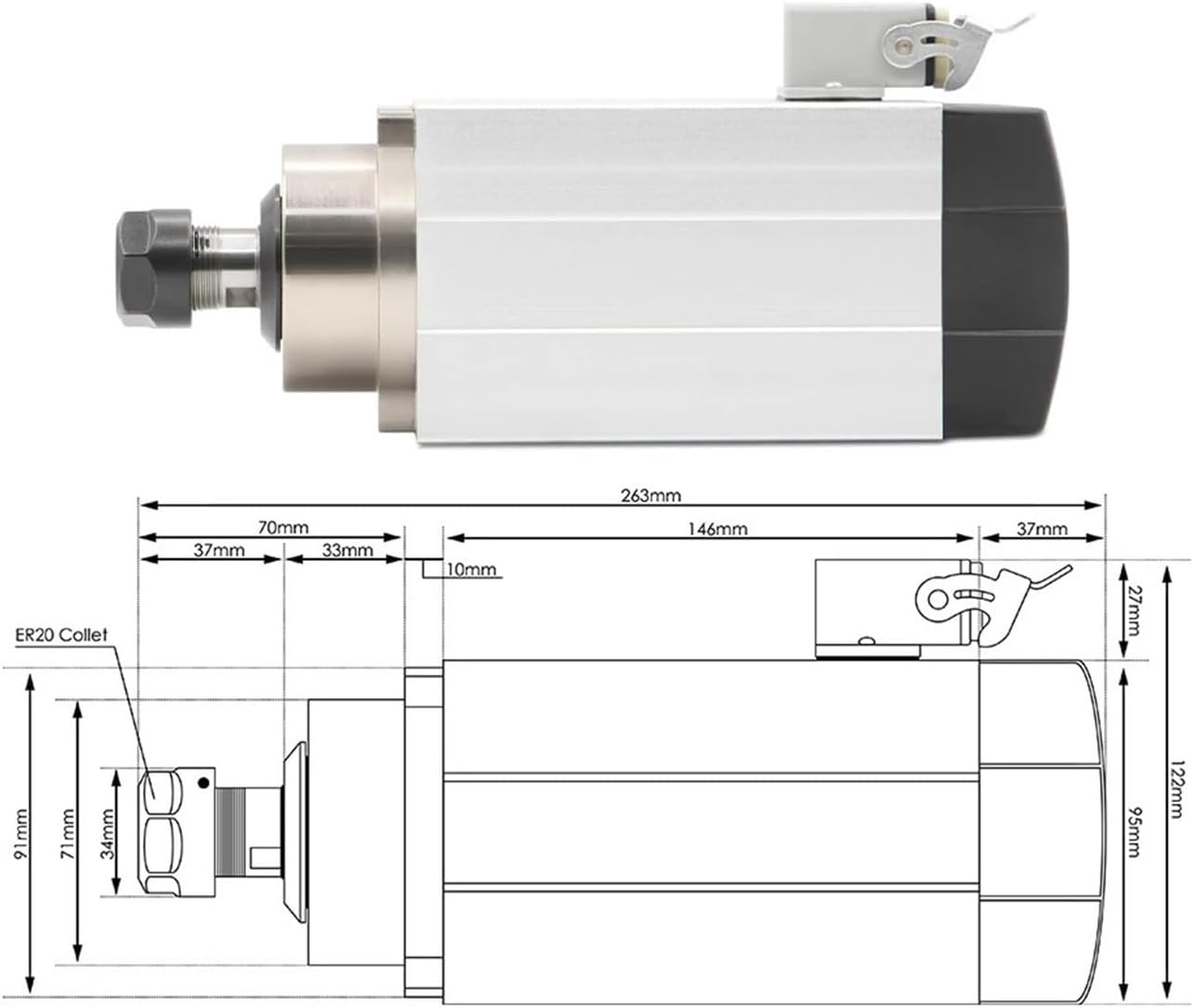

Power: 1.5 kW Voltage: 220V / 380V Current: 6.5A 0~300Hz Speed: 0~18000RPM Displacement: less than 0.001mm less than 0.001mm less than 0.01mm Bearing Type 2*7005 P4 DT and 27002 P4 DT 4 Angular Contact Bearings Collet ER20 Air-cooled ER20 clamp block Approvals: CE Driving: electric motor. Max Torque: 0.48N.m Operating speed: 0~18000rpm Model: 1.5 kW ER20 air cooled spindle. Application: Milling Power: 1,5 kw Voltage: 220V Dimensions: 263 x 82 x 95 mm. Current: 6.5 Amps Air Cooling Bearing Type 2x7005C P4 DT and 2x7002 P4 DT Clamp: ER20 ER20 Nozzle range: 1-13mm (including 1/4, 1/8, 1/2) Flange: without mounting flange
- Stability: can be used stably for a long time
- Design: robust design, easy to maintain
- Easy to install: simple operation, easy to install
- Application scenario: widely used in many industrial environments
- Correct use: correct use can extend the life of the product
| Department | unisex-adult |
|---|---|
| Manufacturer | KACOME |
| Item model number | KACOME |
