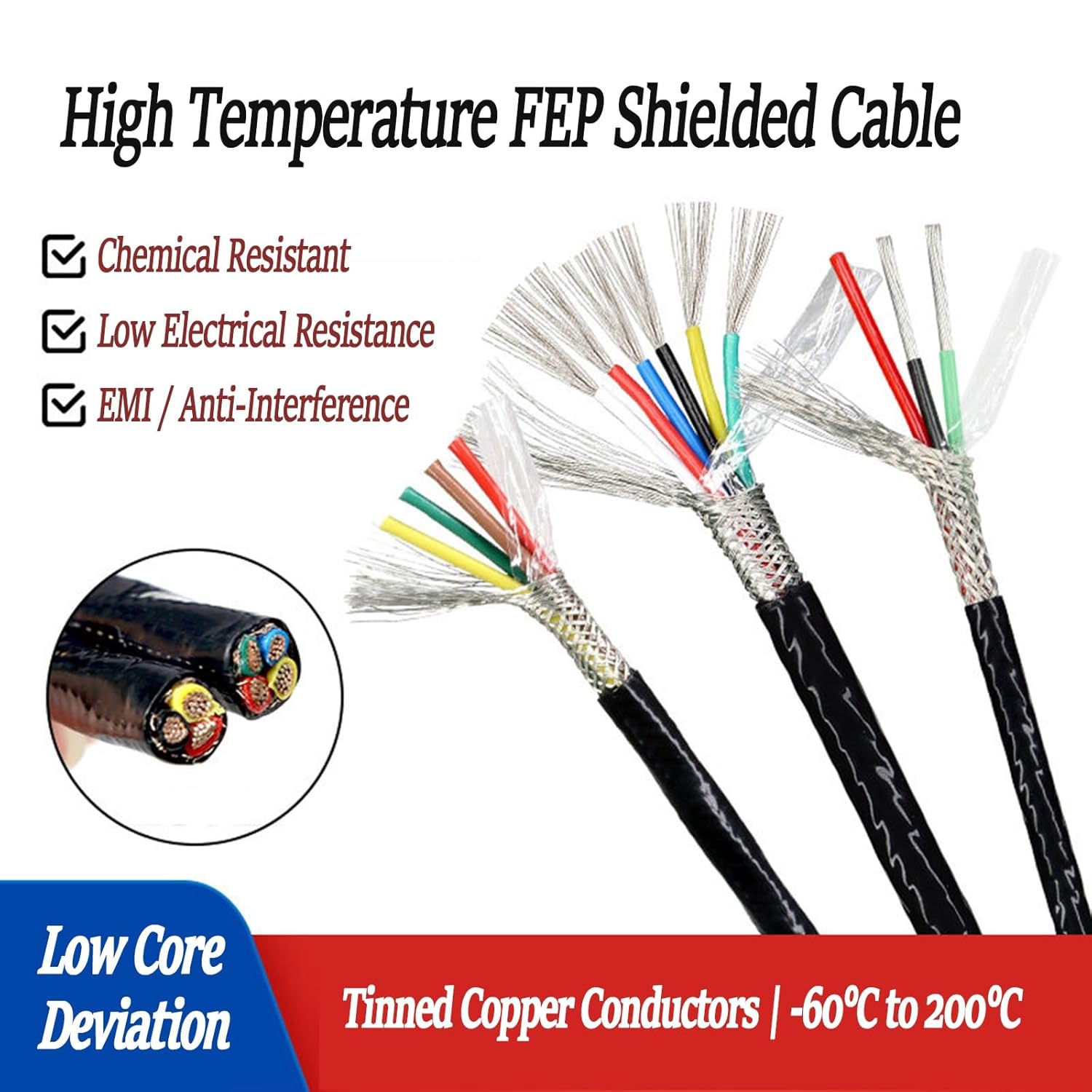

2/3/4 Core FEP High-Temperature Shielded Cable 50FT Tinned Copper Conductor Braided Shield Wire -60°C to 200°C Multi-Conductor Flexible Signal Industrial Cable for PLC, Audio(2-Core,16AWG)

Technical SpecificationsCable Type: Shielded Multi-Conductor Signal CableConductor Material: Tinned Copper (Stranded)Insulation Material: FEPLength: 50FTShielding: Tinned Copper BraidJacket Material: FEPGauge: 0.12mm²(26AWG) , 0.2mm²(24AWG) , 0.35mm²(22AWG) ,0.5mm²(20AWG) , 0.75mm²(18AWG) ,1.0mm² (16AWG), 1.5mm²(14AWG)Temperature Range: -60°C to +200°CRated Voltage: 300/500VCertifications: CE, RoHS2×0.35mm² – 7/0.23mm, OD 3.4mm2×0.5mm² – 19/0.18mm, OD 3.8mm2×1.0mm² – 19/0.25mm, OD 4.7mm3×0.35mm² – 7/0.23mm, OD 3.5mm3×0.5mm² – 19/0.18mm, OD 3.9mm3×0.75mm² – 19/0.23mm, OD 4.7mm3×1.5mm² – 19/0.32mm, OD 5.5mm4×0.5mm² – 19/0.18mm, OD 4.6mm4×0.75mm² – 19/0.23mm, OD 5.2mm4×1.5mm² – 19/0.32mm, OD 6.2mmShown above are partial specifications. Please contact us for the complete list of available models and configurations.Typical ApplicationsThis shielded cable is suitable for:Industrial Automation*Audio Systems*Surveillance and Security*Data Acquisition*Communication SystemsNote: Images are for reference only. Professional installation recommended. Please verify voltage, temperature, and gauge requirements for your specific application before ordering.

• 【Wide Temperature Range -60°C to +200°C】 Constructed with FEP (Fluorinated Ethylene Propylene) insulation and jacket, this cable maintains flexibility and electrical performance in extreme environments, from freezing cold to high-heat industrial applications
• 【Tinned Copper Conductor with Braided Shield】 Features stranded tinned copper conductors for reliable conductivity and corrosion resistance. The tinned copper braided shield provides effective protection against electromagnetic interference (EMI) and radio frequency interference (RFI)
• 【2-Core, 3-Core, and 4-Core Configurations】 Available in multiple conductor counts to suit various signal transmission and low-power applications. Conductor sizes ranging from 0.3mm² to 1.5mm²
• 【Excellent Electrical Performance】 The FEP insulation provides high dielectric strength and low signal loss, ensuring stable transmission for sensitive analog and digital signals. Tinned copper conductors maintain consistent conductivity over extended use
• 【Wide Range of Applications】 Suitable for industrial automation systems, PLC control panels, robotic arms, medical diagnostic equipment, audio signal transmission, surveillance systems, and data acquisition devices. Performs reliably in both fixed and flexible installations
