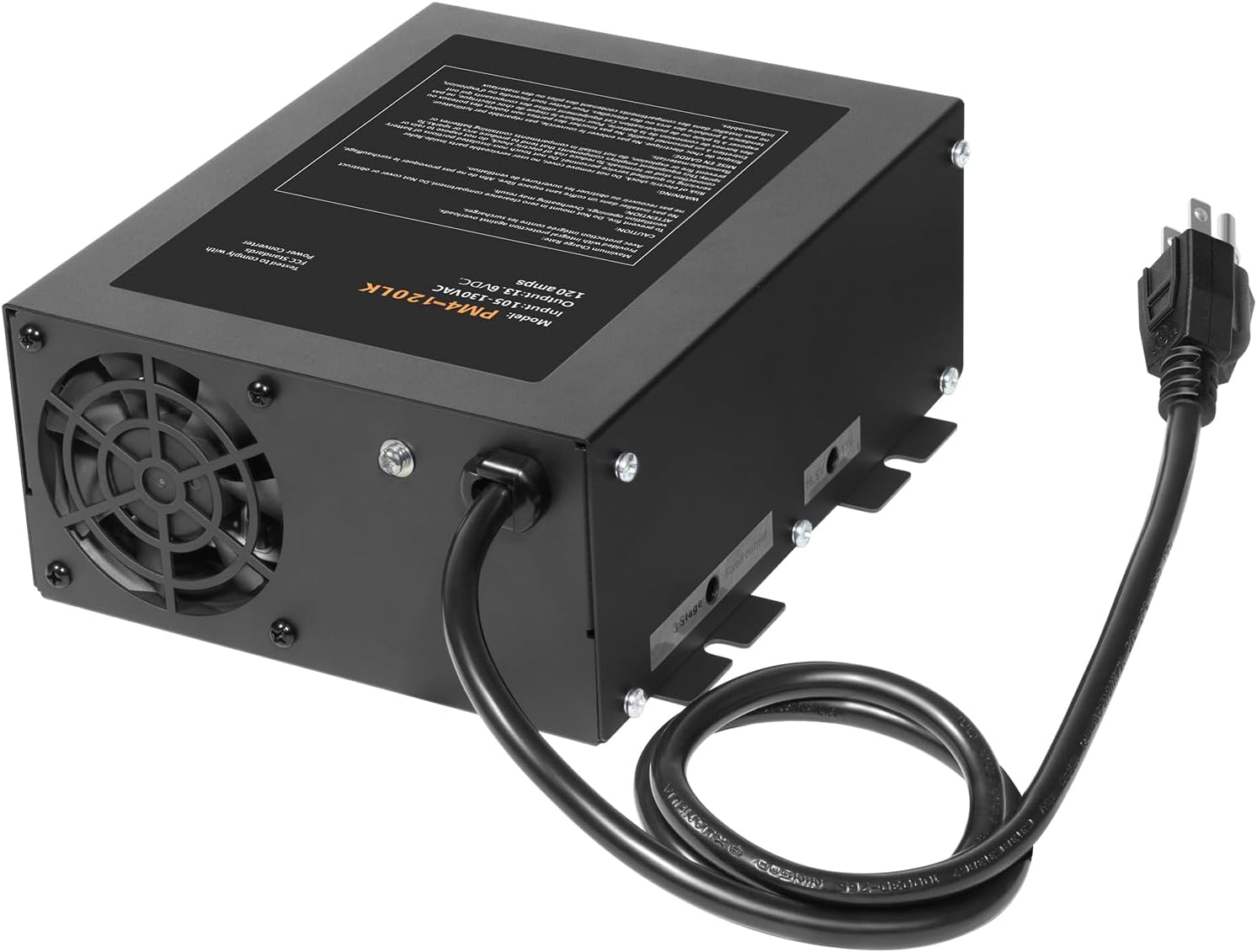

120A RV Power Converter with Built-in 4 Stage Smart Battery Charger with Reverse Polarity, Overload and Thermal Protection, Replacement for PM4 Power Converter 120A 120 VAC to 12 VDC 120 Amp

Product Specifications - Input: 120 VAC, 60 HZ. Output current: 120 ADC. Output voltage: 13.0-16.5 VDC. DC Output Voltage (No Load) approx: 14.8V(Adjustable), Max Amp Output Continuous: 120 amps, Max Power Output Continuous: 1776 watts, Max AC Current: 15 Amps, Typical Efficiency: >93%, Fan Control: Proportional.

• Wide Application – Our converters ideal for use in your RV, automotive, marine motors, car audio, stereo, CV radio and LED lights, as well as provide some power for your house, off-grid lighting, and solar backup.
• Powerful Function – The converter can be wired in series or parallel to achieve a higher power output and meet every power requirement. This power converter can convert 120 VAC to 12 VDC to fully charge and maintain any battery type, while providing clean DC power for 12V equipment. It can also function as a power supply with its adjustable fixed output mode, which can be set between 13.0 and 16.5 VDC.
• Protection Features - Electronic current limiting automatically shuts off the power supply in the following situations: Reverse battery polarity (external fuse), Short circuit, Over current, Over temperature, Over load
• Specifications – Power Input:950W, Input Voltage: 105-130 VAC/60Hz, Output Current(LA/L2): 55A/50A, Converter Type: 3 Stage Converter Charger, Voltage Output: 13.2 - 14.4 VDC / 13.6 - 14.6 VDC, Normal mode: 13.6 VDC.
• 3-stage Charging Mode – It has an automatic 4 smart batteries charger maintains three charging modes, Automatic three-stage battery charging maintains your batteries life with three nominal voltage output: 13.2VDC range “float” mode, 13.6VDC range “absorption" mode, 14.4 VDC range “bulk” mode. Quiet operation in a wide range outputs.
• Product Specifications - Input: 120 VAC, 60 HZ. Output current: 120 ADC. Output voltage: 13.0-16.5 VDC. DC Output Voltage (No Load) approx: 14.8V(Adjustable), Max Amp Output Continuous: 120 amps, Max Power Output Continuous: 1776 watts, Max AC Current: 15 Amps, Typical Efficiency: >93%, Fan Control: Proportional.
• Satisfaction Guarantee - Besttruck values customers shopping experience and provides customers with a good shopping environment. If you are not satisfied with the product when you receive, you can choose to return it within 30 days, we provide a one-year warranty, or you can feel free to contact us.
