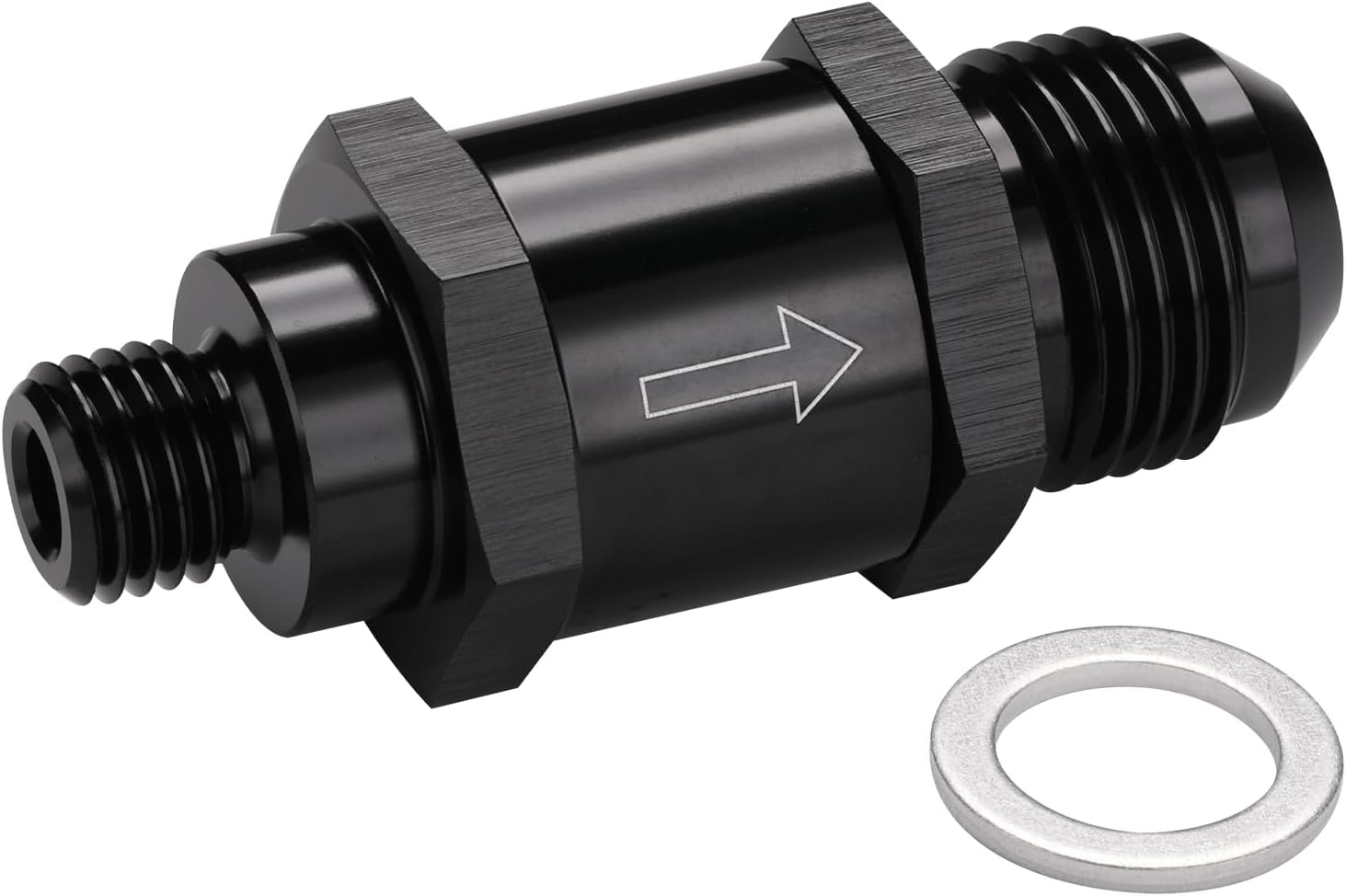

M12x1.5 Metric to 10AN Male Non Return One Way EFI Inline Check Valve Fitting Aluminum Black
Product details
| Management number | 212929410 | Release Date | 2026/04/12 | List Price | $12.60 | Model Number | 212929410 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Material: 6061-T6 aluminum alloy Size: inlet: M12x1.5 male, outlet: AN10 (7/8-14 UNF) male, approximately 36mm housing length (excluding inlet/outlet fittings) Color: black anodized Opening Pressure: 1.5 PSI Maximum pressure: 1,500 PSI Features: - These high quality EFI check valves will maintain fuel pressure in the lines to decrease/eliminate priming time. This will also help fight pressure fluctuations on the pump itself, especially when used in a multiple fuel pump application such as two pumps in parallel. This will help prolong the life of the pump itself and prevents tuning and pressure issues caused when not using a check valve - M12 x 1.5mm thread screws straight into the outlet of a 044 fuel pump (or any other external fuel pump using an M12x1.5mm thread) and when fitted gives you a -10AN outlet, making fitment to the rest of your custom fuel system a breeze; Opening housing is secured with an O-ring for a perfect seal - Compatible with fuels, oil, coolant, air, diesel, methanol, ethanol, E85 Notice: Professional installation is highly recommended! (No instructions included)
- One way spring / shuttle type EFI check valve. Inlet: M12x1.5 male, outlet: AN10 (7/8-14 UNF) male, approximately 36mm housing length (excluding inlet/outlet fittings); Opening Pressure: 1.5 PSI / maximum pressure: 1,500 PSI
- Manufactured from lightweight 6061-T6 billet aluminum; Anodized finish for strength, durability and anti-corrosion
- These high quality EFI check valves will maintain fuel pressure in the lines to decrease/eliminate priming time. This will also help fight pressure fluctuations on the pump itself, especially when used in a multiple fuel pump application such as two pumps in parallel. This will help prolong the life of the pump itself and prevents tuning and pressure issues caused when not using a check valve
- M12 x 1.5mm thread screws straight into the outlet of a 044 fuel pump (or any other external fuel pump using an M12x1.5mm thread) and when fitted gives you a -10AN outlet, making fitment to the rest of your custom fuel system a breeze; Opening housing is secured with an O-ring for a perfect seal
- Compatible with fuels, oil, coolant, air, diesel, methanol, ethanol, E85
| Size | 10AN - M12x1.5 |
|---|---|
| Brand Name | Podavelle |
| Unit Count | 1.0 Count |
| Valve Type | check valve |
| Thread Size | 10AN - M12x1.5 |
| Thread Type | M12x1.5, AN10 |
| Manufacturer | Podavelle |
| Model Number | PV046-10-M1215BK |
| Material Type | Aluminum |
| Connector Type | M12x1.5 male, AN10 male |
| Number of Ports | 2 |
| Maximum Pressure | 1500 Pound per Square Inch |
| Inlet Connection Type | Threaded |
