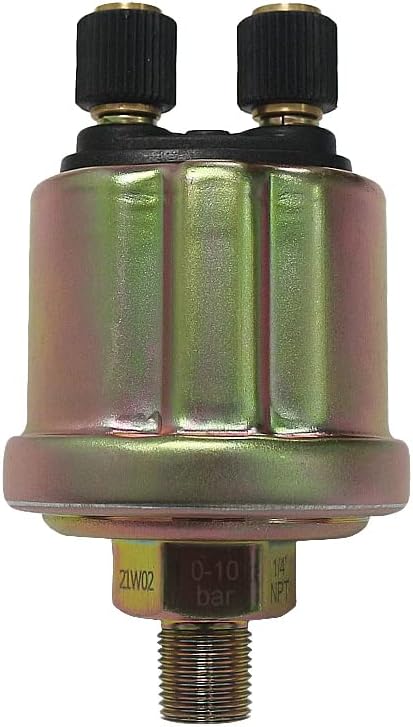

KUS Mechanical Oil Pressure Sensor (NPT-1/4(0-10bar)
Product details
| Management number | 212876007 | Release Date | 2026/04/12 | List Price | $13.60 | Model Number | 212876007 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Operating voltage:6~24V Conducting power: <5W Operating temperature: -25 ~120°C(120°C MAX 1H) Measuring range: 0~5Bar or 0~10Bar -Alarm: 0.8Bar or 1.4BarThread Type: 0-5Bar: NPT-1/4(alarm:0.8Bar), NPT-1/8(alarm:0.8Bar),M10*1.0(alarm：1.4Bar) - Thread Type:0-10Bar: NPT-1/8(alarm：0.8Bar) , M10*1.0(alarm：0.8Bar) Output signal: Standard resistance value: 10~184Ω Thread fitting: NPT-1/8,M10X1 It combines the advantages of excellent anti-vibration performance, long service life, simple assembly, stable quality, wide range of operating temperature, etc. It is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of industrial process, hydraulic and pneumatic control project, etc. Protection rank: IP66
- Measuring range: 0~5Bar or 0~10Bar
- Alarm: 0.8Bar or 1.4Bar
- Thread fitting: NPT-1/8, M10X1
- Operating voltage:6~24V
- Output signal: 10~184Ω
| UPC | 680465131541 |
|---|---|
| Brand Name | KUS |
| Style Name | Mechanical |
| Output Type | resistance |
| Manufacturer | KUS |
| Mounting Type | Flange Mount |
| Measuring Range | 0-5 Bar, 0-10 Bar |
| Maximum Supply Voltage | 24 Volts |
| Upper Temperature Rating | 120 Degrees Celsius |
| Specific Uses For Product | Pressure |
