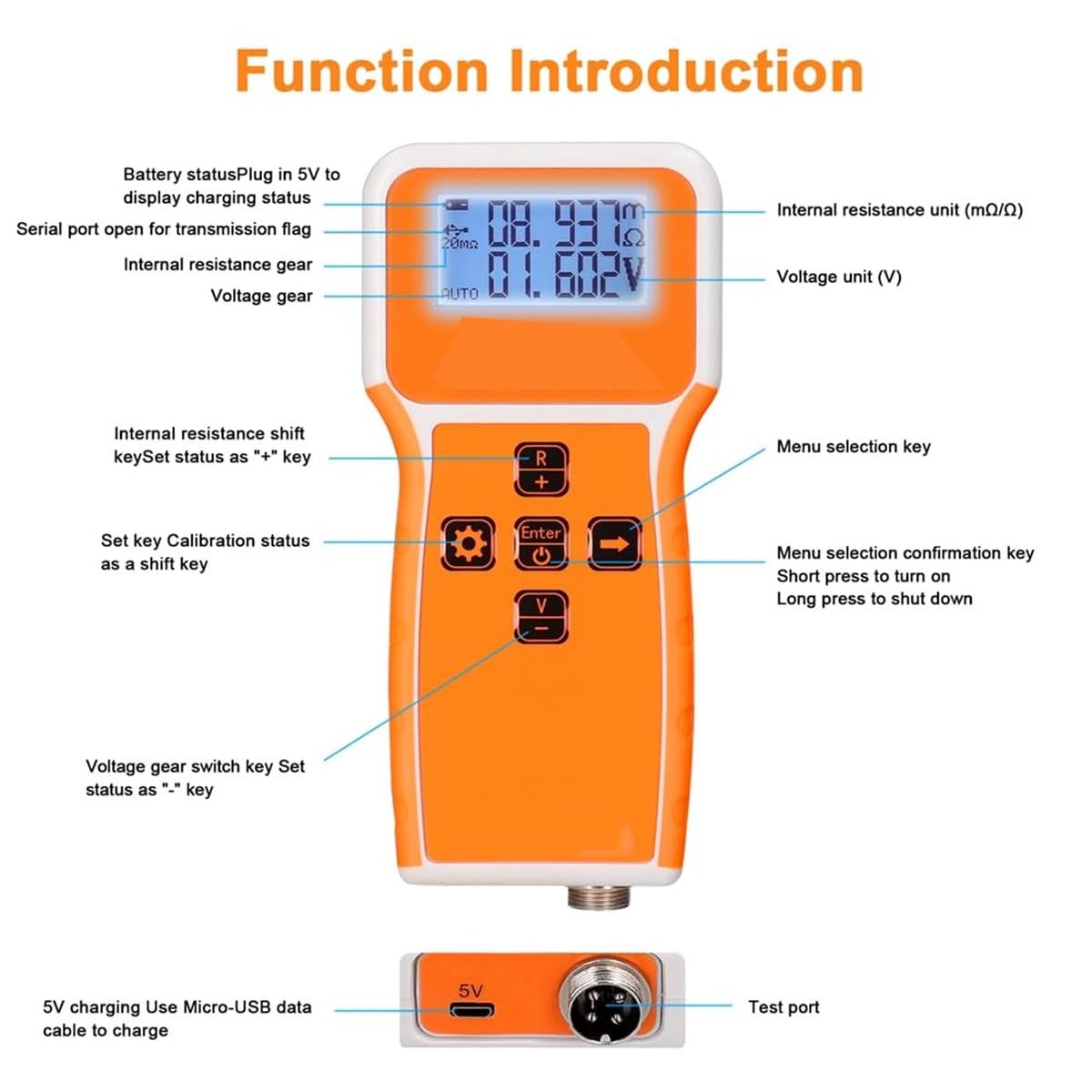

RC3563 Battery Voltage Internal Resistance Tester High-precision Trithium Lithium Iron Phosphate 18650 Battery Tester Ohmmeter

1. Intelligent control, LCD display2. The battery internal resistance tester can measure the internal resistance and voltage of the battery at the same time3. Used to measure the AC resistance of capacitors and low resistance value of high precision resistance4. High precision, high efficiency, low cost, light weight, energy saving and environmental protection5. Widely used in various battery production, maintenance, testing, scientific research laboratories and other occasions1.Applicable battery type2.Before using the Battery Detector, make sure that you know the type of battery to which the device applies. Different models of detectors may support different types and sizes of batteries. Make sure the detector is compatible with the battery to be tested.3. Connect the battery correctly4. Ensure that the batteries are correctly connected to the detector before performing tests. Follow the connection instructions provided by the manufacturer to prevent problems that may result from incorrect connections.5. Environmental safety:6.When using the battery detector, ensure that the working environment is well ventilated. Avoid operating in humid or flammable environments to minimise possible safety risks during battery testing.7. Read the instructions for use carefully8. When using the 1030 Battery Tester for the first time, read the instructions for use provided by the manufacturer in detail. Understand the meaning of the device's various functions, buttons and indicators to ensure proper operation and correct interpretation of test results.9. Periodic Calibration and Maintenance10. Calibrate the battery tester regularly to ensure the accuracy of the test results. Also, keep the equipment clean and maintained to prevent dust or dirt from affecting test performance.Product parameters：Measuring parameters: AC resistance, DC voltageBasic accuracy: resist

• 【THE BATTERY INTERNAL RESISTANCE TESTER】：can measure the internal resistance and voltage of the battery at the same time It adopts a Kelvin four-wire test clip, which can better avoid the influence of contact resistance and wire resistance, and can perform more accurate measurements.
• 【INTELLIGENT CONTROL LCD DISPLAY】：.It has the advantages of high precision, high efficiency, low cost, light weight, energy saving and environmental protection. Built-in 1000mAh lithium battery, 5V charging, Android mobile phone charger can be used, very convenient I can also be used to measure the AC resistance of resistors and low-resistance high-precision resistance.
• 【GOOD TOOL TO TEST BATTERY PERFORMANCE】This internal resistance tester can help you figure out good and bad batteries. To process series-connected battery packs, it is necessary to match the capacity, internal resistance and voltage of the cells. It is suitable for testing lead acid, lithium ion, lithium iron phosphate etc. Good tool to test battery performance before you DIY battery pac
• 【WIDE APPLICATIONS】：This product is widely used in various battery production, maintenance, testing, scientific research laboratories and other occasions. It can also be used to measure the AC resistance of resistors and low-resistance high-precision resistance.
• 【RESISTANCE SUPPORTS SERIAL PORTS】：and the measuring ranges is 1μΩ~200Ω, and the measuring ranges of voltage is 0.0001V~±100V direct current. Added serial port communication function, free powerful computer analysis software. Serial port needs to be opened in the machine to be to communicate with the computer, the default is closed, the baud rate is 115200.
