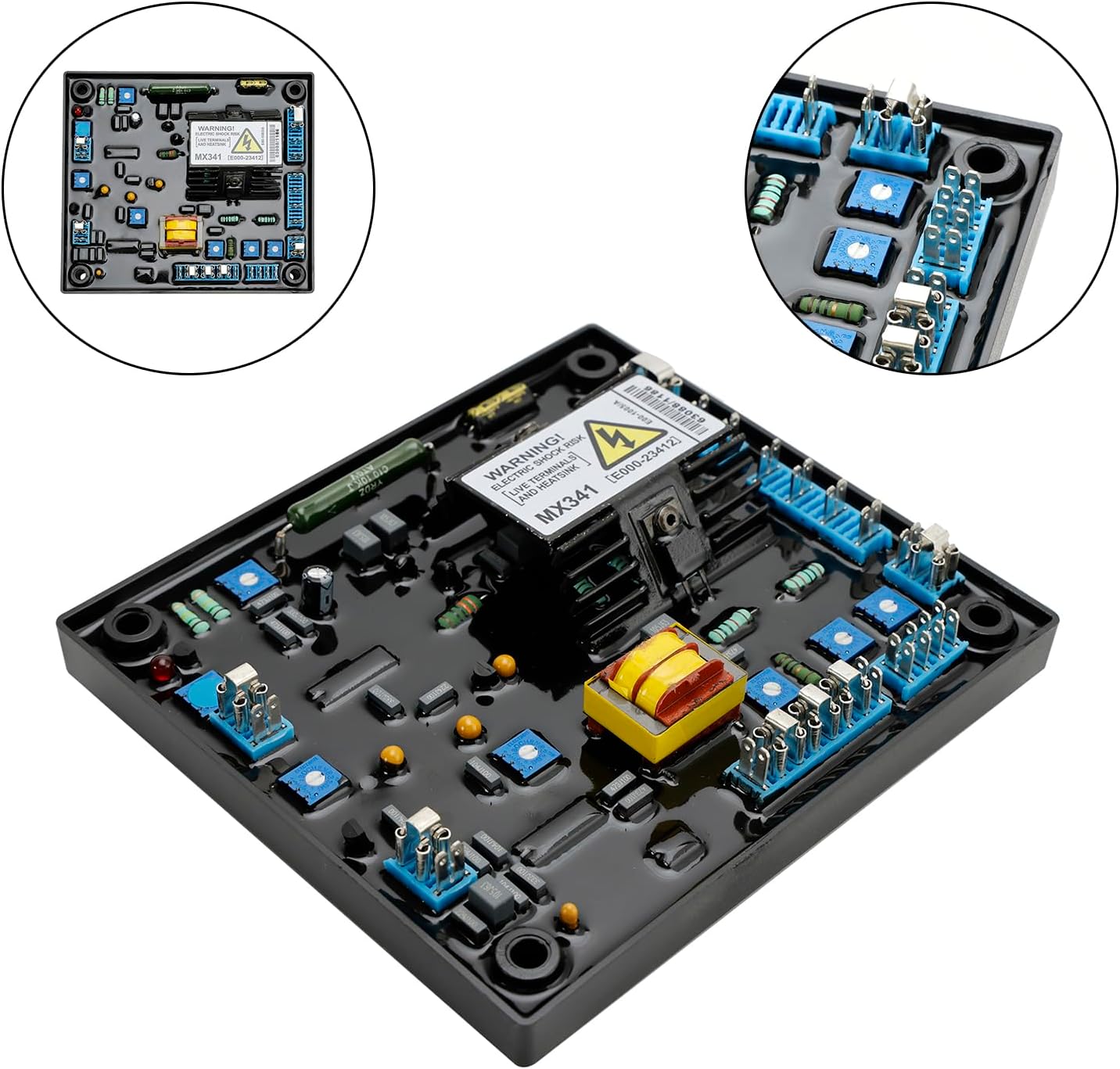

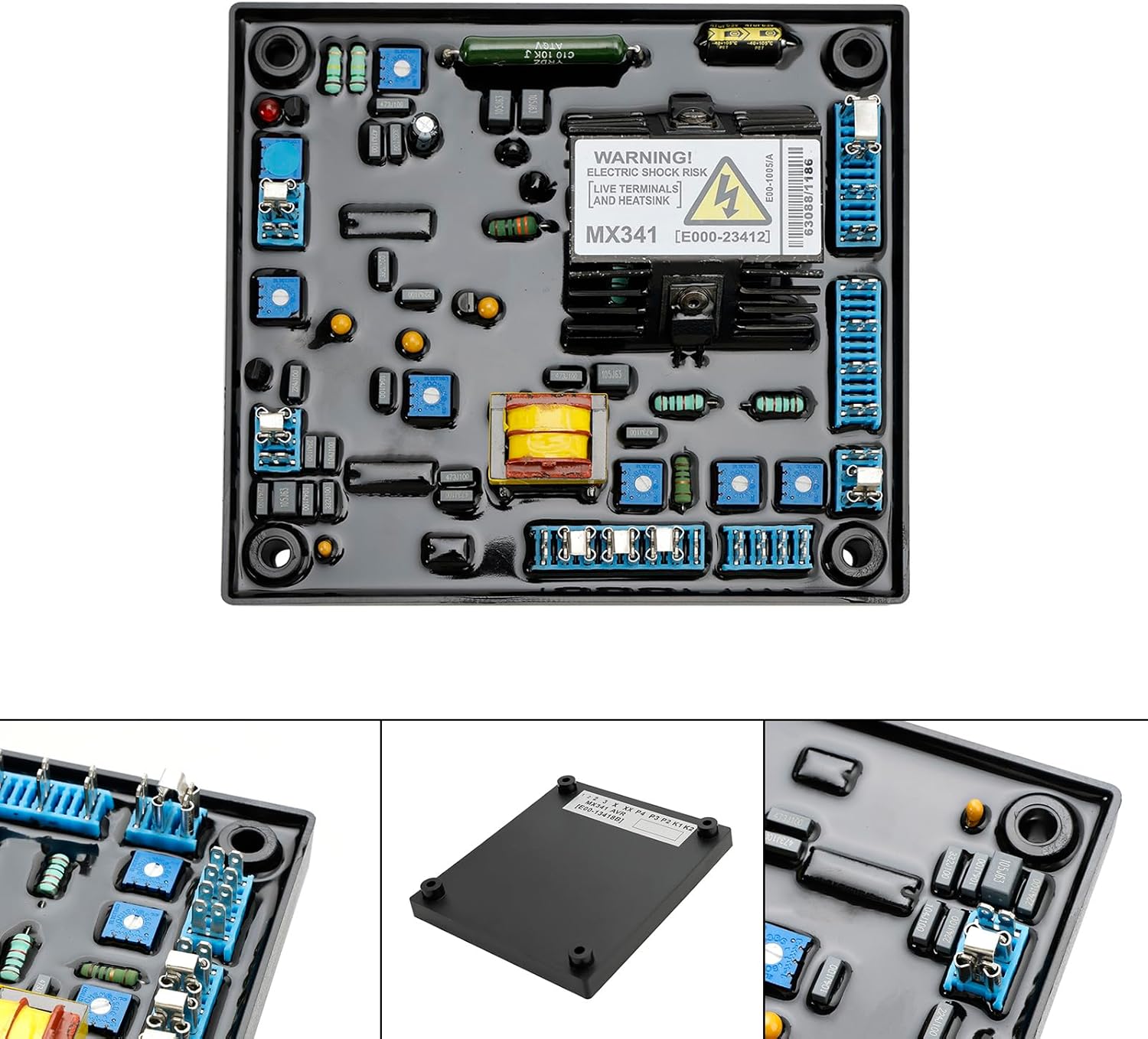

Areyourshop AVR MX341 E000-23412 Automatic Voltage Regulator for Stamford

AVR MX341 E000-23412 Automatic Voltage Regulator for StamfordVoltage 190-264V ac max, 1 phase, 2 wirePOWER INPUT (PMG)Voltage 140-220V ac max, 3 phase, 3 wireCurrent 3A/phaseOUTPUTVoltage max 120V dcCurrent continuous 2.7 AIntermittent 6A for 10 secs.Resistance 15 ohms minimumREGULATION+/- 1% (see note 1)THERMAL DRIFT0.03% per oC change in AVR ambient (note 2)SOFT START RAMP TIME3 secondsTYPICAL SYSTEM RESPONSEAVR Response 10 msFiled current to 90% 80 msMachine Volts to 97% 300 msEXTERNAL VOLTAGE ADJUSTMENT+/-10% with 1 k ohm 1 watt trimmer (see note 3)UNDER FREQUENCY PROTECTIONSet point 95% Hz (see note 4)UNIT POWER DISSIPATION12 watts maximumANALOGUE INPUTMaximum input +/- 5V dc (see note 5)Sensitivity 1v for 5% Generator Volts (adjustable)Input resistance 1k ohmQUADRATURE DROOP INPUT10 ohms burdenMax. sensitivity: 0.07 A for 5% droop 0PFMax. input: 0.33 AOVER EXCITATION PROTECTIONSet point 75 V dcTime delay 10 seconds (fixed)ENVIRONMENTALOperating temperature -40 to +70oCRelative Humidity 0-70oC 95% (see note 6)Storage temperature -55 to +80oCNOTES:1. With 4% engine governing.2. After 10 minutes.3. Applies to Mod status D onwards. Generator de-rate mayapply. Check with factory.4. Factory set, semi-sealed, jumper selectable.5. Any device connected to the analogue input must be fullyfloating (galvanically isolated from ground), with aninsulation strength of 500V ac6. Non condensing.Package Included:1 X Product Instructions1 X MX341 Automatic Voltage Regulator

• AVR MX341 E000-23412 Automatic Voltage Regulator for Stamford.
• MX341 is a two phase sensed Automatic Voltage Regulator and forms part of the excitation system for a brush-less generator. Excitation.
• Sustained generator short circuit current is another feature of the PMG system.
• Soft start circuitry is included to provide a smooth controlled build up of generator output voltage.
• Provision is made for the connection of a remote voltage trimmer, allowing the user fine control of the generator's output.
