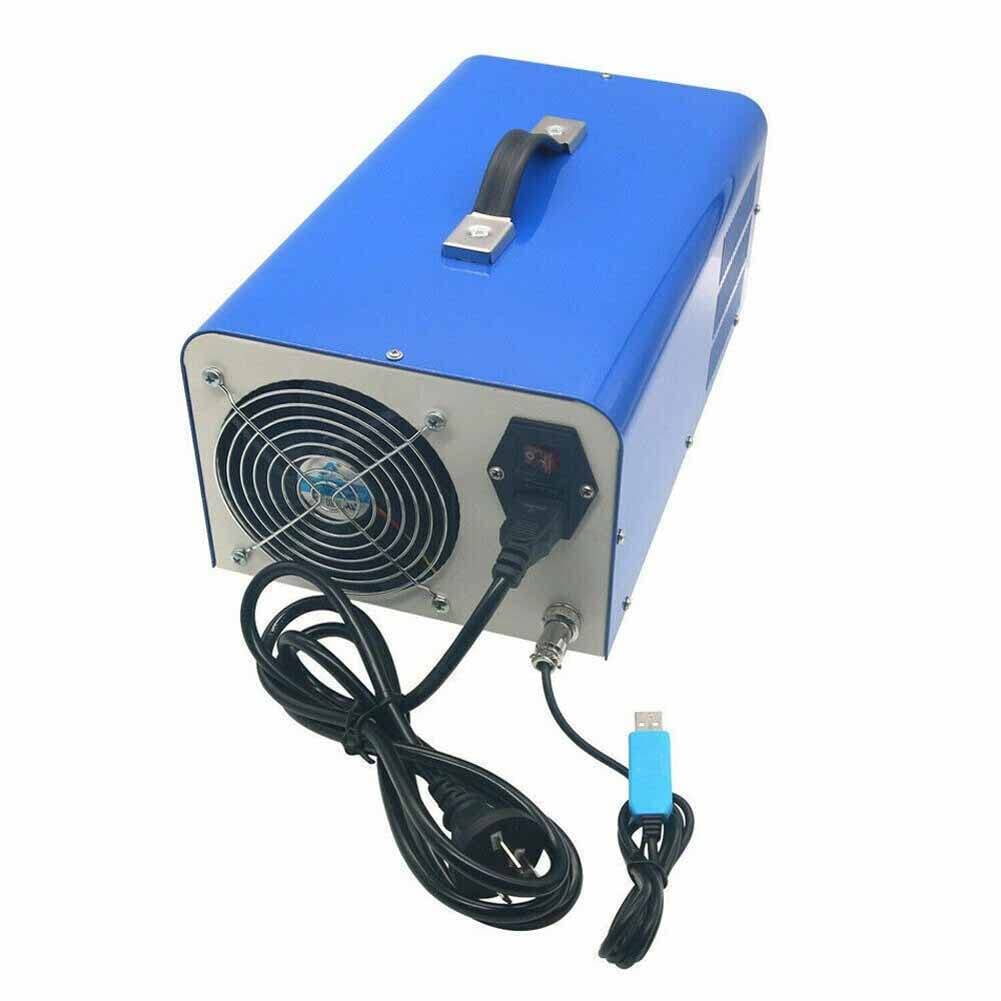

220V EBC-A40L 5V Electronic Load Battery Capacity Charge Discharge Tester 40A

Descriptions： EBC-A40L is a high-current battery charge and discharge capacity tester for 5V battery and performance testing, through the online software with more extensions. Specifications: Model: EBC-A40L Voltage range: charge 0-5V, discharge 0-5V Voltage accuracy: 0.2% ± 0.03V Current range: charge 0.1-40A, discharge 0.1-40A Current accuracy: 0.2% ± 0.01A Discharge mode: CC constant current discharge / CP Constant power Discharge termination: time / voltage is lower than the set limit / Manual Discharge power: maximum 200W Charge mode: CV constant current constant voltage charging Charge termination: constant current is less than the set limit / Manual Capacity test: <10Ah, the resolution of 0.001Ah 10Ah-100Ah, the resolution of 0.01Ah > 100Ah, the resolution 0.1Ah Cooling method: fan active cooling Equipment Supply: AC 220V Weight: about 5.4kg Package: 1 x EBC-A40L battery Tester

• The EBC-A40L tester is designed to charge and discharge batteries within 5V at a large current, the maximum current it supports is 40A in charging and 40A in discharging
• EBC-A40L is a high-current battery charge and discharge capacity tester for 5V battery and performance testing, through the online software with more extensions
• Connecting pattern: testing connector and PC connection (the EBC-A40L tester can connect with a computer through a designated USB-TTL cable)
• Setting examples: auto test setting (charge the 3.7V lithium battery at 2.5A and discharge it at 5A, waiting time is 5 minutes)
• Setting examples: discharge setting (discharge the lithium battery from 3.7V to 2.8V at 5A); charge setting (charge the lithium battery from 3.7V to 4.2V at 2.5A, cut-off current is 0.11A)
