Autopilot Flight Contoller | Autopilot Flight Control | Flight Control Unit - Flight FPV - - (Color: FC)

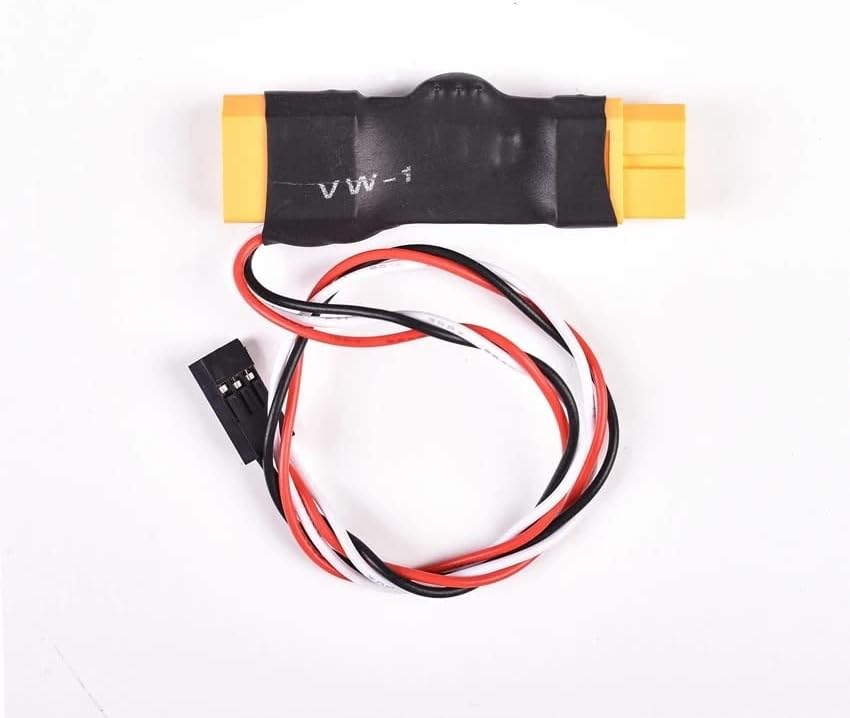

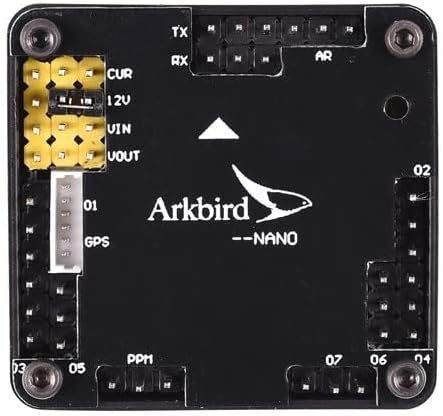

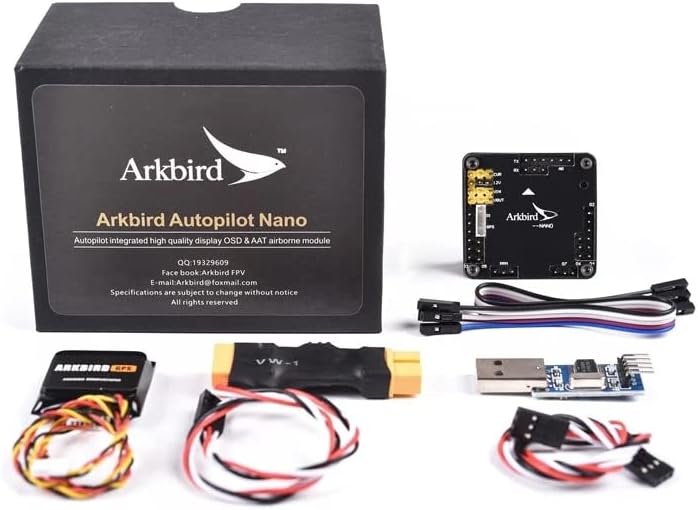

Descriptions: Limit small size! The Arkibird Nano autopilot system has come into the market. The single autopilot with single CPU, integrated pixel-level OSD and AAT airborne module, net weight is only 15.2g, matched with the small size current sensor, perfect for racing drones, small size FPV aircrafts. Features: 1.With high-precision air speed meter. air and ground speed control and protection. 2.High-definition Pix-level OSD menu with data graph display and 8 kinds of 3D animation plane models. 3.Integrated AAT airborne module, can work with Arkbird AAT ground module directly. 4.Support SBUS or PPM input, 7 channel servo output, with autostability output on the PTZ. 5.Intelligent flap control and release, can be controlled by speed and set up mix control through channel 1-7 (aileron-flaps). 6.More mixed control include delta wing and V-tail wing, and Bi-motor plane, Bi-motor flying wing and butterfly brake (mixed control of 1247channel). 7.Support Arkbird 433 10channel and RSSI single wire transmission. Functions: 1.Function all in one broad, on broad IMU (Inertial measurement unit), OSD (On Screen Display), barometer Attitude sensor, 12V-5V regulation chip, "ESC + voltage regulation" dual power supply. Industrial reliable designed. 2.Plug & Play design, no needed to weld any wire. 3.Can be installed flatwise or sidewise, suitable for small aircraft. 4. Intelligent PID controller. Easy to adjust. 5. Adjust parameters by OSD menu and radio stick. 6. Power & Video voltage, Go-home direction, radar mark, flight time, horizon, total distance, and power consumption, etc, can be displayed on Screen. 7.One button auto-leveling, stick back to center, plane can fly levelly. 8. One button RTH (return-to-home), lost radio signal return-home. More extended functions: 1.Launch Assist: Run up with air
