Unitree L2 4D LiDAR Lidar Sensor Laser Radar 360° Hemisphere Scanning, 64,000 Points/S for Robotics & 3D Mapping

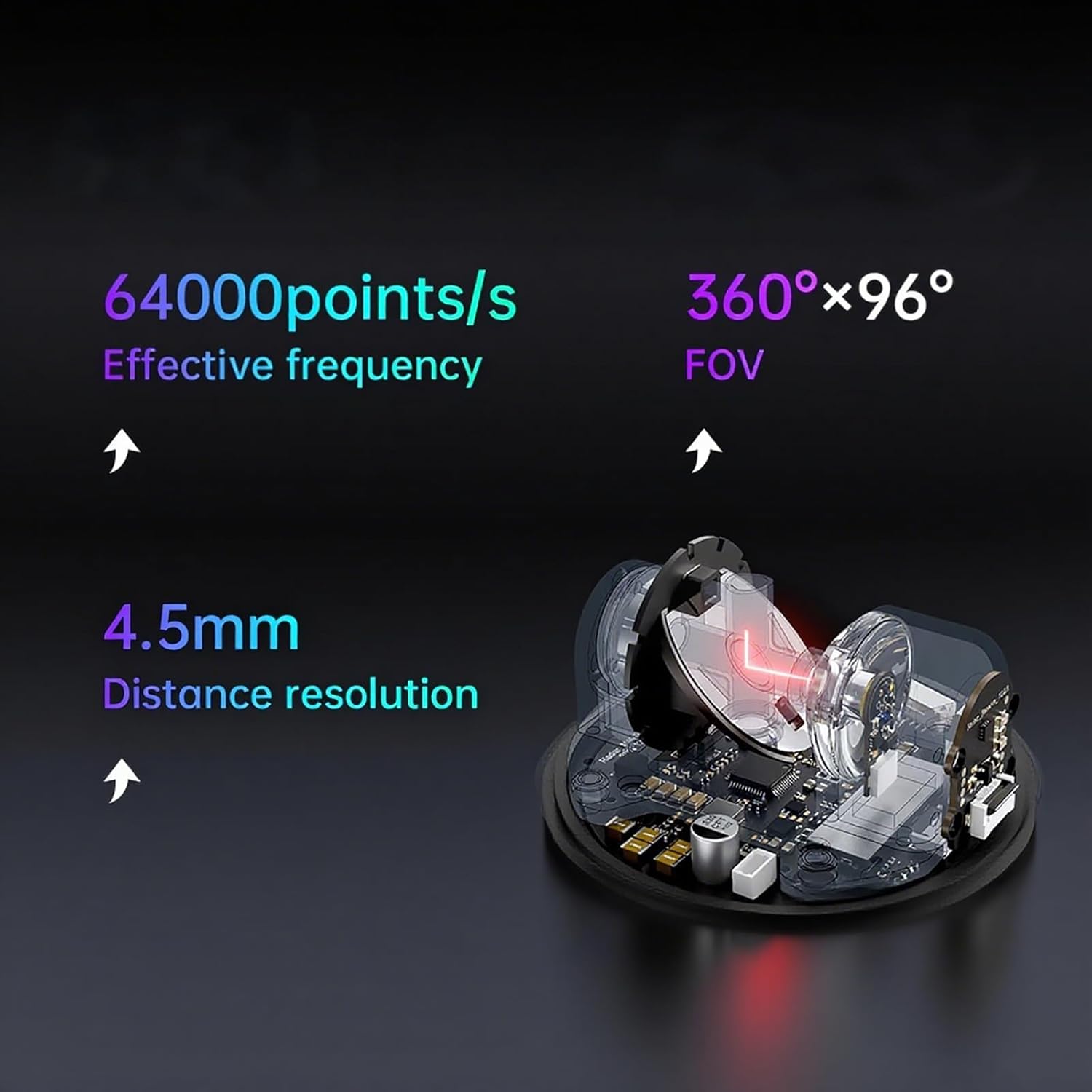

Unitree 4D LiDAR-L2: High-Performance 4D Laser Radar​​ Revolutionize robotics and 3D scanning with the Unitree 4D LiDAR-L2! This cost-effective, Class 1 eye-safe laser radar delivers 3D positioning + 1D grayscale data, enabling precise mapping, navigation, and obstacle avoidance. Weighing only 230g (75x75x65mm), its compact design integrates seamlessly into any robotic platform. ​​Industry-Leading Features​​​​ Ultra-Wide 360°×90° FOV​​: Achieve hemispherical scanning coverage, expandable to 360°×96° in negative-angle mode for complex environments. 64,000 Points/Sec Effective Sampling​​: High-speed data capture at 216Hz vertical scanning frequency, paired with built-in IMU (3-axis accelerometer/gyroscope @500Hz) for real-time motion tracking. ​​Robust & Reliable​​: IP54-rated protection, operational from -10°C to 50°C. Class 1 laser safety (IEC 60825) ensures human/pet safety. Plug-and-Play Setup​​: Dual interfaces (UDP over Ethernet / TTL UART), default 3D mode, self-start function, and included power adapter/converter module. Technical Specifications​​ Range & Accuracy​​: 30m max range (90% reflectivity), 0.05m near-field blind zone, ±2cm accuracy (@15m), 0.64° angular resolution. ​​Efficiency​​: 12V DC input, 10W typical power (13W peak in cold starts), storage temp: -20°C~60°C. Scan Performance​​: 128,000 pts/sec sampling, 64,000 pts/sec effective output, 2D mode support (180°/192° FOV). ​​Mechanical​​: 230g lightweight, 4x M3 mounting holes for secure installation. ​​Applications​​ Ideal for: ​​Robotics​​: SLAM, autonomous navigation, and dynamic obstacle avoidance. ​​Industrial Scanning​​: 3D reconstruction, infrastructure inspection, and topographic mapping. ​​Smart Devices​​: AGVs, and AI systems leveraging real-time point cloud + IMU data.

• Ultra-High-Speed 4D Scanning​​: 64,000 effective points/sec (3D position + 1D intensity), ideal for mapping, obstacle avoidance, and environmental reconstruction.
• Full Coverage FOV​​: 360° horizontal + 90° vertical (expandable to 96° in negative-angle mode) for hemispherical spatial detection.
• Precision Performance​​: 30m max range (90% reflectivity), ≤2cm accuracy, operates in -10°C~50°C harsh environments.
• Plug-and-Play​​: Dual interfaces (ENET UDP/TTL UART), auto-start at power-on
• Compact & Robust​​: Only 230g, IP54-rated, M3 mounting holes for robots/AGVs/smart devices.
