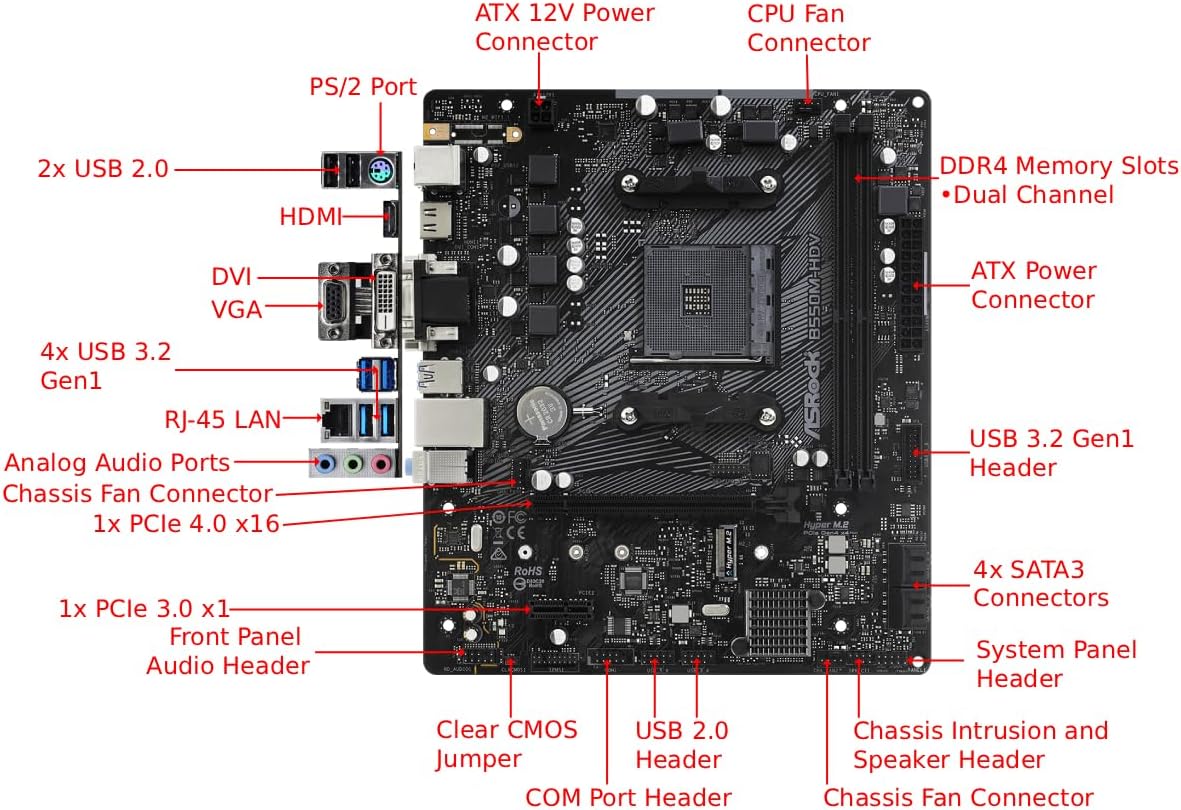

ASRock B550M-HDV Socket AM4 Micro-ATX Motherboard, Supports AMD Ryzen 5000/4000/3000 Series Processors, DDR4 4733+(OC), PCIe 4.0, Gigabit LAN
Product details
| Management number | 212257524 | Release Date | 2026/04/06 | List Price | $24.31 | Model Number | 212257524 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
- Comprehensive AMD AM4 Platform: Supports a wide range of AMD Socket AM4 processors, including Ryzen 5000, 4000, and 3000 Series CPUs and APUs for flexible, budget-friendly builds. Please check ASRock's CPU support list for detailed compatibility.
- Legacy Display Support: Offers maximum monitor compatibility with three video outputs: HDMI (4K 60Hz), DVI-D, and D-Sub (VGA), perfect for office or home systems.
- High-Speed Memory Support: Two DDR4 DIMM slots support dual-channel configurations and overclocked speeds up to 4733+ (OC) for responsive performance.
- PCIe 4.0 Ready: The primary PCIe x16 slot supports PCIe 4.0 speeds (with compatible 3rd Gen Ryzen CPUs and above) for modern graphics cards.
- Versatile Storage Options: Features one Hyper M.2 slot (PCIe Gen4x4 and SATA3) for a fast NVMe or SATA SSD, plus four SATA3 ports for additional drives.
- Reliable Daily Connectivity: Equipped with 6x USB 3.2 Gen1 ports, Gigabit LAN, and 7.1 channel HD Audio (Realtek ALC887/897) for all essential needs.
- Stable Power Delivery: A 6 Power Phase design with premium 50A power chokes provides stable power for supported processors.
- Built-in Protection: ASRock Full Spike Protection on USB, Audio, and LAN ports guards against electrical surges.

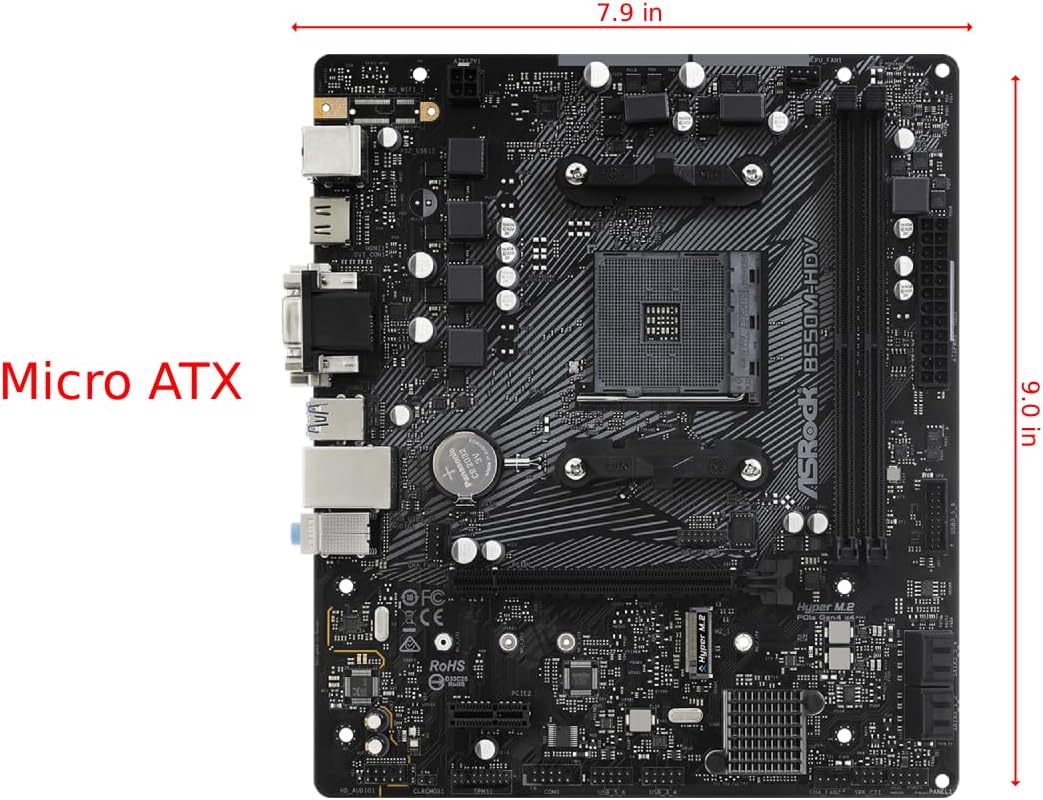

- System Compatibility Note: This micro-ATX form factor may not be compatible with all cases; please verify chassis specifications before purchase.
- Dedicated Support: Please contact us directly through Amazon for any product questions or assistance you may require.
| Brand | ASRock |
|---|---|
| USB 20 | 2 |
| Platform | Windows 10 |
| CPU Model | Ryzen 3 |
| Model Name | B550M-HDV |
| Unit Count | 1.0 Count |
| Item Weight | 1.5 Pounds |
| Chipset Type | AMD B550 |
| Manufacturer | ASRock |
| Model Number | B550M-HDV |
| BuiltIn Media | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
| Number of Ports | 12 |
| Total Usb Ports | 12 |
| Processor Socket | Socket AM4 |
| Total PCIe Ports | 2 |
| Total SATA Ports | 4 |
| Compatible Devices | Personal Computer |
| Memory Clock Speed | 2400 MHz |
| SPDIF Connector Type | Optical |
| Warranty Description | 3 years |
| Compatible Processors | AMD Ryzen 5000/4000/3000 Series |
| RAM Memory Technology | DDR4 |
| Memory Slots Available | 2 |
| Graphics Card Interface | PCI Express |
| Memory Storage Capacity | 64 GB |
| Ram Memory Maximum Size | 64 GB |
| Number of Ethernet Ports | 1 |
| Item Dimensions L x W x H | 9.5"L x 2.5"W x 11"H |
| Main Power Connector Type | 24-Pin |
| Total Number of HDMI Ports | 1 |
| System Bus Standard Supported | SATA 3 |
| Global Trade Identification Number | 04710483931635 |
