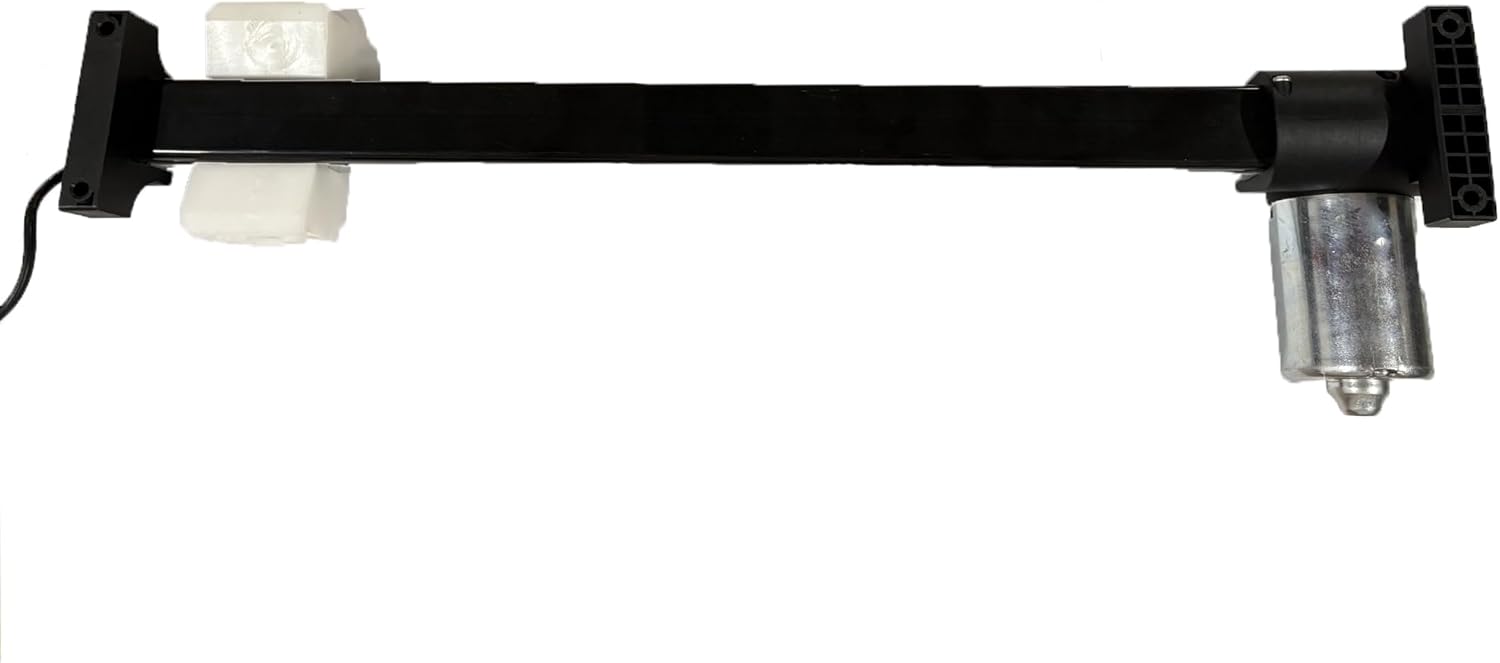

Fromann Okin JLDQ-18 Modle JLDQ.18.134.329Z02 Power Recliner Lift Chairs Motor Actuator Replacement
Product details
| Management number | 212100746 | Release Date | 2026/04/06 | List Price | $33.20 | Model Number | 212100746 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Technical data:Motor: Low-voltage DC motor（24V or 29V）Operation frequency: On 1 min/Off 8 minStroke: 329mmMinimum install dimension(shrink):134mmMaximum install dimension(stretch):463mmPush force:750N, Pull force:750NSpeed: 51mm/sec max
- The new model JLDQ.18.134.329Z02 is a suitable replacement for the JLDQ.18.134.329, offering enhanced performance
- Before purchasing, ensure compatibility by verifying the label and troubleshooting any issues with the switch, remote, or power supply
- This motor replacement features a DC motor with compact mounting dimensions, making installation easy and efficient
- With a stroke length of 12.95 inch/329 mm and operating through a slide block mechanism, the minimum installation dimension of 5.28 inch/134 mm
- Providing a push force of 750N, pull force of 750N, and a maximum speed of 51mm/sec, this motor is ideal for electric sofas, massage chairs, and similar applications
| Size | 20.8 inches (L) x 5.7 inches (W) x 3.1 inches (H) |
|---|---|
| Color | Black |
| Shape | L-Shape |
| Arm Style | Armless |
| Leg Style | wheels |
| Brand Name | Fromann |
| Item Depth | 20.8 inches |
| Model Name | JLDQ.18.134.329Z02 |
| Seat Depth | 4.3 inches |
| Style Name | Contemporary |
| Unit Count | 1.0 Count |
| Item Weight | 3.8 Pounds |
| Manufacturer | Fromann |
| Model Number | JLDQ.18.134.329Z02 |
| Material Type | Metal |
| Seat Material | Metal |
| Item Dimensions | 20.8 x 5.7 x 3.1 inches |
| Required Assembly | Yes |
| Frame Material Type | Metal |
| Included Components | motor |
| Indoor Outdoor Usage | Indoor |
| Age Range Description | Adult |
| Reclining Position Count | 2 |
| Item Dimensions D x W x H | 20.8"D x 5.7"W x 3.1"H |
