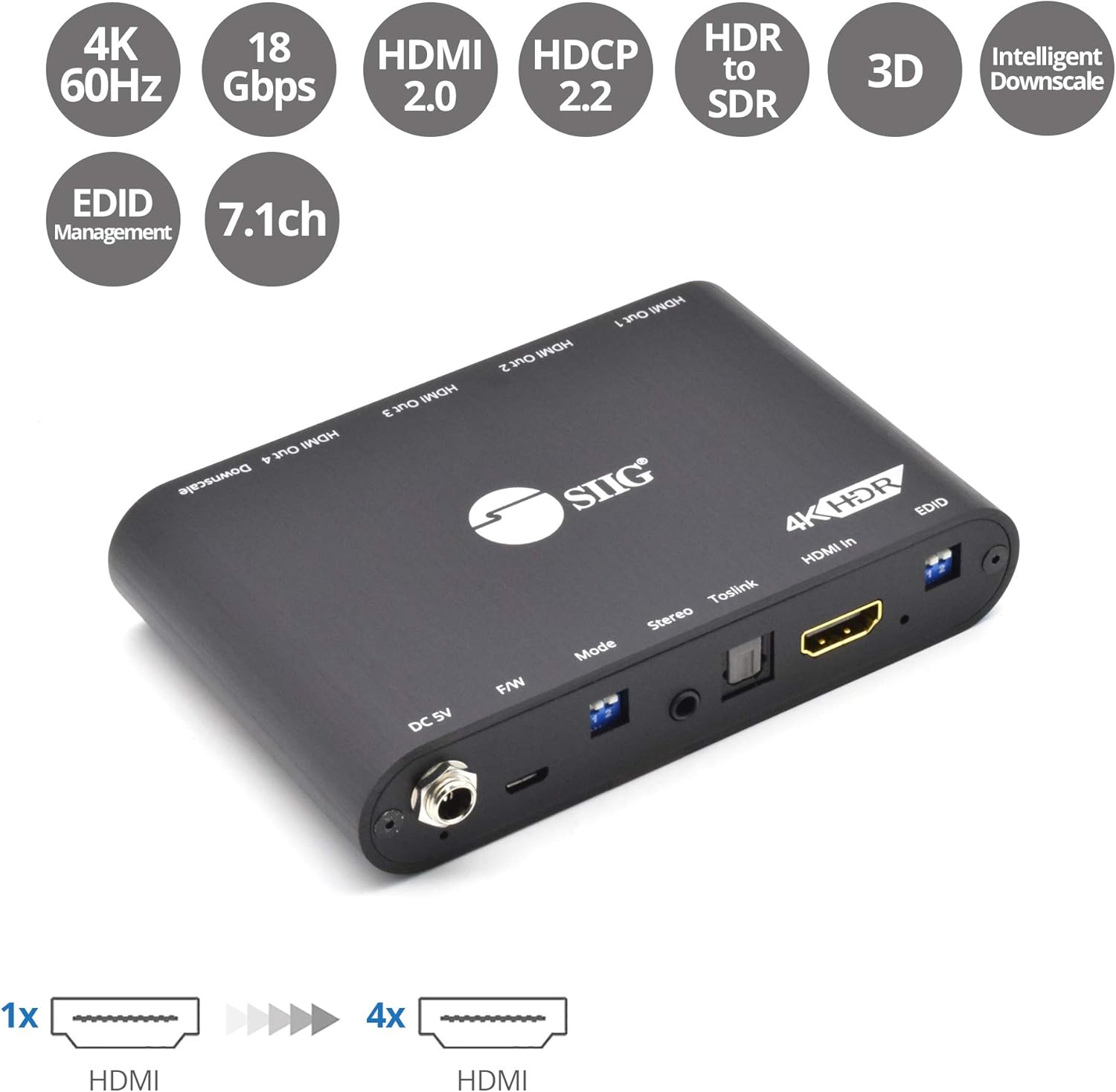

SIIG 1x4 HDMI Splitter with EDID, Audio Extractor to Toslink, HDR to SDR Conversion,Video Downscaling,4K60 HDR,HDCP Bypass,Digital/PCM 7.1 Audio, TAA Compliant CE-H26911-S1

Specifications:Chipset: IT6664ECompliant with HDMI 2.0, HDCP Bypass 2.2 specificationsResolution: up to 4K@60Hz YUV 4:4:4 8bits, HDR 4K@60Hz YUV 4:2:0 10bitsVideo bandwidth: 18Gbps (single-link 600MHz)Video support: 480p/720p/1080i/1080p/HDR 4K@60Hz (YUV 4:2:0 10bits)/4K@60Hz (YUV 4:4:4 8bits)Resolution up to 4K (3840 x 2160) @60HzSupports default EDID and EDID learning from HDMI displayBuilt-in Micro-USB port for firmware update for expanding compatibilityAudio: DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCMHDMI cable length:4K @60Hz: Up to 10 meters (5m/In ; 5m/Out)1080p & 4K@30Hz: Up to 15 meters (5m/In ; 10m/Out)LED indicators for power and signal statusESD protection: ±15kV Air / ±8kV ContactProduct:Dimensions: 4.72" (L) x 0.94" (H) x 3.07" (W)Weight: 0.47lbsColor: BlackHousing material: Aluminum Connectors:1x 19-Pin, HDMI, Type A, Female, Input4x 19-Pin, HDMI, Type A, Female, Output1x S/PDIF Toslink, Female, Output1x 3.5mm Stereo Audio Jack, Output1x 4-pin DIP switch, Downscale control1x 2-pin DIP switch, F/W and Service control1x 2-pin DIP switch, EDID mode1x 5-pin Micro USB, Female, F/W update1x Power jackPower adapter:Input: 100-240VAC, 50/60 HzOutput: DC 5V/2AUL Listed: E253376 /Level: VIEnvironmental conditions:Operating temperature: 32 to 104 degrees FStorage temperature: -4 to 140 degrees FRelative humidity: 20 to 90% RH (non-condensing)Certifications/Standards: FCC, CE, RoHSTAA compliantCountry of origin: TaiwanPackage contents:1x4 HDMI 2.0a Splitter with Built-in & User Adjustable EDID Management, Audio Extractor and HDR to SDR ConversionPower AdapterQuick start guide

• Distributes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality Compliant with HDMI 2.0a, HDCP Bypass 2.2/1.4 with 18Gbps bandwidth
• Compatible with 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color & 7.1 CH surround sound audio HDMI output 4 supports HDR to SDR conversion for use with non-HDR monitors
• Auto Video Scaling Feature detects and configures the video resolution automatically according to the capabilities of each connected monitors. Note: 4K@30Hz monitors will display in 1080p@60Hz when the source content is 4K@60Hz
• Extracts audio from an incoming digital HDMI signal and converts it to an Optical S/PDIF Toslink and a stereo analog audio output. Capable of splitting audio to both outputs simultaneously
• High quality materials with metal housing extend the stability and durability, allowing for long hours of operation. Built-in EDID management and firmware update mechanism further expand the compatibility
• At SIIG, we are proud of our products and service. Our products are of high quality and built to last. We are here to assist should you need us. We provide Manufacturer Warranty for our products and email support. Contact us thru Amazon if any issues arise.
