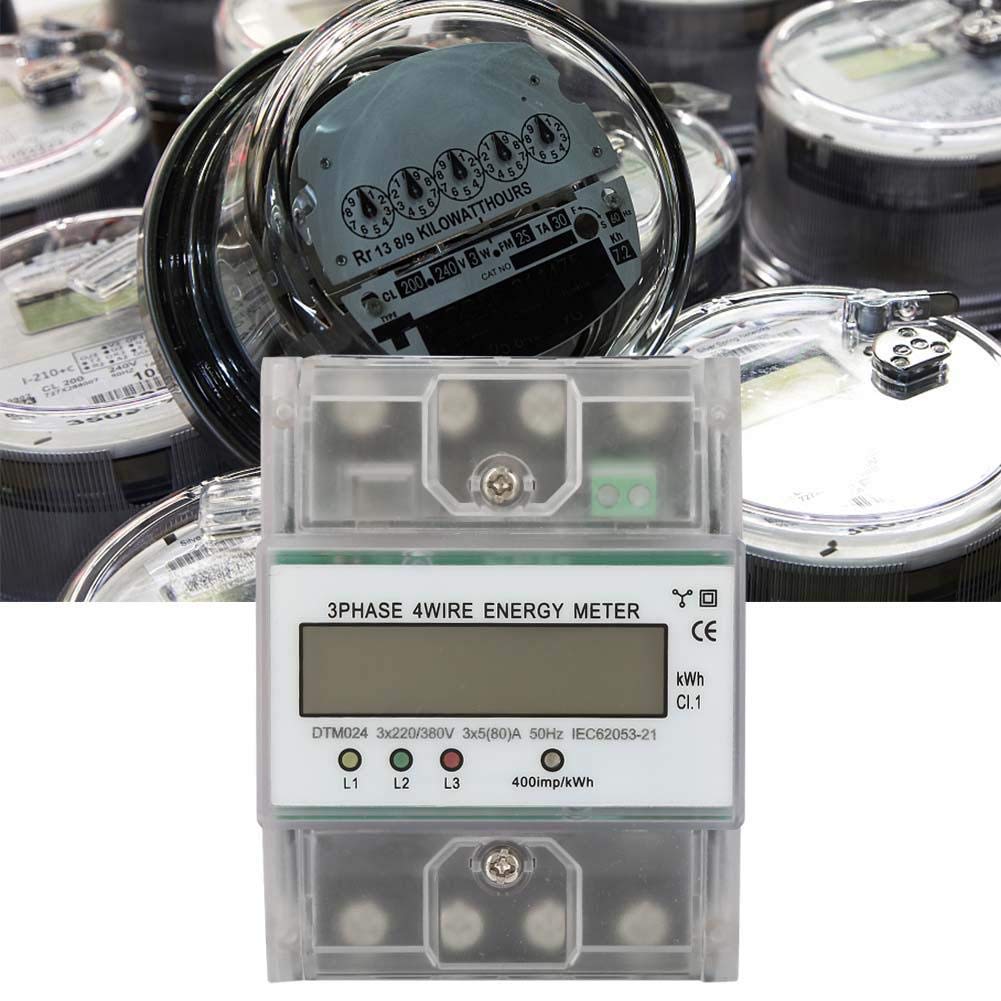

3 Phase 4P KWh Meter 220/380V 5-80A Digital Electric Power Consumption Monitor LCD Backlight

Feature: This product adopts transparent shell, which is convenient to observe the status of electronic components inside the meter. LCD backlight display is used to read data clearly. The power consumption of the product is very low. The theoretical power consumption is less than or equal to 2 W. The product has and can run steadily in the range of -20-55 degrees Celsius. Products are widely used in power metering systems. Specification: Model: DTM024 Voltage: 3x220/380V Current: 3x5 (80) A Accuracy level: 1.0 Standard: IEC62052-11 IEC62053-21 Frequency: 50 Hz Pulse constant: 400imp/kWh Display: LCD 6+2 Power consumption: ≤ 2W, 10VA Starting current: 0.004lb Working temperature -20~55°C Storage temperature: -25~70°C Working voltage: 0.9-1.1 rated voltage Maximum voltage: 0.8-1.15 rated voltage Annual average humidity value: ≤75% Creep: less than 1 pulse when the rated voltage is 115% or no current Weight: 398g / 14.0oz Package list: 1 * Electric Power Meter(without battery) Note: The actual product color may deviate from the photo due to light. There may be a slight deviation in the measurement of product.

• TRANSPARENT SHELL: This kwh meter adopts transparent shell, which is convenient to observe the status of electronic components inside the meter.
• LOW CONSUMPTION: The power consumption of the power meter is very low. The theoretical power consumption is less than or equal to 2 W.
• LCD DISPLAY: LCD backlight display of kilowatt hour kwh meter can be used to read data clearly. Frequency: 50 Hz. Pulse constant: 400imp/kWh.
• FOUNCTION: Power consumption wattmeter energy meter has a wide range use, widely used in power metering systems.
• The energy meter has and can run steadily in the range of -20-55 degrees Celsius. Working temperature -20~55°C.
