1310nm/35dB+1550nm/33dB SM Fiber OTDR Tester Build in OPM+OLS+VFL+Event Map+APP Module+7inch Touch Screen Compatible with SC+FC+ST+LC/UPC&APC Connector-SS315T-2B1
Product details
| Management number | 211701432 | Release Date | 2026/04/04 | List Price | $359.60 | Model Number | 211701432 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 🏅1310nm+1550nm and 35dB+33dB: SS315T-2B1 series OTDR provides 1310nm+1550nm wavelengths and 35dB+33dB dynamic range, with a maximum test distance up to 160km/100mi, and adopts high-quality light sources, advanced optical algorithms, multiple test modes, precise identification of fiber links, adjustable parameters for pass/fail analysis, and event display.
- 🏅OTDR+OPM+OLS+VFL: SKYSHL SS315T-2B1 combines all essential fiber tests in one handheld with Optical Time Domain Reflectometer(OTDR-1310nm+1550nm/35dB+33dB),visual fault locator (650nm,10km), optical power meter (OPM-850nm~1650nm/-60~+3dB), and Optical Light Source(OLS-1310nm+1550nm).
- 🏅Extremely Short EDZ/ADZ: The SKYSHL SS315T series OTDR leverages the most sophisticated optical technology to provide the shortest event dead zone (1.2m typical for SM) and attenuation dead zone (4.5m typical for SM),This technological advancement allows SS315T OTDR to detect and measure closely spaced faults.
- 🏅Intelligent and Sturdy: The SS315T features automatic testing, scheduled testing, and event mapping, allowing even untrained technicians to become test experts in a short period of time. Smart APP and Windows software support OTDR connectivity to Android phones/tablets (Android only) and PCs to view, share, analyze and save test data in real time. In addition, the SS315T supports English, French, German, Spanish, Italian and Portuguese.

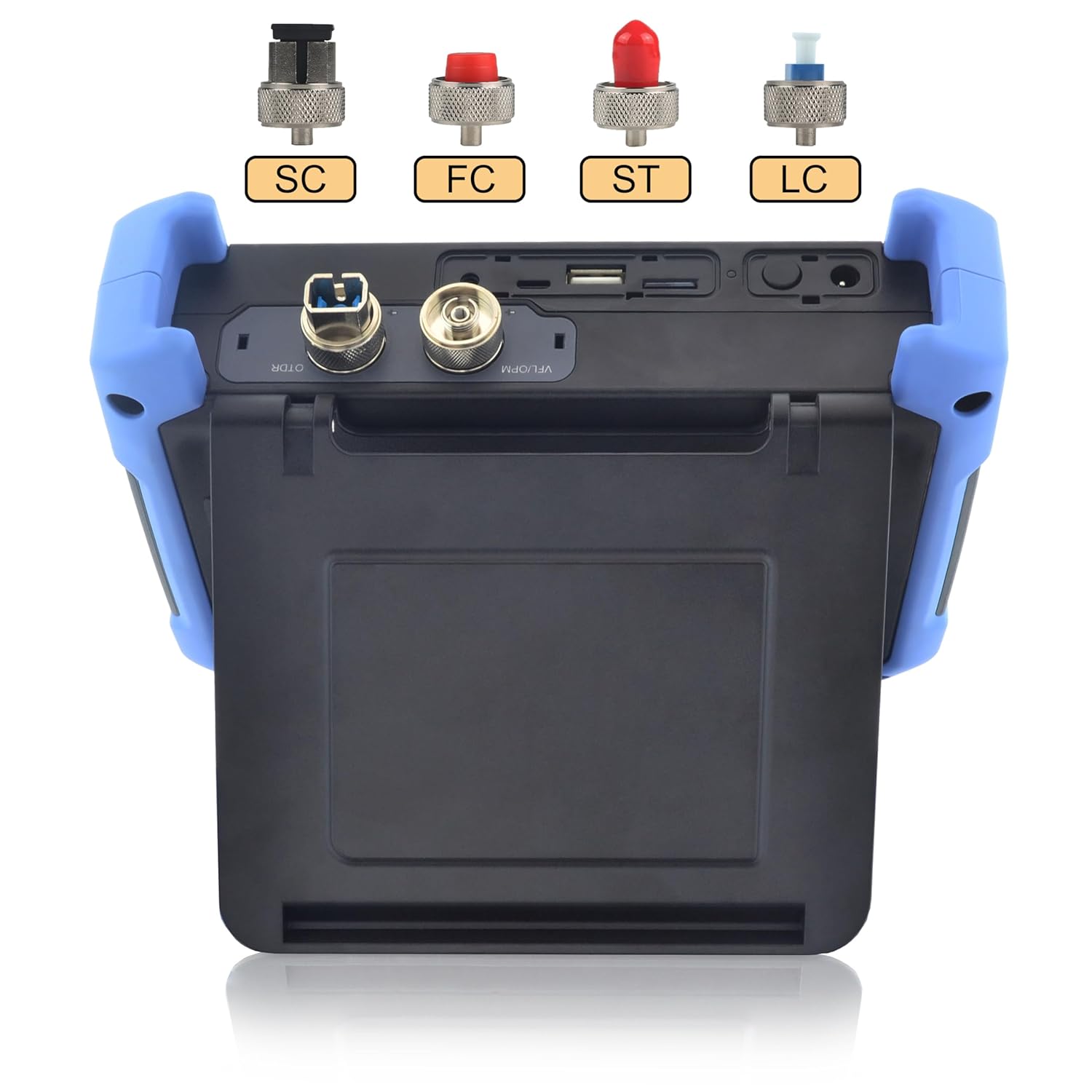

- 🏅Compatible with SC+FC+ST+LC/UPC&APC: SS315T-2B1 provides 2 fiber optic patch cords (1*SM FC/UPC-FC/UPC+1*SM FC/UPC-FC/APC) and FC-SC, FC-ST, FC-FC, FC-LC connectors. Compatible with SC/UPC, ST/UPC, FC/UPC, LC/UPC, SC/UPC and SC/APC, ST/APC, FC/APC, LC/APC.
- 🏅Feature-Rich and Quality Assurance: The SS315T-2B1 allows data communication with a PC via USB. Meanwhile, test traces can be saved to SD card and USB flash disk.SS315T-2B1 supports EI&SOR format, and one-click screenshot, one-click PDF generation and other functions. The professional team provides professional technical support 24 hours a day, 3-year after-sales guarantee and lifetime maintenance.
| Color | blue |
|---|---|
| Model | SS315T-2B1 |
| Brand Name | SKYSHL |
| Style Name | SS315T-2B1(1310/1550nm 35/33dB) |
| Item Weight | 2.38 Kilograms |
| Manufacturer | SKYSHL |
| Power Source | Battery Powered |
| Item Dimensions | 7.48 x 1.97 x 5.71 inches |
| Measurement Type | Fiber Testing |
| Specification Met | 1310&1550nm 35&33db | 4.5m-160km |
| Included Components | 1*OTDR+5*Adapter For OTDR/OLS/OPM/VFL+1*APP Module+1*OTDR Holder. |
| Warranty Description | 3 years free replacement / 5 years free maintenance / lifetime warranty |
| Maximum Operating Voltage | 13.5 Volts (DC) |
| Minimum Operating Voltage | 9 Volts (DC) |
