Hantek Digital Storage Oscilloscope USB 150MHz Bandwidth, 2 Channels, 1GSa/s Sampling Rate, with 1 CH Waveform Generator(DSO2D15)

Hantek Digital Storage Oscilloscope USB 150MHz Bandwidth, 2 Channels, 1GSa/s Sampling Rate, with 1 CH Waveform Generator(DSO2D15) Features: 1. 2 channels which are respectively controlled by independent knobs 2. 150MHZ analog channel bandwidth 3. Sampling rate up to 1 GSa/s 4. 8M memory depth 5. Vertical range 2mV/div ~ 10V/div 6. Built-in 1 CH 25MHz waveform generator 7. Vertical resolution: 8bit 8. Trigger: Edge, Pulse,Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC 9. BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN 10. Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures 11. A 3-digit digital voltage meter and a 6-digit hardware frequency indicator 12. 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc. 13. 2 sets of digital voltmeters 14. Support threshold testing, free measurements within the screen 15. Abundant SCPI remote command control 16. USB Host/Device Specification: Bandwidth: 150MHz Channels: 2 Sample rate: 1GSa/s (single channel) 500MSa/s (two channels) -----Arbitrary waveform generator----- Channel: 1 Sample rate: 200MSa/s Vertical resolution: 12 bits Maximum frequency: 25 MHz Standard waveforms: sine, square, ramp,Exp, noise, DC Arbitrary waveform: Arb1, Arb2, Arb3, Arb4 -----General specifications----- Display type: 7'' diagonal TFT liquid crystal Display resolution: 800 (horizontal)*480 (vertical) pixels Display colour: 16 million colours (24 bits true colour) Standard interface: USB Host，USB Device Power supply: 100-120VACRMS(±10%), 45Hzto 440Hz, CATⅡ 120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ Operating temperature: 0~50 °C (32~122 °F) Storage temperature: -40~+71 °C (-40~159.8 °F) Package Including: 1 x Oscilloscope 1 x USB Cable 2 x 150MHz Probe(PP-150B) 2 x BNC to Alligator Clip Cable 1 x US Standard Power Cable 1 x Car Voltage Tester 1 x Multimeter Test Leads Kit 1 x 40 Pin Male to Female Jumper Wire（10cm

• 【Cost-effective Economy Oscilloscope】Dual channels,150MHz bandwidth, 1GSa/s sampling rate, 8M memory depth, can upgrade the system through the USB port. Support plug-and-play USB storage devices and communicate with the computer and remote control through USB.
• 【Signal Generator】With built-in 1 CH 25MHz waveform generator, support arbitrary waveform output. Users can edit the arbitrary waveform or choose the regular waveform such as Sine, Ramp, Square, Exponent, Noise, DC and Arb waveform.
• 【Easy to Observe】 Equipped with 7 inch color TFT LCD disply screen, with a resolution of 800 * 480 pixels, it can clearly show the measured waveform.
• Support 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.; 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes.

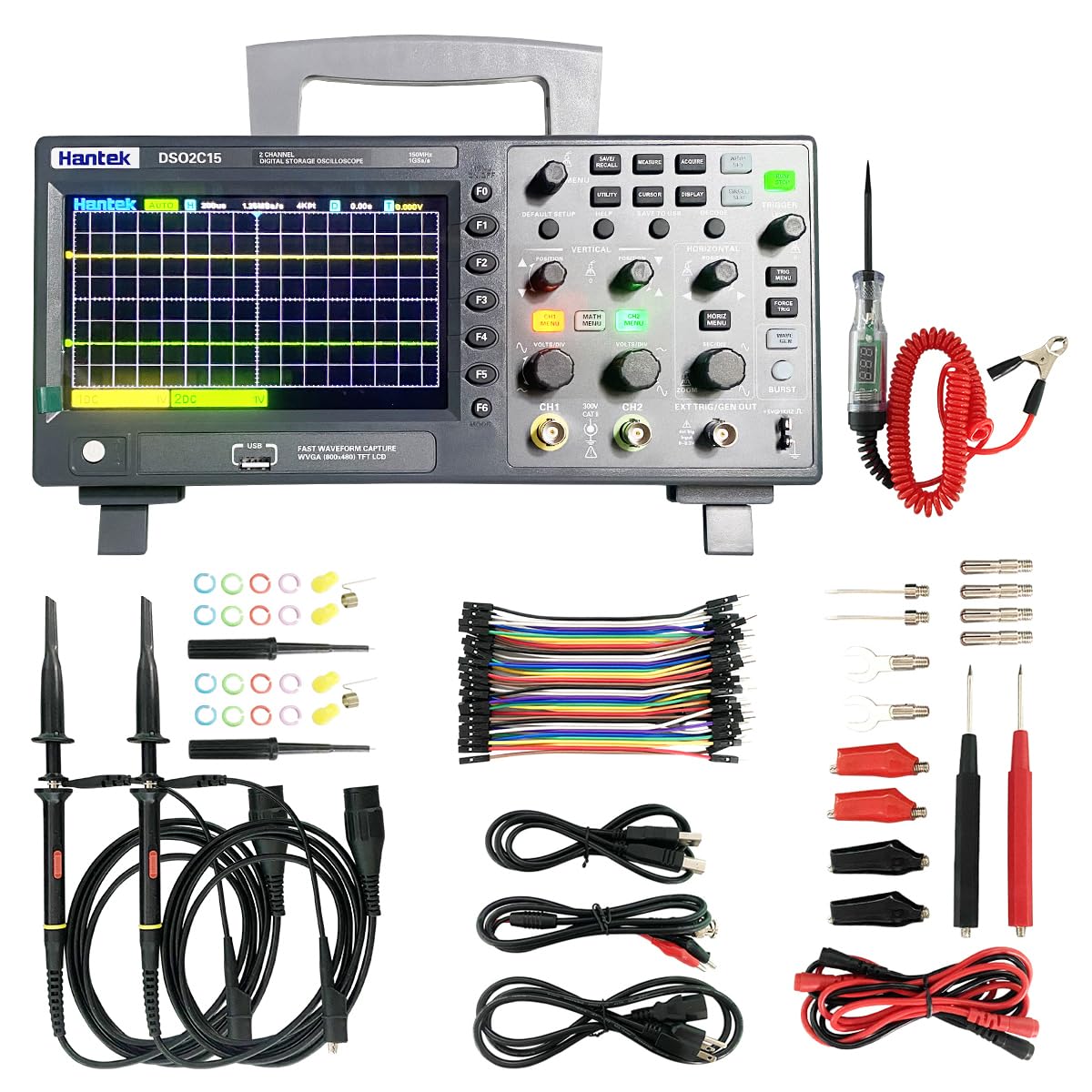

• 【What You Will Get】1 x Oscilloscope, 2 x Oscilloscope Probe, 1 x USB Cable, 1 x Power Cable, 2 x BNC to Alligator Clip Cable, 1 x Car Voltage Tester, 1 x Multimeter Test Leads Kit, 1 x 40 Pin Male to Female Jumper Wire（10cm）
