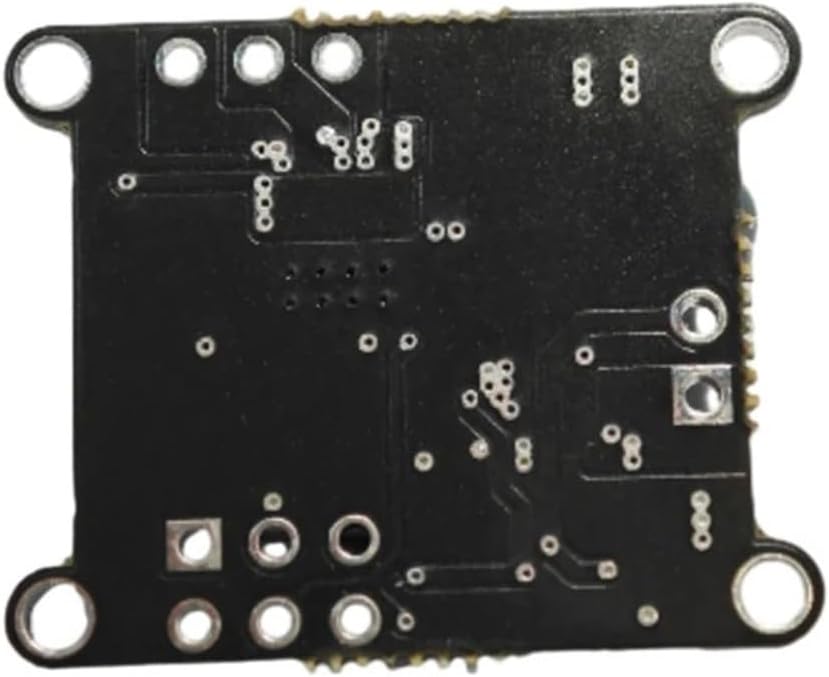

DengFOC-Mini 8-35V BLDC Motor Drive Board FOC 2.5A DRV83131 Chip Motor Drive FOC Controller PWM Output Pin with Indicator Light

MotorsDengFOC-Mini 8-35V BLDC Motor Drive Board FOC 2.5A DRV83131 Chip Motor Drive FOC Controller PWM Output Pin with Indicator LightDengfo-mini is a low-power and low-cost single-channel BLDC motor driver board in a small package (only 26mm X 21mm). The input voltage of DENGFO-MINI ranges from 8 to 35V and the maximum continuous current (per phase) is 2.5A. Only need to access the motor control signal to achieve motor rotation, suitable for most PTZ motors. This board is a deep improvement over SimpleFOC's SimpleFOC Mini driver! We added power input anti-inverting to make learning to use FOC safer; Added enable and error status indicators; The unused pins are removed.Users can use their own suitable master control (ESP32,STM32, UNO, etc.), connect the pin to the "IN" of DENGFO-MINI, and connect the position sensor to realize the open and closed-loop control of the position, speed and of the BLDC motor. DengFOC-Mini is compatible with DengFOC and SimpleFOC libraries. Dengfo-mini is a cost-effective choice for FOC beginners learning motor control.The DENGFO-Mini uses the DRV8313 as the driver chip and provides a FAULT error reporting pin, an EN enable pin, and three PWM input pins. When there is undervoltage, overtemperature, and high voltage, the FAULT light will be lit and the output of the motor end will be cut off.Specification:Operating voltage: 8V~35VMaximum continuous current: 2.5APower reverse protection: YesSpecifications of all terminals: 2.54mm spacingProduct size: 26mmx21mm (L x W) (highest 7.4mm)Net weight: 2.7gNote:1.Due to the light and screen difference, the item's color may be slightly different from the pictures.2.Please allow 1-3cm differences due to manual measurement.Package Includes:1x Motor Drive Board==========Motor Type : Motor
