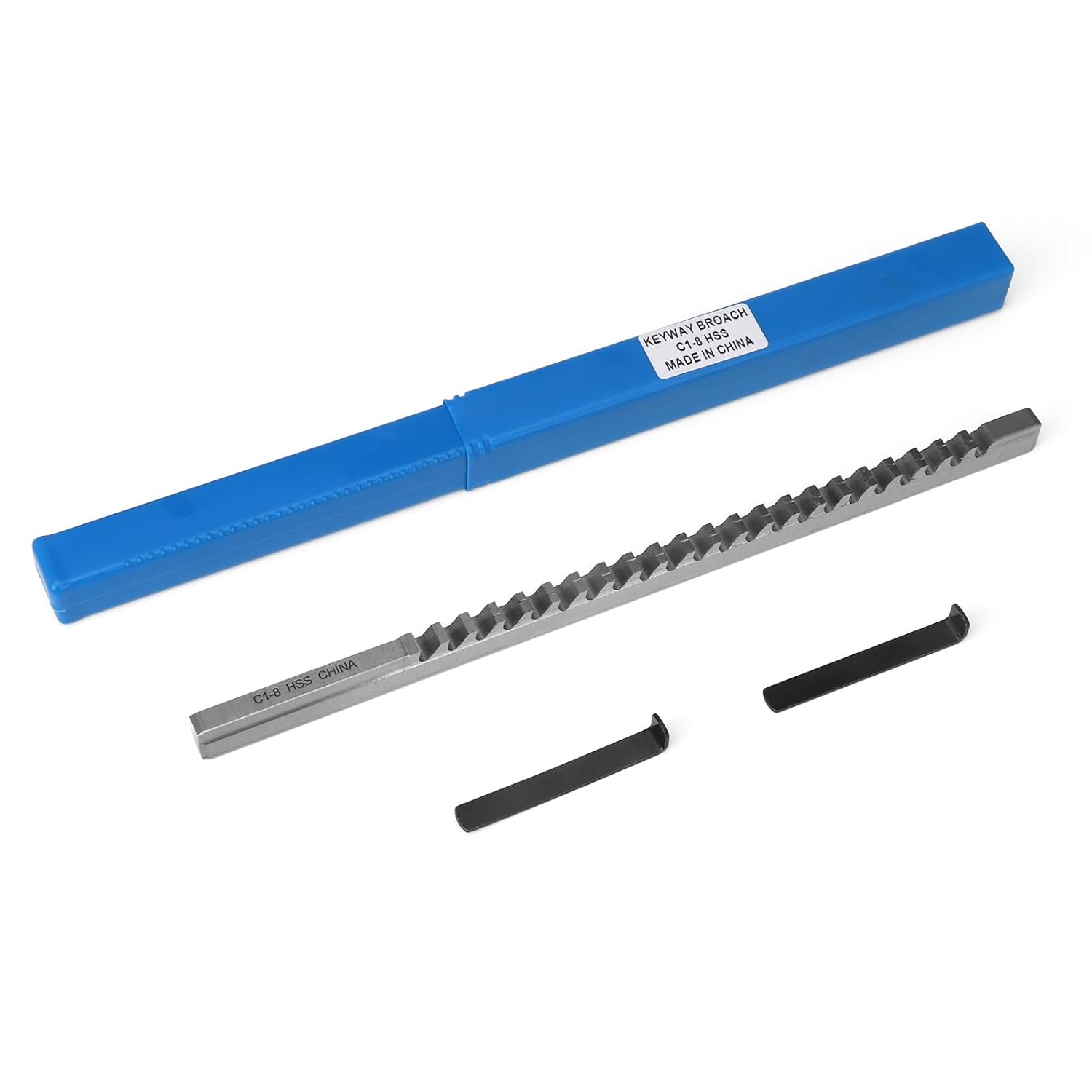

Keyway Broach Set HSS Keyway Cutting Tool for Lathe Metric Size Broaches with Bushings and Shims (22 pcs)

Keyway Broach 22pcs Metric Size Set B Type 4mm 5mm + C Type 6mm 8mm & 13pcs Bushing Sleeve + 5pcs Shim Feature: - Widely applied to machine manufacturing and parts production etc. - Suitable for bordering and groove processing in the project. - With convenient wooden box, easy to carry and store. - High strength, excellent wear resistance and long cutting life Specification: Material: HSS Steel Type: Metric Size Broach 4broaches & 13 Bushing Sleeve & 5shims= 22combinations 4 broaches B1-4，B1-5，C1-6,C1-8 13 catheter: 12B,14B,15B,16B,18C,19C,20C,22C,24C,25C,26C,28C,30C 5 shims: Weight: 3.7kg Brooches: B1-4: height: 10.8 mm; Leading height:9.66 mm; Broach Dimensions*(mm):6.45X171.5; key groove width (mm): b=4.01 mm; Length of Cut * min.-max.19/64 - 1 11/16 B1-5: height: 10.8 mm; Leading height:9.66 mm; Broach Dimensions*(mm):6.45X171.5; key groove width (mm): b =5.01 mm; Length of Cut * min.-max.19/64 - 1 11/16 C1-6: height: 16.64 mm; Leading height:15.02 mm; Broach Dimensions*(mm):9.64X298.5; key groove width (mm): b=6.01 mm; Length of Cut * min.-max.25/64 - 2 1/2 C1-8: height: 15.95mm; Leading height:14.62 mm; Broach Dimensions*(mm):9.64X298.5; key groove width (mm): b =8.01 mm; Length of Cut * min.-max.25/64 - 2 1/2 Product Includes: 4pcs * Broaches 13pcs * Bushing Sleeve 5pcs * Shims 1 * Wood case

• 【Keyway broach set】4mm B1, 5mm B1, 6mm C, 8mm C keyway broach and B1-12,14,15,16,C-18,19,20,22,24,25,26,28,30 Collared bushings, 5 pieces shims
• 【Durable】Premium High Speed Steel material with high wear resistance and high heat resistance
• 【Feature】Sharp cut and precise
• 【Easy to carry】Wooden box is include
• 【Wide application】This cutting tool is suitable for bordering and groove processing
