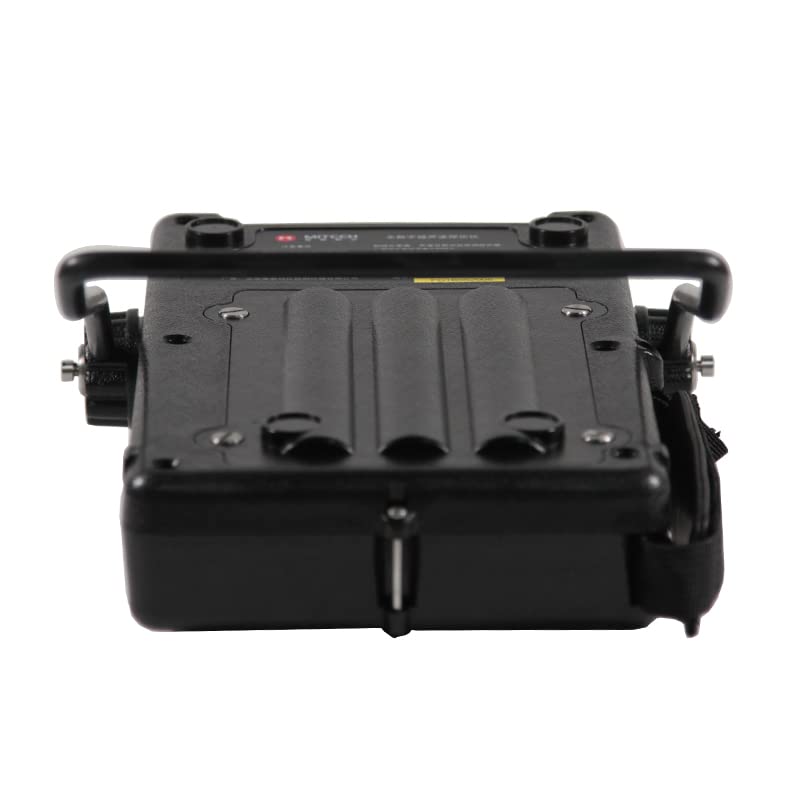

MFD620C Ultrasonic Flaw Detector Portable Digital Ultrasonic Flaw Detector NDT Meter

Technical Parameters*Range:0 to 6000 mm, at steel velocity*Material Velocity: 1000 to 15000m/s* Display Delay: -20 to 3400 µs*Probe Delay/Zero Offset : 0 to 99.99µs*Sensitivity Leavings: >60dB (flat-bottomed deep hole 200mmФ2)*Resolution : >40dB (5P14)*Noise Level: ≤ 8%*Test Modes: Pulse echo, dual element and thru-transmission*Pulser: Tunable Square Wave Pulser*Pulse Repetition Frequency ranges from 10 Hz to 1000 Hz*Pulse Energy: 200V, 300V, 400V, 500V, 600V selectable*Bandwidth (amplifier bandpass ): 0.2to 20MHz*Gate Monitors: Two independent gates controllable over entire sweep range*Rectification: Positive half wave, negative half wave, full wave, RF*System LinearDeviation:Horizontal: +/-0.2% FSW, Vertical: 3% FSH, Amplifier Accuracy +/-1 dB.*Reject (suppression): 0 to 80% full screen height*Units: Inch or millimeter*Transducer Connections: BNC or LEMO*Power Requirements: AC Mains 100-240 VAC, 50-60 Hz*Overall Dimensions:280H×220W×70D mm*Relative Humidity:(20 ~ 95)% RH*Power Supply:DC 9V*Operating Temperature: -10℃ to 50℃*Storage Temperature: -30℃ to 50℃Standard config.Main unitStraight Beam Probe 4 MHz, Φ10Angle Beam Probe 4 MHz, 8 mm×9 mm, 60°Probe CableBattery Module Power AdapterSupporting pillarDatapro SoftwareUSB CablePower CableABS Case

• MFD620C is an advanced digital ultrasonic flaw detector featuring a multi-color TFT LCD and a host of new features to meet challenging inspection requirements.
• It combines powerful flaw detection and measurement capabilities, extensive data storage, and the ability to transfer detailed inspection data to the PC via its high-speed USB port.
• The instrument can be widely used in locating and sizing hidden cracks, voids, disbands, and similar discontinuities in welds, forgings, billets, axles, shafts, tanks and pressure vessels, turbines, and structural components.
• Display:Hi-resolution multi-color TFT LCD with 4 user-selectable brightness control provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness.
• Range:Up to 6000 mm in steel; range selectable in fixed steps or continuously variable. Suitable for use on large work pieces and in high-resolution measurements.
