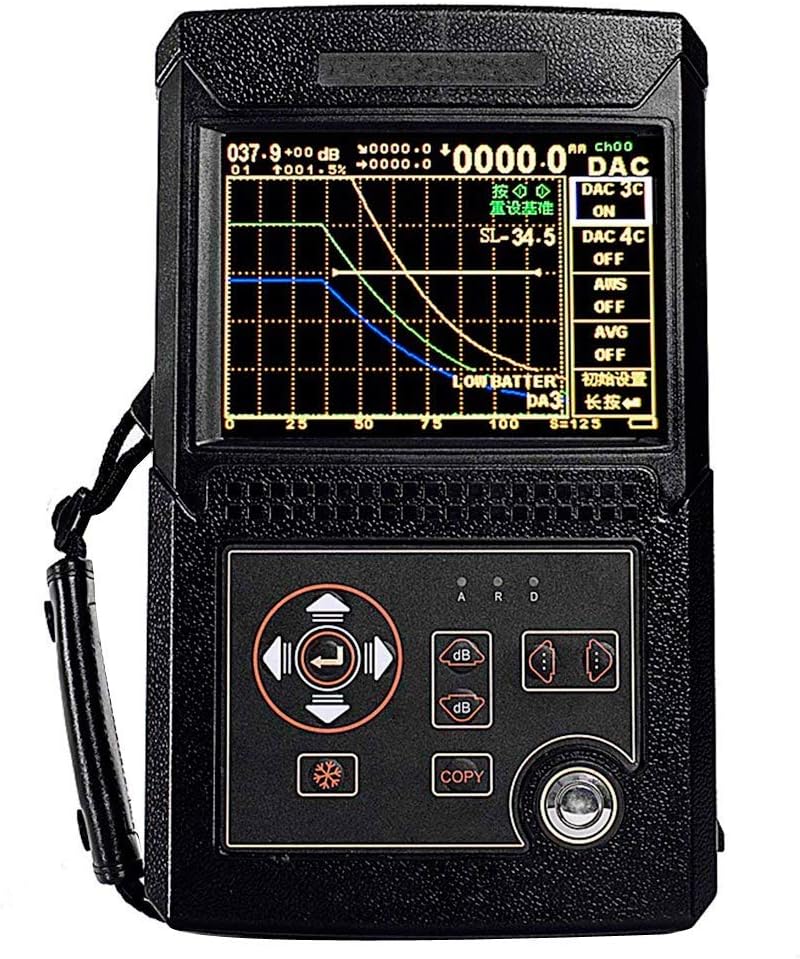

Leeb500 Digital LCD Ultrasonic Flaw Detector Defectoscope Scanning range 0 to 6000mm with Automatic calibration probe DAC AVG curve USB 16 independent inspection channels 980 pcs A-scan images

FeaturesNew design, simple button and easy operation;Rechargeable Li-ion Battery, continuous working more than 15 hours;High quality case and shell: water, dust, and oil proof, good anti-jamming capability;Big bright LCD screen, convenient for detecting in dark or under the sunlight SpecificationScanning range (mm):0 ~ 6000Vertical linearity error:≦ 4%Horizontal linearity error:≦ 0.1%Detection sensitivity margin:≧ 60dB (deep 200mmφ2 flat bottom hole)Dynamic range:≧ 32dBResolution:≧ 34dBFrequency range (MHz):0.5 ~ 20Gain adjustment (dB):0 ~ 110Material speed of sound (m / s):1000 ~ 9999Echo suppression:0 ~ 80%Operating temperature (℃):-27 ~ 70Dimensions (mm):240 * 160 * 40Weight (Kg):1.3

• Leeb500 ultrasonic flaw detector automatic calibration of the probe without manual calculation; ● Automatic generation of DAC and AVG curves using standard test blocks.
• Display the echo parameters (depth D, level P, the distance S, the amplitude H); ●16 independent detecting channels,can enter and store any industrial standards; ●Storage: 980 pieces of A-scan images; ●Four kinds (I, V, U, X type) of weld viewing function, easy judgment of reflecting position.
• Automatically calculate the φ value equivalent defects; ●High sampling rate, low noise; ●Two probes: single crystal probe, double-crystal probe; ●USB interface, PC software is convenient for data exchange, statistical analysis and printing.
• Four (I, V, U, X type) weld type icon functions, intuitively and quickly determine the reflection position; ●Probe automatic calibration ●Automatically form DAC, AVG curve by using standard test block.
• Automatic display of echo related parameters (depth D, level P, distance S, amplitude H); ● 16 independent inspection channels, free to input and store the flaw detection standards of any industry; ● 980 A-scan images can be stored.
