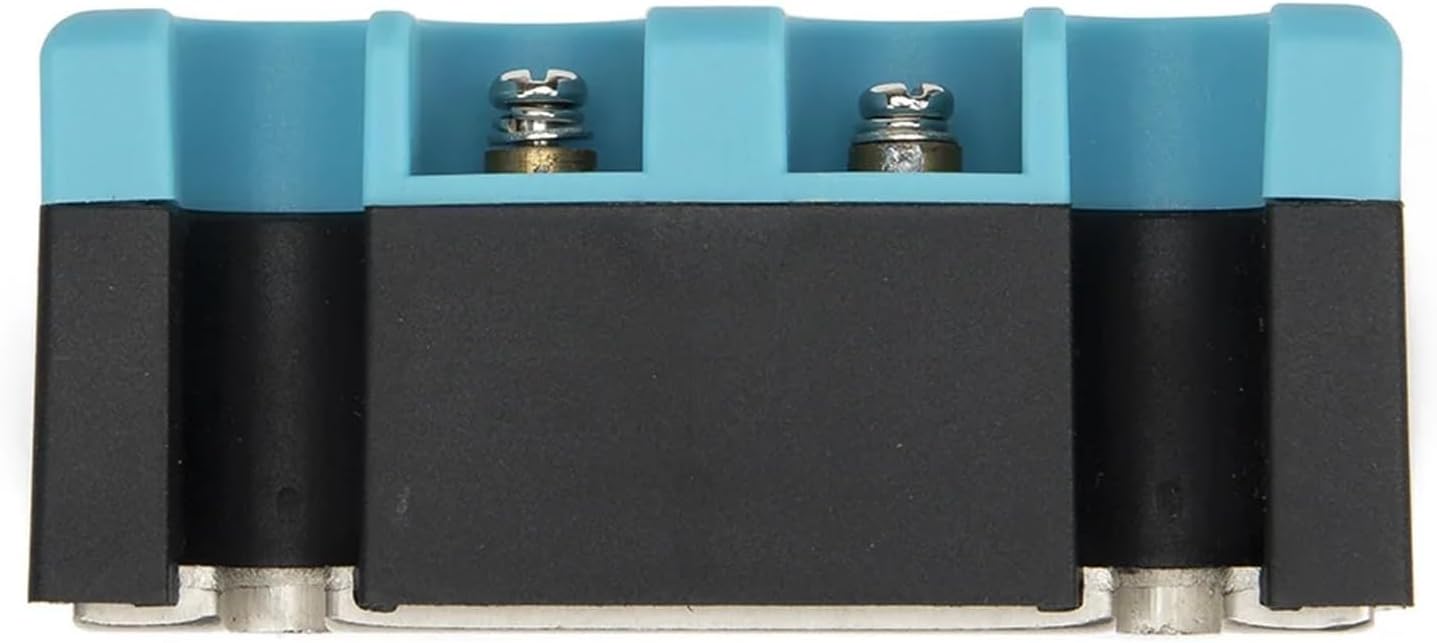

TSR-40AA Three Phase AC to 40A 90-480VAC Solid State Relay/SSR

relayRelayThree phase AC to AC solid state relayModel number and parametersModel numberSame modelLoad currentLoad voltageRelated productTSR-10AAASH-3-AA481010A90-480VacOrderTSR-25AAASH-3-AA482525A90-480VacOrderTSR-40AAASH-3-AA484040A90-480VacVisiting...TSR-60AAASH-3-AA486060A90-480VacOrderTSR-80AAASH-3-AA488080A90-480VacOrderTSR-100AAASH-3-AA48100100A90-480VacOrderTSR-120AA-HASH-3-AA48120120A90-480VacOrderSuitable maximum load powerLoad current (A)1025406080100120380V resistive load power(KW)1.94.87.611.415.21922.8380V inductive load power(KW)0.61.42.23.34.45.56.6GeneralModel numberTSR-AA seriesRated input control voltage70-280VacWattage of VR2.0VA maxRated input control current12mA maxPick-up voltage20VacDrop-out voltage90VacPick-up or drop-out time10ms maxControl typeZero crossing detectionInput-ON indicationLEDOn-state leakage current10mA maxOn-state voltage drop at Imax1.5VacMatched heat sink40A: FHSI04-105 60A: FHSH01-110 80A: FHSH01-150 150A: FHSY01-110Matchedthermal greaseHZ-KS101Dielectric strength1500VAC 50/60Hz for 1 minuteInsulation resistance500 M min at 500 VDCExternal dimensions105x74x33mmTerminalsScrewOperational temperature-20 to 75°COperational humidity95% max no condensationAlias nameTSR-AA series three phase AC to AC SSRAdvantage1. The case is made of PC and PVC with good toughness smooth appearance; HD transparent protective cover can protect the product better for use in a variety of environments.2. Good

• relay
• Relay
• TSR-40AA three phase AC to AC 40A 90-480VAC solid state relay / SSR
