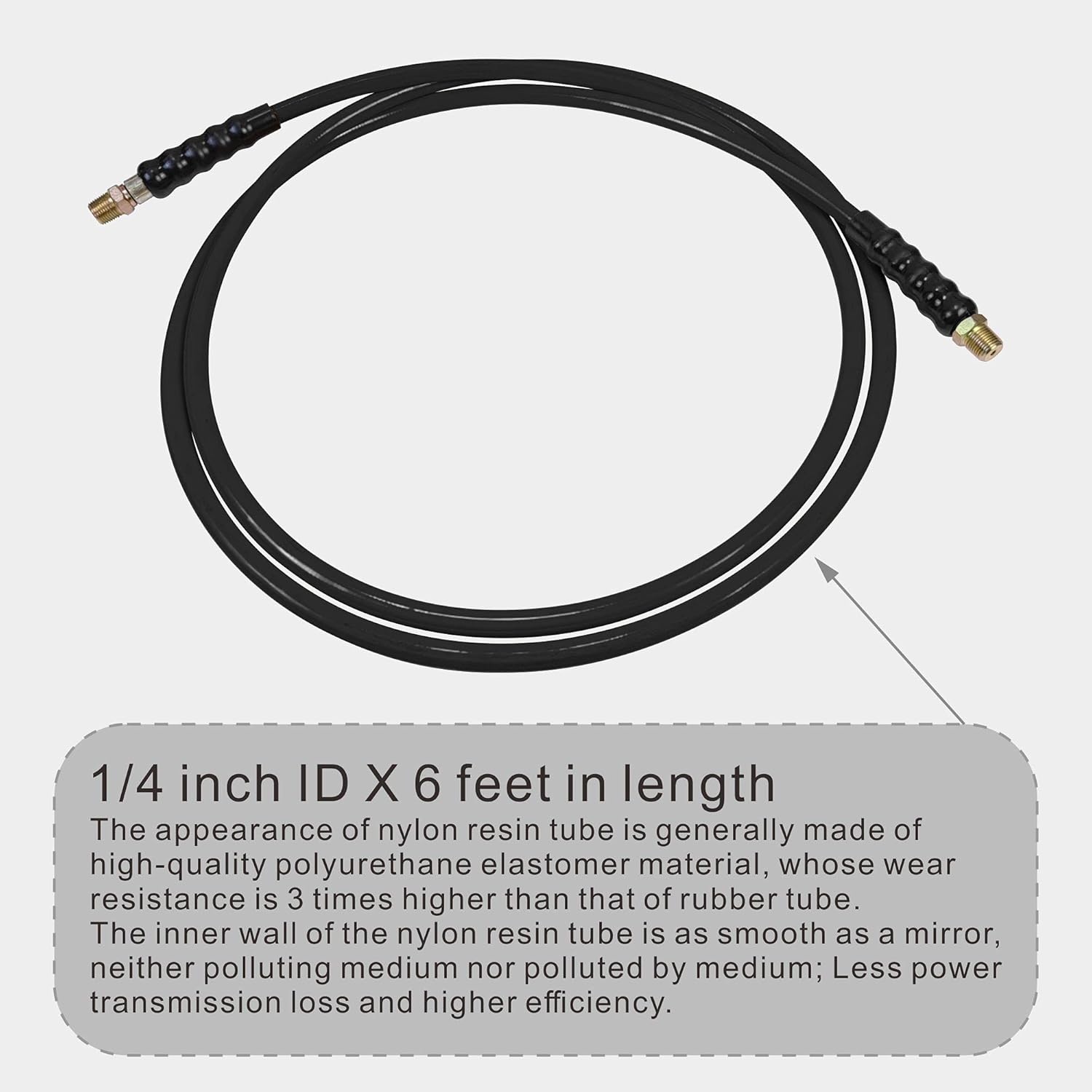

AMZCNC 6' 10000psi High Pressure Hydraulic Hose CH-604 Coupler 3/8" Thread Hydraulic Hose Assembly,1/4" ID x 6 ft (BLACK, 6' 10000 PSI 3/8")

This hydraulic hose is for use with high-pressure applications such as hydraulic jacks and has a maximum working pressure of 10,000 (pounds per square inch) psi. It is 6' in length, with an outer rubber jacket for resistance to abrasion and two layers of steel wire braids for strength and resistance to expansion. It has a rubber strain relief crimped on each end for improved life and durability, with a 3/8" NPTF (National Pipe Thread Fuel) fitting on one end and a CH-604 fitting on the other. Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method to help determine the type of hose needed: S = Size (ID, OD, and length) T = Temperature (maximum and minimum temperatures of material being transported) A = Application (industry or process) M = Material (to be conveyed, type and concentration) P = Pressure (maximum working pressure) E = Ends (type of end connectors or couplings on hose) D = Delivery method (volume and velocity) The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

• Maximum working pressure of 10,000 psi
• Heavy duty rubber jacket for resistance to abrasion
• Two layers of steel wire braids for strength and resistance to expansion
• Rubber strain relief crimped on both ends for improved life and durability
• 3/8" NPTF x CH-604 fittings
